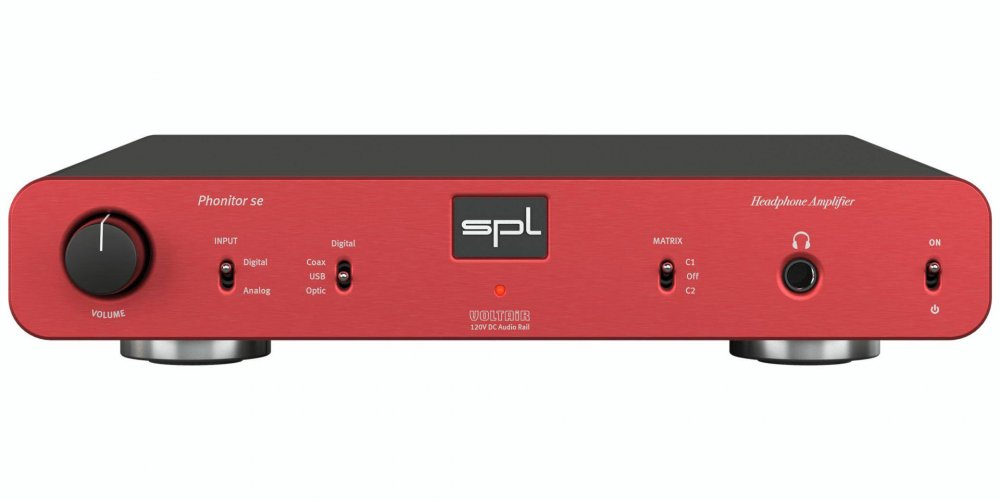

SPL Phonitor se (Red)
UPC/EAN #4260149322586
MPN #1984
Headphone amplifier with Phonitor Matrix, RCA analog inputs
The Phonitor se has the same audio signal amplification as its bigger brothers Phonitor x and Phonitor xe and therefore offers the same sound experience. The DAC768xs is optionally available.
Volume & Source Selection
The volume is adjusted with a milled all-aluminium rotary knob. The Alps RK27 "Big Blue" potentiometer provides a pleasant "spoon in honey" turning feeling.
In addition to an analog source, three other digital sources can be connected to the Phonitor se with the optional DAC.
Headphone Output with Power
The Phonitor se offers a 6.35 mm jack for connecting headphones with jack plug.
Up to 2 x 5 watts of output power is available at this socket. This allows even very power-hungry headphones such as magnetostats or electrostats to be driven effortlessly.
The Revolution
in the headphone amplifier is the Phonitor Matrix, with switchable crossfeed, that allows you to listen to music through headphones with the sound experience of listening through speakers.
The tiring super stereo effect and the exaggerated reproduction of reverberation and effects are a thing of the past.
Enjoy your music without fatigue and exactly as it should be heard.
The Phonitor Matrix in its largest expansion stage has three setting parameters: Crossfeed, Speaker Angle and Center Level.
In Phonitor se the Center Level is preset to -1 dB and the speaker placement Angle to 30. These are the most common values.
The Crossfeed function determines the crosstalk of the channels, the so-called interaural level difference. There are two switch positions C1 and C2 for the intensity of the Crossfeed.

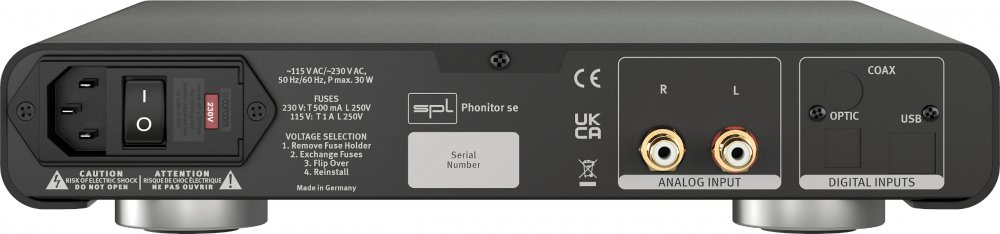

Connections
The Phonitor se is equipped with gold-plated RCA sockets for the analog input.
The optional DAC768xs adds three more digital sources: USB Coax and Optical.
Features
High-Power Headphone Output: Delivers ample power to drive even demanding headphones with ease.Phonitor Matrix Technology: Simulates speaker-like listening on headphones for a natural audio experience.Optional Digital-to-Analog Converter (DAC): Allows connection to digital sources for versatile playback options.Premium Volume Control: Equipped with a smooth, high-quality rotary knob for precise volume adjustments.Solid Build Quality: Features a robust design with a durable aluminum front panel.
Specifications
Analog Input
? Input type: RCA
? Maximum input gain: 32.5 dBu
? Input impedance: 20 k?
Digital Inputs (Optional DAC768xs Module)
? Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
? Optical SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96 kHz, Glass fibre <1m: 176.4/192 kHz
? USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
? USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
? 0 dBFS calibrated to: 15 dBu
Standard Headphones Output (6.35 mm / 1/4" TRS Jack)
? Wiring: Tip = Left, Ring = Right, Sleeve = GND
? Source impedance: 0.18 ?
? Damping factor (40 ?): 180
? Frequency range (0 dBu): 10 Hz " 100 kHz
? Crosstalk (1 kHz, 0 dBu): -90 dB
? THD + N (1 kHz, 0 dBu): 0.00091 %
? Noise (A-weighted): -103 dBu
? Output power (1 kHz, 1% THD, 250 ?): 2 x 5 W
? Output power (1 kHz, 1% THD, 32 ?): 2 x 1 W
? Dynamic range: 135.5 dB
Internal Linear Power Supply
? Shielded toroidal transformer
? Operating voltage for analog audio: +/- 60 V
? Operating voltage for relays and LEDs: +12 V
Mains Power Supply
? Mains voltage (selectable): 230 V AC / 50 Hz; 115 V AC / 60 Hz
? Fuse for 230 V: T 0.5 A
? Fuse for 115 V: T 1 A
? Power consumption: Max. 30 VA
? Stand-by power consumption: < 0.3 W
Dimensions & Weight
? W x H x D (width x height incl. feet x depth): 278 x 57 x 300 mm / 11 x 2.24 x 11.81 inch
? Unit weight: 2.8 kg / 6.17 lbs
? Shipping weight (incl. packaging): 5 kg / 11.02 lbs
