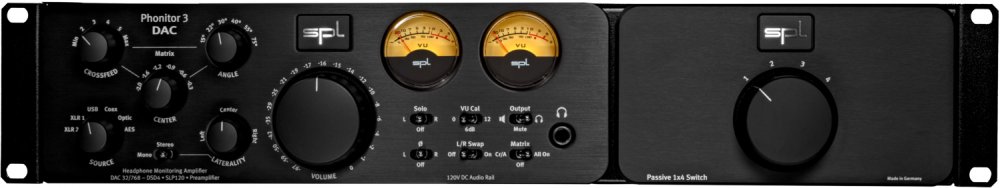

SPL Phonitor 3 DAC with Expansion Rack
UPC/EAN #4260149320612
MPN #2086
Headphone amplifier, monitoring controller and DAC with 120V technology with 19" rack housing and connectivity extender
Phonitor 3 DAC is not only the ultimate headphone amplifier and monitoring controller with 120V technology - the integrated DAC makes it the perfect monitoring centerpiece for demanding producers as well as sound and mastering engineers working with digital sources or in the DAW.
Whether if USB, AES/EBU or S/PDIF - the integrated DAC with analog SLP120 converts digital PCM audio signals with a resolution of 32 bit and a sampling rate of up to 768 kHz. It converts DSD signals with a resolution of up to DSD256.
On the analog side, the Phonitor 3 DAC, based on the SPL 120V technology, offers the same monitoring quality as the big SPL mastering consoles - on loudspeakers and headphones.
The analog Phonitor Matrix allows mixing and mastering on headphones in the highest quality - with the same spatial perception of the stereo stage as on loudspeakers.
Specifications
Analog inputs & outputs; XLR (balanced)
Maximum input & output gain: 32.5 dBu
Input impedance (XLR): 20 k ohms
Output impedance (XLR): 75 ohms
Common mode rejection (XLR): -82 dB
Frequency range: 10 Hz - 100 kHz
THD+N (1 kHz, 0 dBu): 0.0009 %
Noise (A-weighted): -102 dBu
Crosstalk (1 kHz): -95 dB
Dynamic range: 134.5 dB
Digitale Einga?nge: DAC768 (optional)
AES/EBU (XLR), PCM-Abtastraten: 44.1/48/88.2/96/176.4/192 kHz
Coaxial SPDIF (Cinch), PCM-Abtastraten: 44.1/48/88.2/96/176.4/192 kHz
Optisch SPDIF (Toslink F06), PCM-Abtastraten: 44.1/48/88.2/96/176.4/192 kHz
USB (B), PCM-Abtastraten: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), Abtastraten: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBfs kalibriert auf: 15 dBu
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 ohm
Damping factor (40 ohms): 180
Frequency range: 10 Hz " 100 kHz
Crosstalk (1 kHz): -91 dB
THD +N (1 kHz, 0 dBu): 0.0003 %
Noise (A-weighted): -102 dBu
Output power (1 kHz, 1% THD, 250 ohms): 2 x 5 W
Output power (1 kHz, 1% THD, 32 ohms): 2 x 1 W
Dynamic range: 134.5 dB
