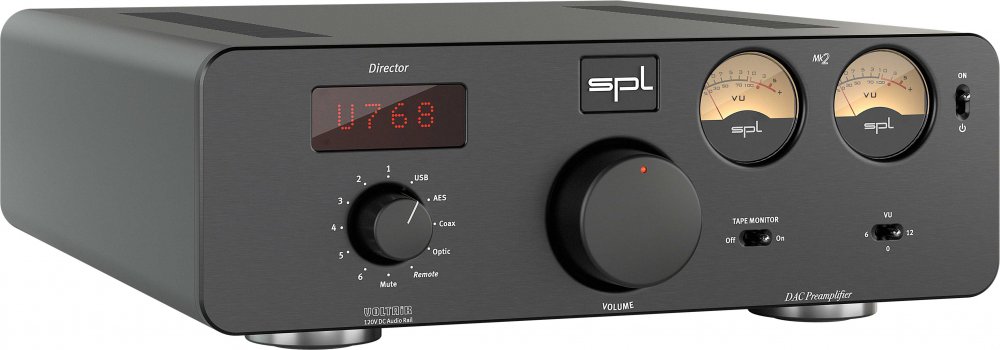

SPL Director Mk2 (Black)
MPN #1840
The Director Mk2 is the derivative of our reference preamplifier Director
The all new high voltage digital to analog converter now supports 32 bit and sample rates up to 768kHz as well as DSD4.
Fans of analog tape machines or external audio processing can insert their beloved gear in the Tape Monitor loop.
Now there is a total of six analog inputs. Two of which are balanced with XLR connectors.
The housing has grown in height to provide space for the big aluminum volume control with marker LED and two mechanical VU meters.
Features
Director Mk2 (official wording and writing)DA converter and preamplifier2U housing120V VOLTAiR DAC filter output and gain staging6 analog inputs (2x balanced, 4x unbalanced)4 digital inputs: AES/EBU, USB, COAX, OPTICAL (DAC 32 bit, 768 kHz, DSD4/DSD256)2 VU metersRotary switch for input selectionTape Monitor loop
Specifications
Analog Stereo Inputs
6 analog stereo inputs
2 x XLR, balanced (10 kOhm)
4 x RCA, unbalanced (47 kOhm)
Max. input level: +32,5 dBu
Digital Inputs
4 digital inputs
AES/EBU (XLR), balanced
Coaxial SPDIF (RCA)
Optical TOSLINK (F06)
USB (B)
0 dBFS = 15 dBu
Converter Chip AK4490-Velvet Sound
Sample Rates 32 Bit
Encoded PCM (kHz): 44.1, 48 , 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768
DSD: DSD1 (DSD64), DSD2 (DSD128), DSD4 (DSD256)
Outputs
2 analog stereo outputs
Neutrik XLR, balanced, Pin 2 = (+)
RCA, unbalanced (Direct Out)
Impedance: 75 ohms (balanced)
max. output level 32,5 dBu
Measurements
Frequency range (analog): 10 Hz (-0.1 dB), 200 kHz (-1.2 dB)
Crosstalk at 1 kHz: -108 dB (analog); -108 dB (digital)
THD: 0.00992 % (analog 0 dBu); 0.0014 % (digital -1 dBfs)
Noise (A-weighted): -102.5 dB (analog); -100.2 dB (digital)
Dynamic range: 135 dB (analog); 115.2 dB (digital)
Internal Voltages
Analog: +/- 60 V
Digital: + 7 V and + 3.3 V
Power Supply
Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz
Fuses: 230 V: T 500 mA; 115 V: T 1 A
Power consumption: max. 40 VA
Standby power consumption: 0.7 W
Dimensions (incl. feet)
278 mm W x 100 mm H x 330 mm D
10.95 in W x 3.94 in H x 13 in D
Weight
4.55 kg; 10.03 lbs (unit only)
5.7 kg; 12.57 lbs (shipping)
