UPC/EAN #4260149322234     MPN #SPLBIG

$839.00

Financing available
Free shipping in Canada. Conditions

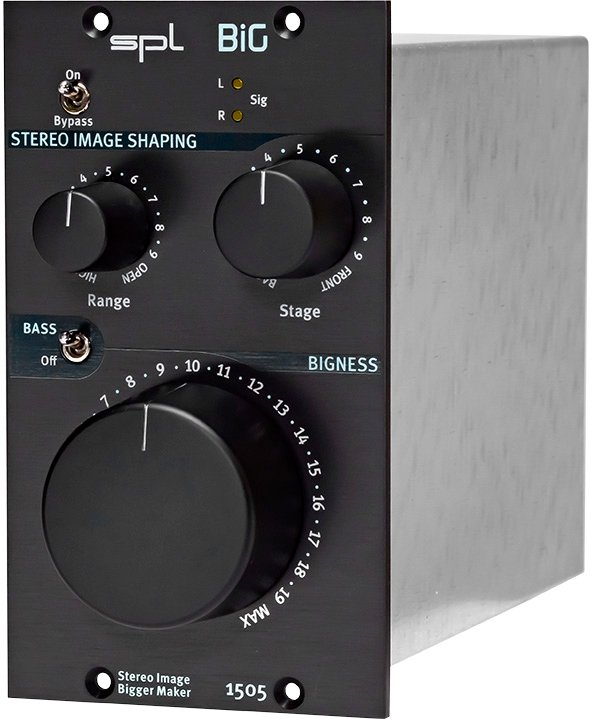

500 series double-slot module for stereo stage processing



BiG is special. BiG is unique.
BiG enlarges the stereo image in a new manner and opens up new creative ways of sound shaping. Intuitive with just three controls.

On/Bypass
The On/Bypass switch activates (On) or deactivates (Bypass) the module. This allows you to quickly switch between processed and unprocessed signal.

Signal LEDs
The signal LEDs (Sig) indicate whether an audio signal is present at the input of the respective channel. (With a level higher than -20 dBu)

Stereo Image Shaping

Range
With the Range control, the frequency Range which should be processed can be selected.

Stage
With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage.

BIGNESS
The huge BIGNESS control adjusts the intensity of the STEREO IMAGE SHAPING.

BASS
The BASS/Off switch can be used to activate (BASS) or deactivate (Off) an additional bass boost following the BIGNESS section. The bass boost is performed by a passive filter implemented in a similar circuit to
the one used in the AirBass function of the SPL IRON Mastering Compressor.

Sounds good
With all SPL devices we develop not only according to plan, but also by ear. All important components are installed on the circuit boards using Through-hole technology. This way we can ensure that we can use the best sounding components.
Input & Output; balanced
Maximum input & output gain : 21 dBu
Input impedance : 20 k?
Output impedance : 150 ?
Common mode rejection : > 82 dB
Frequency range (-3 dB) : 10 Hz " 100kHz
THD & N (0 dBu, 10 Hz " 22 kHz) : 0.03 %
Noise (A-weighted) : -92.3 dBu
Dynamic range : 113 dB

Dimensions & Weight
Double-spaced module for 500 Series
Unit weight : 0.9 kg - 1.98 lbs
Shipping weight (incl. packaging) : 1.05 kg - 2.31 lbs
