UPC/EAN #850032705059     MPN #9295

$3570.00

Financing available
Free shipping in Canada. Conditions

Full bandwidth digital transmission, gain forward architecture, timecode generator, 32-bit float recording, Worldwide tuning range of 470 MHz - 1525 MHz, Bluetooth control

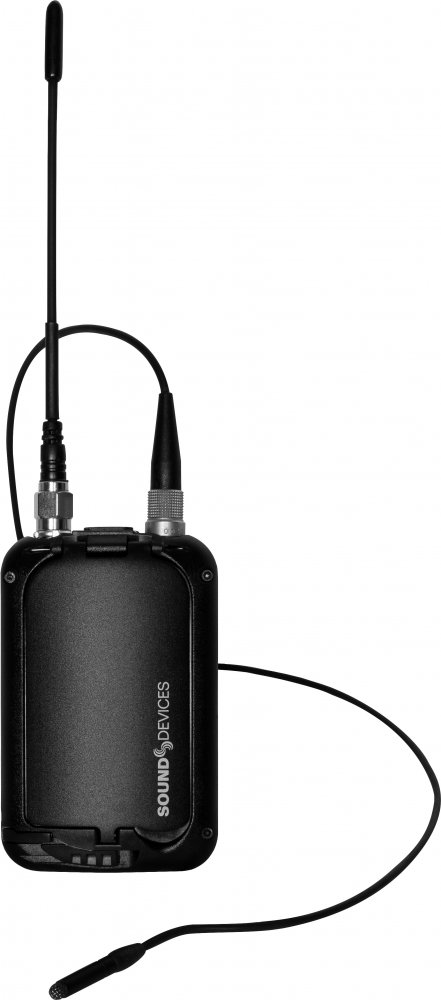

The A20-Mini digital wireless transmitter combines legendary British audio quality with the best of American design. The sleek, rounded form fits perfectly into body contours and underneath tight clothing.

The A20-Mini incorporates state-of-the-art features such as full remote control via the A20-Remote app, GainForward Architecture, internal 32-bit float recording, a worldwide tuning range of 470 MHz 694 MHz, and more. The A20-Mini is fully compatible with Sound Devices existing A10 Digital Wireless System.

A20-Remote is the A20-Minis companion app and is available on iOS, iPadOS, and Android phones and tablets with Bluetooth 5.2. The intuitive interface allows sound professionals to control RF transmit frequency and power, turn the Mini on and off, start and stop recording, mute the microphone, format the media, and more. The A20-Minis internal, high-efficiency 2.4 GHz antenna ensures excellent Bluetooth range. The A20-Remote app offers easy adjustment of transmitter settings after the unit has been placed on talent, eliminating unnecessary downtime on set.

All transmitters can be powered up and down simultaneously or made to start and stop recording with a single tap from your smartphone or tablet. Use A20-Remote to create custom groups with selected transmitters or use the default all-transmitter group. You can also use groups to change RF Power, Mode, Modulation, Mute Mic, Format Media, and LED settings on multiple A20-Minis at once. The A20-Mini's high-efficiency internal 2.4 GHz antenna ensures excellent Bluetooth range.
  • Full remote control of the Mini via A20-Remote companion app. Control frequency and RF power, turn the Mini on and off, start and stop recording, mute the microphone, format the media, view the status of all your Minis, and more.
  • GainForward Architecture: set the Minis gain levels via trim control (with an 8-Series) or at the A10-RX (other mixers).
  • Full 10 Hz 20 kHz audio bandwidth; 100% digital RF modulation and transmission. Same excellent range and audio quality as the A10-TX.
  • Worldwide tuning range of 470 MHz - 1525 MHz with the A20-RX & A20-Nexus
  • Built-in 32-bit float, 48kHz recorder with 64 GB storage for over 80 hours of record time.
  • Offload recorded WAV files via USB-C and optionally conform/convert with SD-Utility.

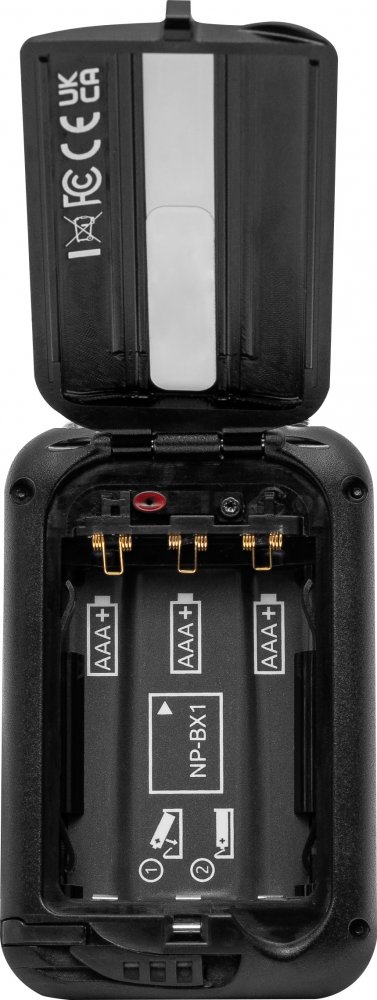

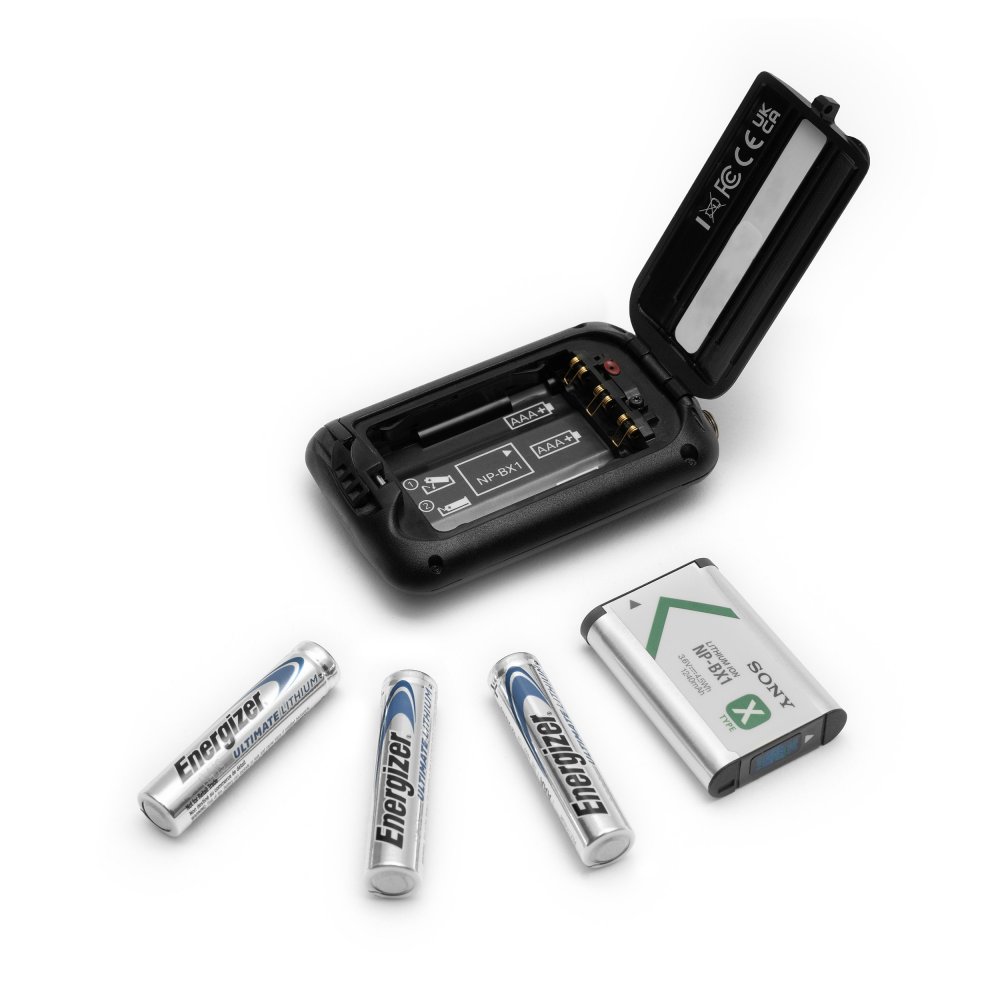

  • Powering via AAA or NP-BX1 (Li-Ion) with built-in charging for NP-BX1 Li-Ion battery.
  • Internal supercapacitor-powered timecode generator can be jammed via USB-C.
  • Water-resistant with a rounded form factor.
  • View more products from Sound Devices
