Sound Devices A-FILTER
UPC/EAN #854454006909
MPN #9818

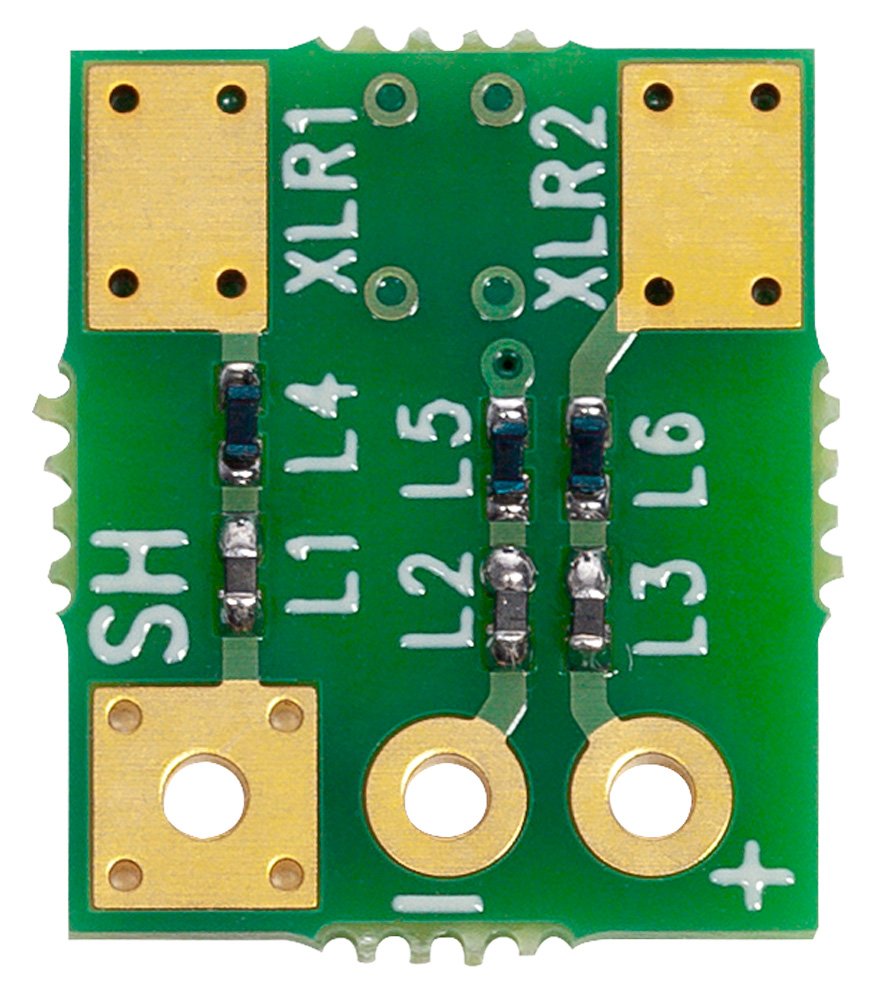

Accessory PC board that reduces RF interference, square for XLR
The A-FILTER for Balanced Microphones adds RF immunity for microphones, specifically when connected to digital wireless transmitters like the A10-TX.
The instructions below describe how to mount the A-FILTER for Balanced Microphones into a female XLR connector.
Before starting please make note of the following:
The A-FILTER should be placed as close to the microphone as possible. The benefit of the RF filter is significantly reduced if placed downstream of the microphone connector.
Make certain to use high-quality XLR connectors. Inexpensive connectors, including many painted XLR connectors, do not provide adequate electrical contact between the connector shell and the microphone connector.
The A-FILTER does not degrade the audio signal, affect phantom voltage, or draw any power in any way.
Supplies Required
The A-FILTER RF Filter for Balanced Microphone.
High quality female XLR connector. The circuit board was designed with Neutrik NC3FX connectors.
AC-BALXLR (blue cap) is not compatible with the A-FILTER. AC-BALXLR-2 (black cap) already has the A-FILTER installed.
Solder and tools for cable assembly.
Note: Installing the A-FILTER assumes knowledge of proper cable soldering and termination.
Step 1

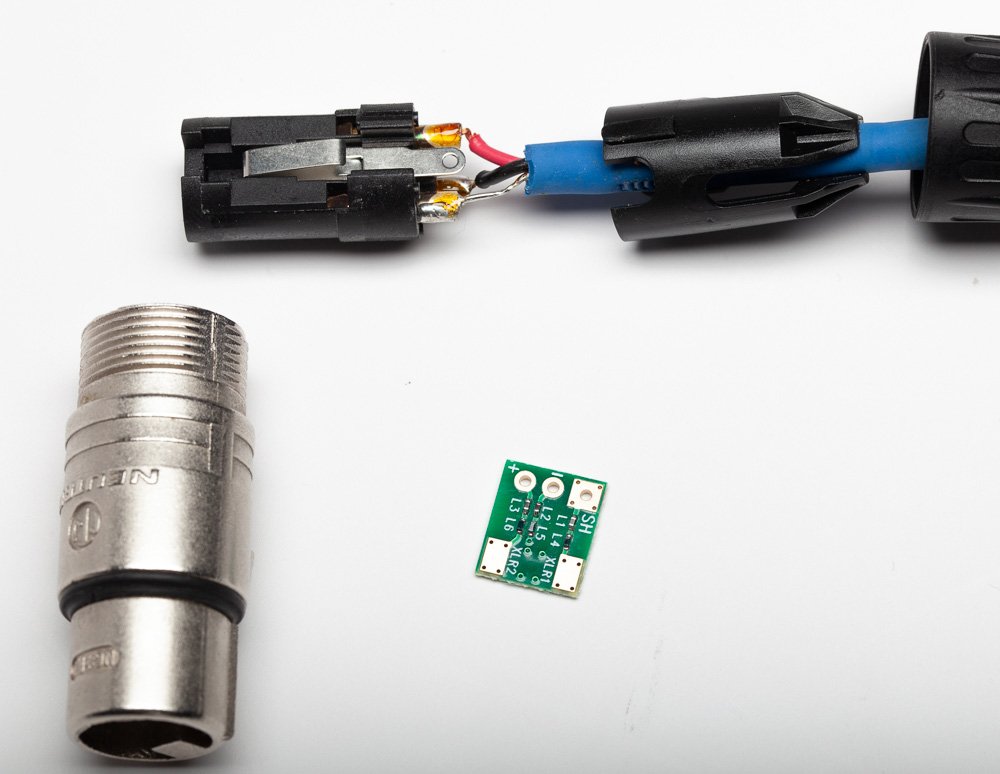

Disconnect the XLR female connector and cleanly unsolder the existing cable from the insert. If this is a new cable assembly, this step is not necessary.
Step 2
Solder the A-FILTER circuit board to the cable. Take note of the polarity labeled on the circuit board. Solder the ground connection to the square thru-hole pad.
Step 3
Solder the A-FILTER circuit board to the connector insert. Make certain to align the connector pins with the labeled solder pads on the board.
Connect pin-1 of the connector to the insert's shell tab.
Step 4

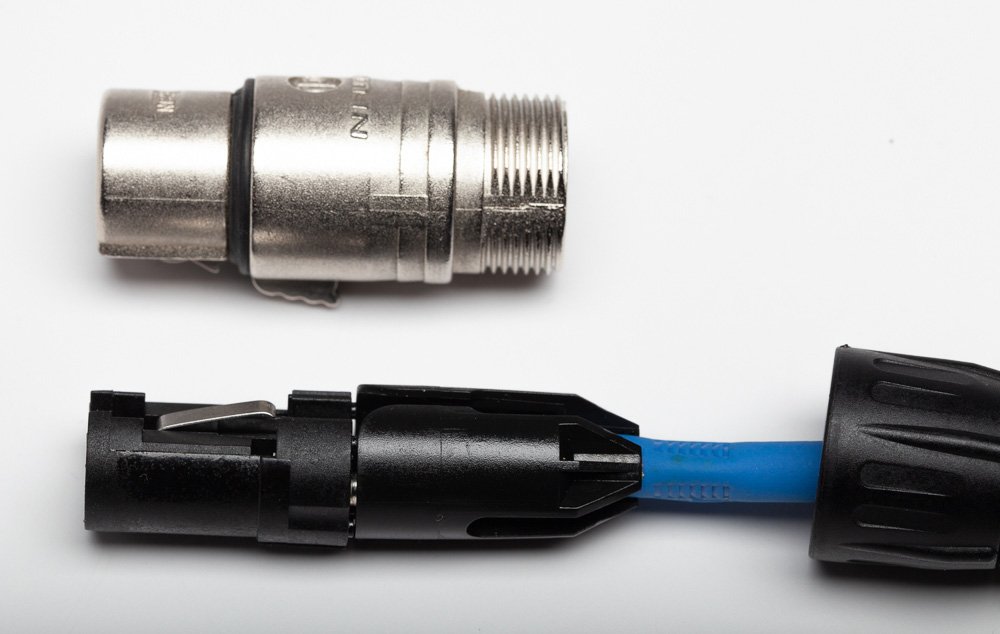

Carefully slide the chuck over the A-FILTER circuit board.
Step 5

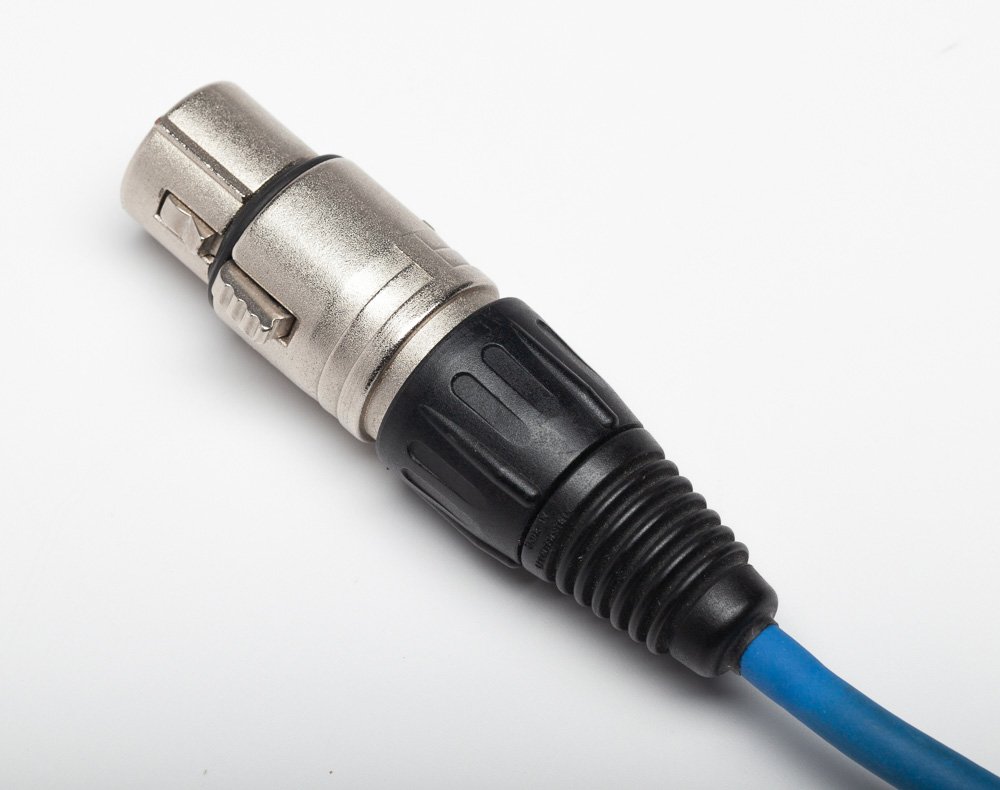

Place the connector housing and finish the installation by sliding the bushing to the housing and turning to secure.
Specifications
Requires soldering onto the female end of a straight XLR cableFor use with balanced microphonesConnect the XLR containing the A-FILTER directly to the microphoneReduces unwanted RF signals by ~40 dBNot compatible with the AC-BALXLR, AC-BALXLR-2, and AC-BALXLR-3
