Sony UWP-D26/14
MPN #UWPD26/14

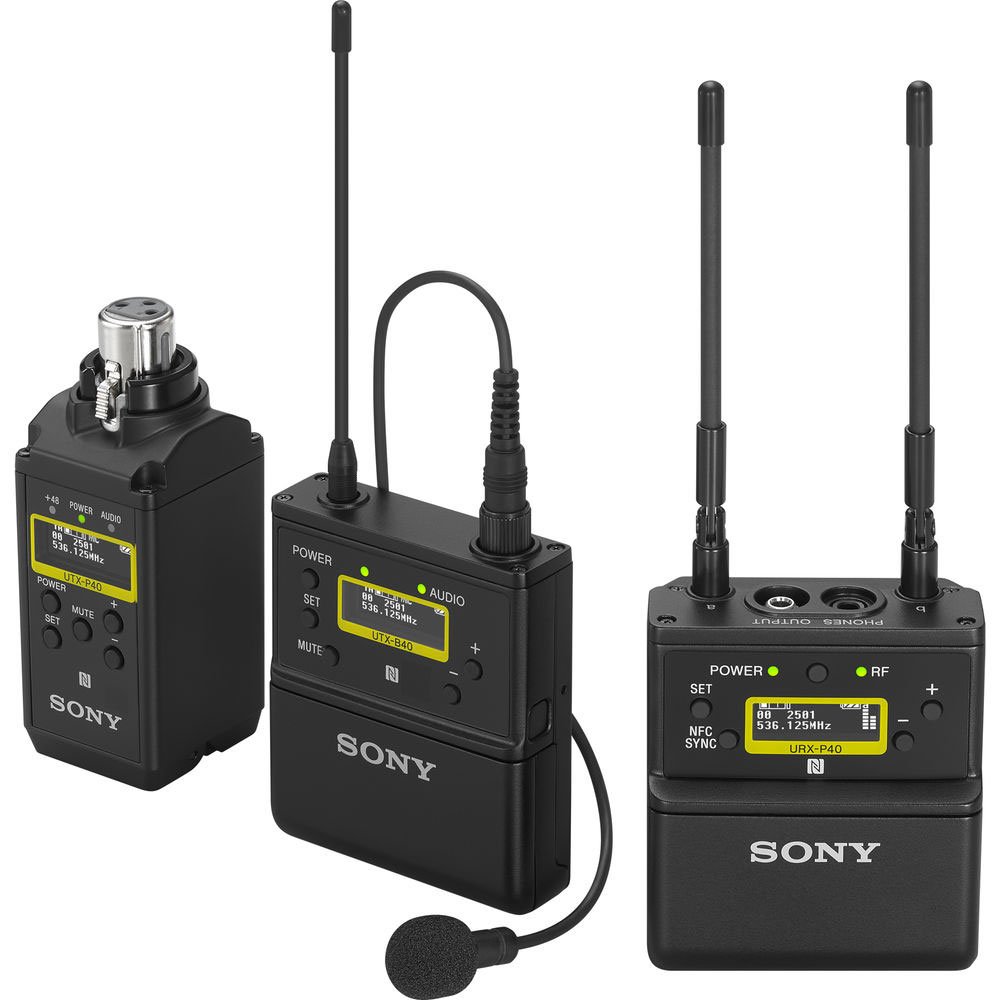

Bodypack Transmitter and XLR plug-on Wireless Microphone Transmitter Package (UC14: 470 to 542 MHz)
Digital audio processing for high quality sound
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.
Fast, easy frequency setting
Sony?s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.
Seamless camcorder integration
Integration with compatible* Sony camcorders (requires SMAD-P5 Multi Interface shoe adaptor) displays audio information such as RF level meter, audio mute status and transmitter low battery alert in the camera?s viewfinder. Via the SMAD-P5, audio signals are transmitted from receiver to camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with synchronised power on/off between camera and receiver for more effective power management.
* See details on SMAD-P5 for compatibility information
Light, compact design
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver?s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.
Features
High quality sound with Sony digital audio processingNFC SYNC function for quick and easy secure channel settingTrue double tuner diversity for stable signal receptionAuto gain mode volume control+15 dB gain volume boost mode for off-mic audioLine inputChannel memory for fast switching between receiver frequencies for two transmitter operationTransmitter frequency sent to receiver for matching multiple receivers to one transmitterCompatibility with Sony WL-800/UWP seriesHigh visibility OLED display, ideal for indoor/outdoor useDigital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)*
Specifications

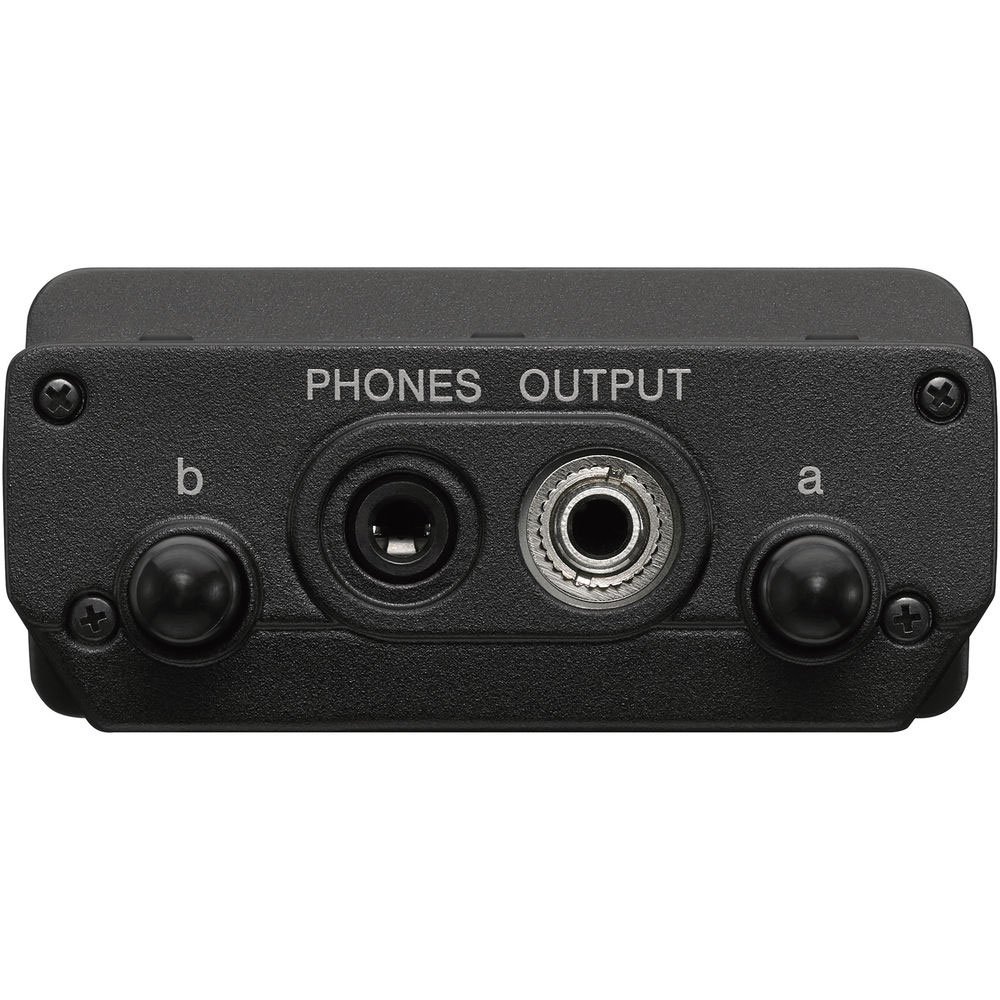

URX-P40 portable receiver
Oscillator Type: Crystal-controlled PLL synthesizerReception Type: True diversity methodAntenna Type: 1/4 ? wavelength wire antenna (angle-adjustable)Carrier Frequencies: 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)Frequency Response: 23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (typical) (J model)Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)Audio Delay: Approx. 0.35 ms (analog output), Approx. 0.24 ms (digital output)Audio Output Connector: 3.5mm diameter 3-pole locking mini jack, , external connectionAudio Output Level: "60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level), "20 dBFS (external connection, digital output, 0 dB audio output level), "50 dBFS (external connection, analog output, 0 dB audio output level)Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)Headphone Output Connector: 3.5 mm diameter mini jackHeadphone Output Level: Max. 10mW (16-ohm)Tone Signal FrequencyIn UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHzDisplay: OLEDPower RequirementsDC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)Battery Life*: Approx. six hours, *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFFOperating Temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage/Transport Temperature: "20 °C to +55 °C ("4 °F to +131 °F)Dimensions: 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)Mass: Approx. 131 g (4.6 oz) (excluding batteries)

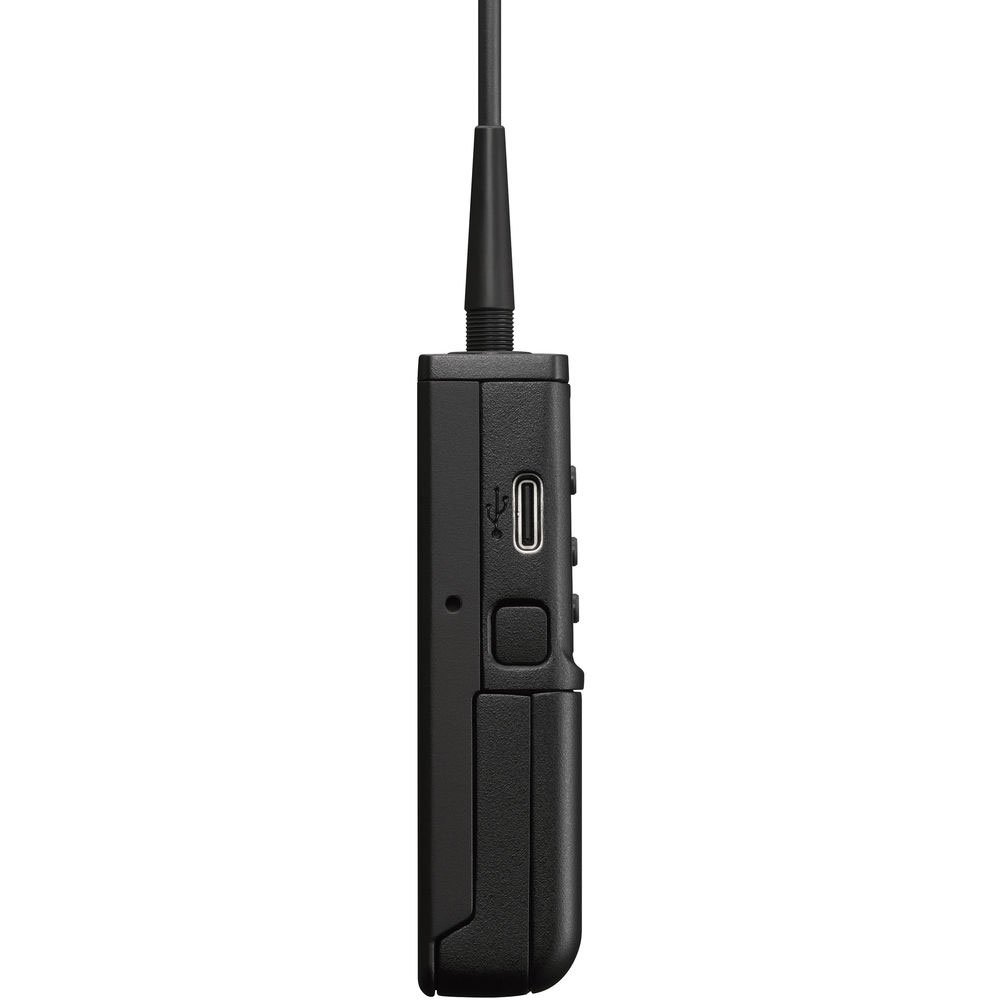

UTX-B40 bodypack transmitter
Oscillator Type: Crystal-controlled PLL synthesizerAntenna Type: 1/4 ? wave length wire antennaCarrier Frequencies: 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)RF Output Power: 30 mW/5 mW selectable (UC, U, CE, LA, CN models), 10 mW/2 mW selectable (J, E, KR models)Capsule Type: Elect retcondenserDirectivity: Omni-directionalInput Connector: 3.5 mm diameter 3-pole locking mini jackReference Audio Input Level: "60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation), +4 dBu (LINE input )Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)Frequency Response: 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (Typical) (J model)Signal-to-Noise Ratio: 60 dB ("60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.), 96 dB (GAIN MODE set to NORMAL, max.)Distortion: 0.9% or less ("60 dBV, 1 kHz input)Audio Delay: Approx. 0.35 msTone Signal Frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHzDisplay: OLEDPower Requirements: DC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)Battery life*: Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models), Approx. 10 hours with output power of 10 mW (J, E, KR models), * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage/Transport Temperature: -20 °C to +55 °C ("4 °F to +131 °F)Dimensions: 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)Mass: Approx. 83 g (2.9 oz) (excluding batteries)
UTX-P40 XLR plug-on transmitter
Oscillator Type: Crystal-controlled PLL synthesizerCarrier Frequencies: 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)RF Output Power: 40 mW/5 mW selectable (UC, U, LA models), 30 mW/5 mW selectable (CE, CN models), 10 mW/2 mW selectable (J, E, KR models)Input Connector: XLR-3-11C type (female)Reference Audio Input Level: "60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)Audio Attenuator Adjustment Range: 0 dB to 48 dB (3 dB steps)Frequency Response: 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (Typical) (J model)Signal-to-Noise Ratio: 60 dB ("60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.), 96 dB (GAIN MODE set to NORMAL, max.)Distortion: 0.9% or less ("60 dBV, 1 kHz input)Audio Delay: Approx. 0.35 msTone Signal Frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHzDisplay: OLEDPower Requirements: DC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)Battery Life*: During +48V OFF: Approx. 7 hours with output power of 40 mW (UC, U, LA models), Approx. 8 hours with output power of 30 mW (CE, CN models), Approx. 10 hours with output power of 10 mW (J, E, KR models)During +48V ON and ECM-673 connection: Approx. 6 hours with output power of 40 mW (UC, U, LA models), Approx. 6 hours with output power of 30 mW (CE, CN models), Approx. 7 hours with output power of 10 mW (J, E, KR models), * Battery life has been measured with two Sony L R6/AA size alkaline batteries at 25 °C (77 °F).Operating Temperature: 0 °C t o 50 °C (32 °F to 122 °F)Storage/Transport Temperature: "20 °C to +55 °C ("4 °F to +131 °F)Dimensions: 38 x 98 x 38 mm (1 1/2 x 3 7/8 x 1 1/2 in.) (W / H / D) (including the audio input connector)Mass: Approx. 139 g (4.9 oz) (excluding batteries)
