Sony URX-S03D/25
MPN #URXS03D/25
$1649.99
Save 26.2%, MSRP $2236.83
Dual-channel portable slot-in wireless receiver (UC25: 536 to 608 MHz)
Digital Audio Processing for high quality sound

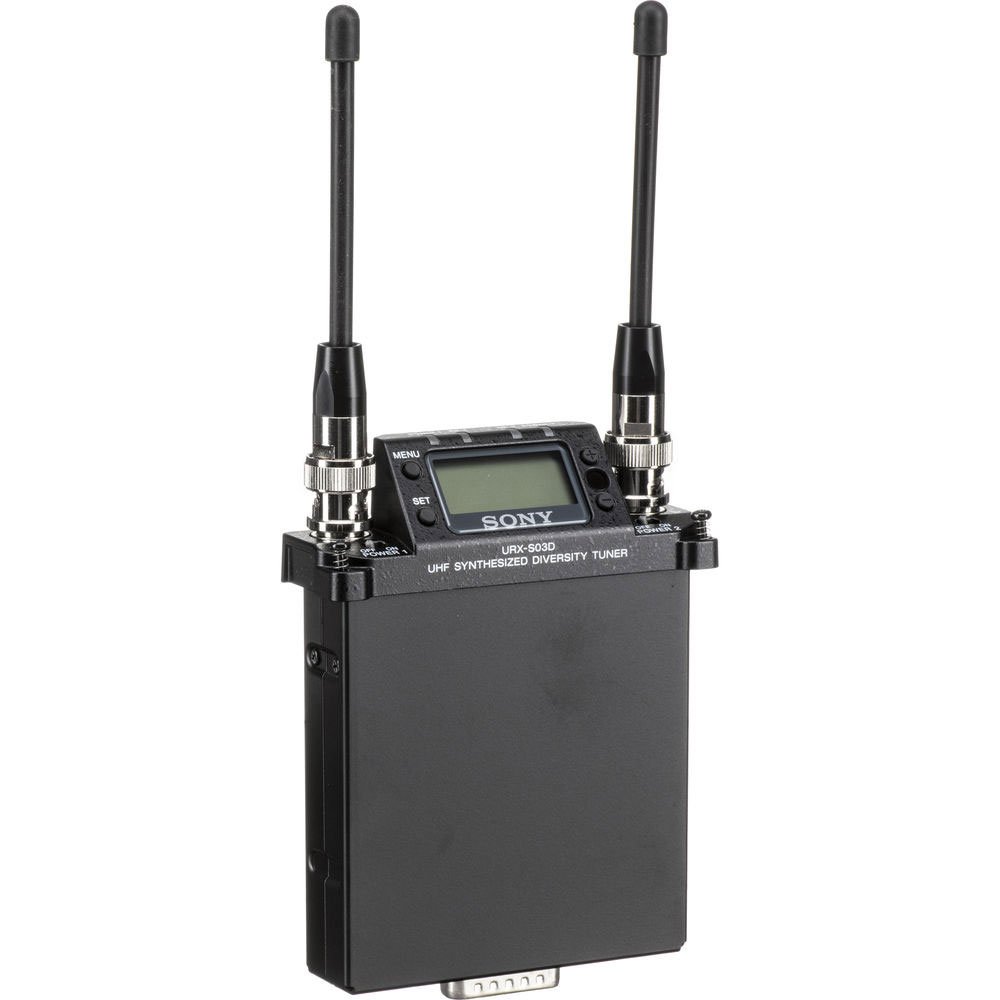

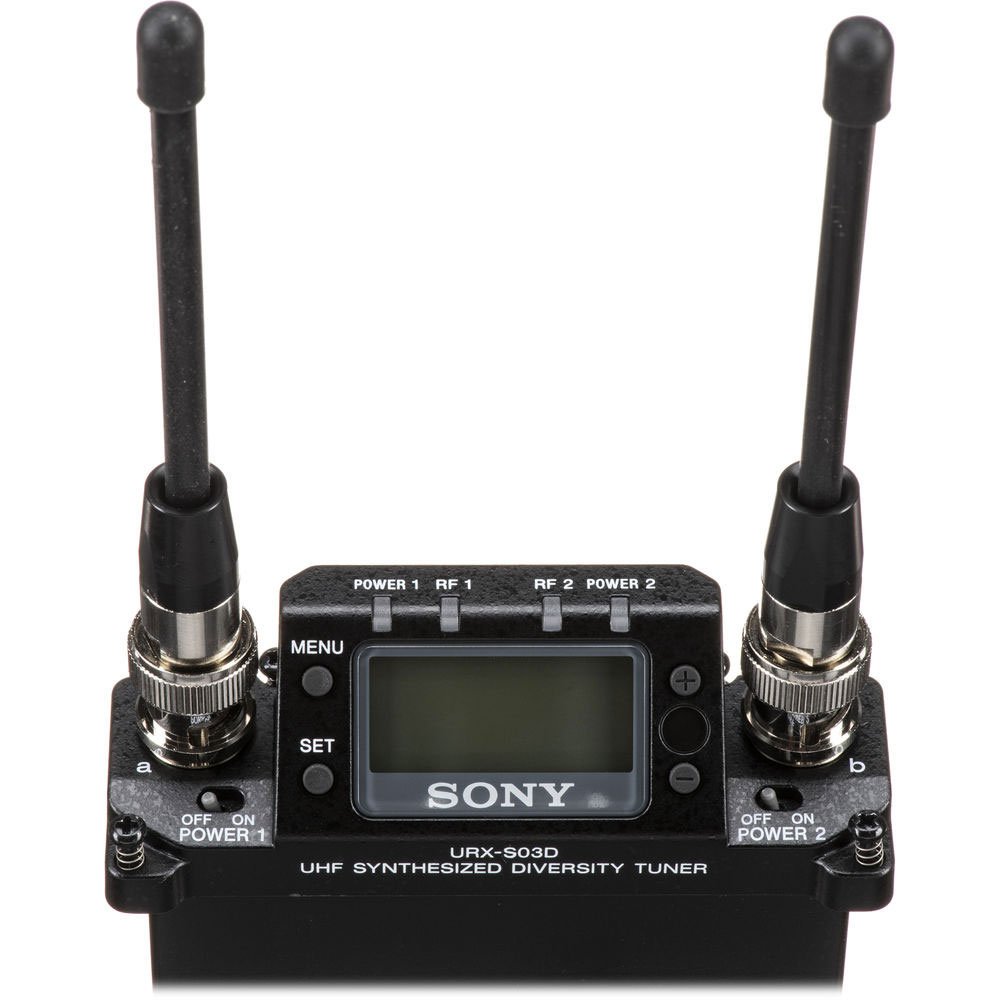

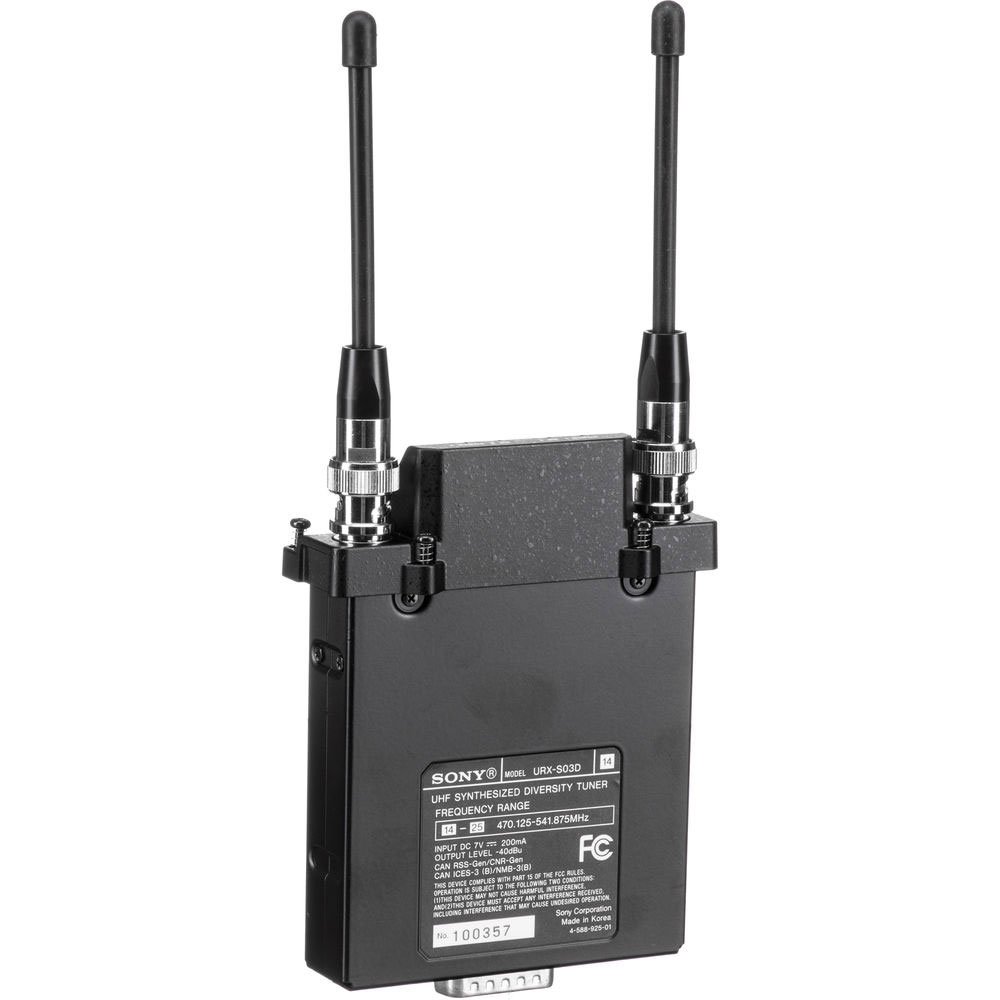

The URX-S03D is the first two-channel portable receiver in the UWP-D Series that fits directly in the slot of Sony XDCAM and HDCAM camcorders. Working with the UTX-B03HR belt-pack transmitter, the system features easy channel setting functions, advanced functionality for stable RF transmission and Digital Audio Processing technology ensures high-quality sound. With advanced usability with Sony XDCAM and HDCAM camcorders, it also works seamlessly with Sony 800 and UWP Series transmitters.
Digital Audio Processing for high quality sound
Improves transient response performance between the UWP-D transmitter and receiver, providing impressive natural sound quality compared to conventional analogue wireless systems.
Stable RF transmission
True diversity reception system achieves highly stable reception from two adjustable receiving antennas, each with its own RF circuits.
Great usability with Sony XDCAM and HDCAM camcorders
The URX-S03D fits in the slot of Sony?s XDCAM camcorder with 2-channel digital audio connections directly from the DSP. It can also be matched with the slot of an HDCAM camcorder with single channel audio connection.
Easy to use features
Automatic channel setting function, headphone output, USB connection for power supply and line input availability.
Wide frequency coverage with choice of channels available
The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models - please refer to product specifications for more information.
Robust metal body
The URX-P03 portable receiver is made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.
Weatherproof structure
Waterproof structure of the URX-S03D makes it safe to use in extreme conditions
Selectable squelch
The squelch can be easily turned on or off in the menu.
Compatible with a wide range of Sony camcorders
PXW-X320, PXW-X400, PDW-850/750, PXW-X500, PMW-400/580, PDW-510/510P, PDW-530/530P, PDW-700/740/F800,PMW-TD300, PMW-500/350, PMW-320, (PMW-F5/F55 with CBK-55BK), HDW-F900R, HDW-650/680/800P, MSW-930P, DSR-400/400P, DSR-450WS/450WSP
Features
True diversity reception system for stable receptionDirect digital connection to camcordersSony Digital Audio Processing for high quality soundAutomatic channel setting modeFast and easy channel scanCompatibility with Sony 800 and UWP SeriesWide frequency coverage
Specifications
URX-S03D Portable Receiver

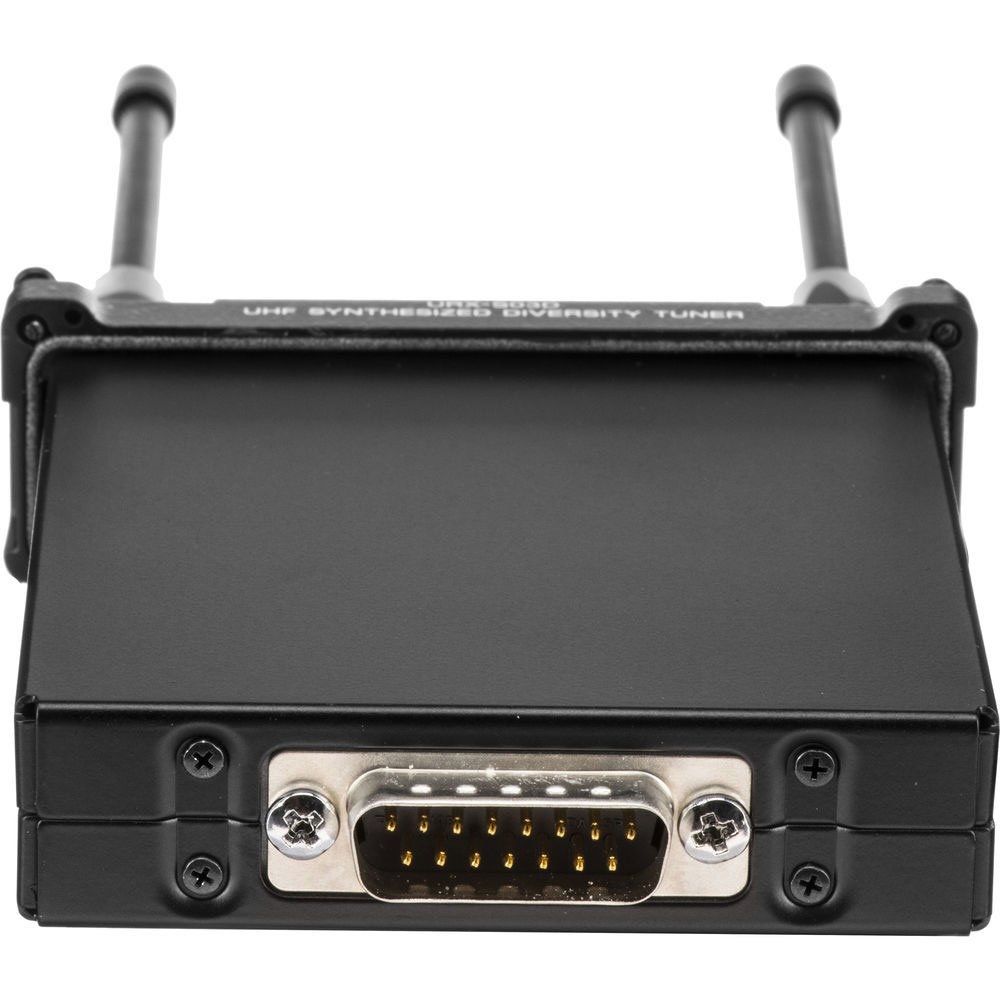

Oscillator Type: Crystal-controlled PLL SynthesizerReception Type: True diversityAntenna Type: DetachableCarrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)Frequency Response: 23Hz to 18kHz (typical)Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)Distortion (T.H.D): 0.9% or less (-60dBV, 1kHz input)Audio Delay: Approx. 0.375 msecAnalog Output: D-sub 15pin, unbalancedAnalog Output Level*: -40dBu (at ±5kHz deviation)Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHzDisplay: LCDPower Requirements: DC 7.0 VOperating Temperature: 0°C to 50°C, 32°F to 122°FStorage/Transport Temperature: -20°C to +55°C, -4°F to +131°FDimensions: 88 x 116.2 x 31.2mm (3 1/2 - 4 5/8 - 1 1/4 in.) (excluding the antennas) (W x H x D)Mass: Approx. 303g (10.7 oz.) (with supplied antennas attached)
