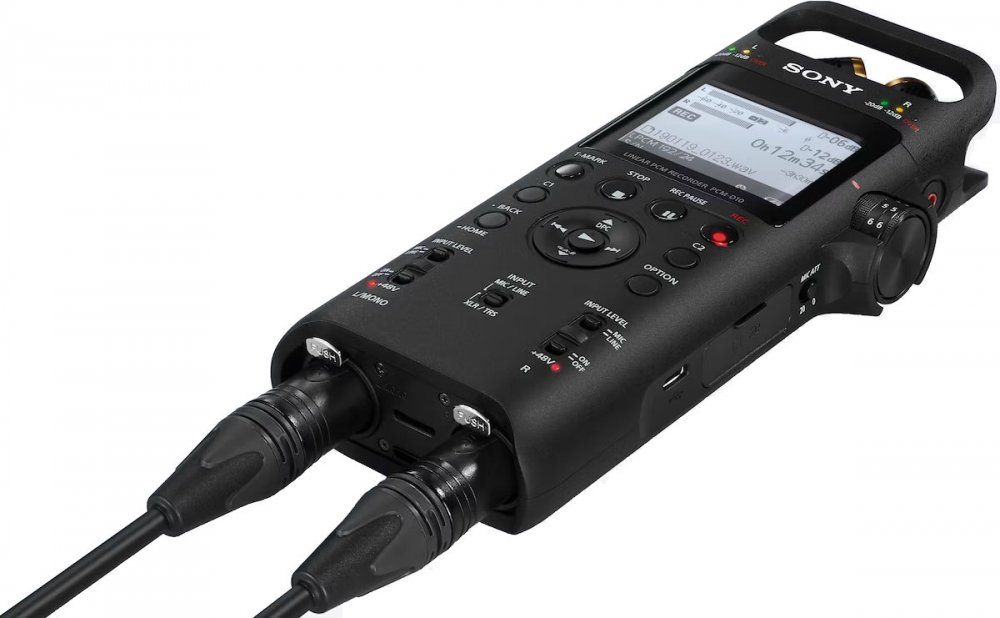

Sony PCM-D10
MPN #PCM-D10
High-resolution audio digital recorder with 3-way adjustable microphone
Hi-Res Audio takes your recordings to the next level
Record professional sound with Hi-Res Audio at up to 192 kHz/24 bit. Whether it's your live music set, new podcast episode' or breaking news report, the PCM-D10 unlocks a new level of detail and texture.
Record anytime, anywhere with three-way built-in mics
No external mic No problem. The PCM-D10 comes with three-way adjustable built-in mics with low noise and a wide frequency range, so you're always ready to capture impeccable sound. And with three recording positions, you can adapt to your situation. Choose XY for music performances, zoom for interviews and discussions, or wide stereo for open and outdoor spaces.
Connect all your gear with twin XLR/TRS jack
Plug in two inputs for high-quality two-channel recording. Compatible with XLR and TRS connectors, the twin jack gives you more choice over your sources, from mics and mixers to keyboards. These jacks are independently switchable at mic or line level, and have independent 48-V phantom power. You'll also find a dedicated stereo 3.5-mm mini jack input.
Capture flawless sound with dual ADCs
Combining two top-of-the-line AK4558 A/D D/A converters with our own high-quality technology, the PCM-D10 raises the bar for your recordings. Working in tandem, they maximize S/N and allow you to capture flawless sound at up to 192 kHz.
Take total control of your input levels
With the variable analog gain amplifier, you can dial in your audio levels with precision. The recorder features independent dials for your L and R channels, so you're free to adjust both"or just one"of your inputs. And because these are high-quality analog controls, you can adjust the gain smoothly, without the step noise that can be encountered with digital volume.
Features
Circuit board designed to prevent noise
Look beneath the case of the PCM-D10 and you'll find a circuit board engineered to give you the highest sound quality. The analog and digital circuits are totally separated on the board, reducing interference and boosting signal-to-noise. We've also positioned the amp blocks close to the inputs for the clearest possible transmission.
Analog headphone amp for pitch-perfect playback
Whether you're monitoring live or reliving the performance, you'll enjoy clear, detailed audio and high output power from the PCM-D10's high-quality MAX9723 analog headphone amp. This also features an integrated analog volume controller for smooth adjustment.
High S/N mode
With high S/N mode, you can stop worrying about lost low levels. The PCM-D10's two ADCs record at different volumes"one regular and one lower"and if any low levels are lost, the device automatically replaces these sections with audio captured at -12 dB. The result Clear recordings for even the most dynamic performances.
Power supplied by batteries or USB-TypeC
Choose from different power supply options to match your recording environment. USB Type-C? can be more suited to studio time, while dry cell batteries (4xAA) are ideal for recording in the field.
Digital Limiter
The Digital Limiter lets you make interruption-free recordings, even at high levels. When saturation occurs, the recorder will automatically fill clipped portions with a back-up recording at as much as -12 dB. This means that even if volume spikes, you can be confident you've captured the flawless files you need.
Never miss a beat with push-lock jacks
The PCM-D10 features a push-lock jack that keeps your cables locked in place, so you can be sure you'll always get the take " even if you're at a bustling live show or reporting on the run.
Never lose sight of your L and R levels
An easy-to-read, on-screen display shows separate peak levels for your L and R channels, so you can see just where you need to tweak your inputs.
Capture more with up to 256 GB of SD card storage
With 16 GB internal memory, you're always ready to lay down Hi-Res recordings. And with the capacity to add up to 256 GB of SD card storage, you can record professional audio, even through the longest sessions. Plus, if you turn on Cross-Memory REC mode, the recorder will automatically switch to SD card when you exceed the internal memory, so you can be sure you never miss a take.
Three peak lamps to keep your levels in check
Just one look and you can check if you're recording at safe levels thanks to the PCM-D10's three peak level lamps. These will light up to indicate if your levels hit -20 dB, -12 dB or overload. You can also monitor full bandwidth stereo levels on the display or via the Sony REC Remote app.
Relive the performance wirelessly
Featuring BLUETOOTH connectivity, the PCM-D10 lets you relive the moment on your choice of wireless device. Perfect for casual reviews on your own or sharing instant playbacks with the whole crew.
Hit record from your smartphone
Use the Sony REC Remote app to start recordings from your smartphone. This helps eliminate the interference sometimes caused by jogging the device when you hit the REC button. You can also use the app to adjust most recording settings, mark tracks and monitor your levels. Available for Android and iOS.
Capture every word with monaural mode
Recording an interview Simply switch from stereo to monaural mode and the PCM-D10 will record on L channel only when an XLR cable is connected for perfect dialogue.
Take it into the studio via USB Type-C
Recorded your raw audio Now it's time to import to your computer via USB Type-C? and work your editing or post-production magic.
Huge capacitor for clear recording
The PCM-D10 is equipped with two 3300-uF capacitors, which eliminate power ripples so you can record clear, distortion-free sound.
Tripod screw hole for easy mounting
Thanks to the ΒΌ"-20 tripod screw hole, you can easily and securely mount the PCM-D10, whatever your recording setup.
Intuitive controls for simple operation
The PCM-D10 is designed with a simple, intuitive button layout, so nothing comes between you and capturing the perfect recording. Plus, there are two custom buttons you can assign to modes such as high signal-to-noise or the Digital Limiter, giving you a shortcut to the operations you use most.
Edit your files with Sound Forge Audio Studio 12
Captured your raw files Then it's time to edit with Sound Forge Audio Studio 12, included as a download link and serial number. Ideal for cleaning up your interview audio or fine-tuning your band's performance before you share it with the world.
Wind screen keeps the elements at bay
The PCM-D10 comes with a windscreen, designed to reduce wind noise when you're working in the field.
Plot painted for the grip you need
The PCM-D10 is finished with a tactile, plot-painted texture. This helps you keep a firm grip on your recorder.
Specifications
Specifications
Dimensions (W x H x D): Approx. 80.2 x 197.6 x 37.4 mm, (Approx. 3.16 x 7.78 x 1.48 inches)
Weight: Approx. 480 g (including batteries), (Approx. 16.94 oz) (including batteries)
Battery Type: Dry Battery
Battery type (Provided): LR6 (size AA) x 4
Built-in Memory: 16GB
Built-in Microphone: Stereo
Calendar Search: Yes
LCD Backlight: Yes
Maximum files per folder: 199
Maximum files (total): 5000
Menu Language: GB/CT
PC Connectivity: Yes
Playback Format: MP3/AAC-LC/WMA/LPCM/FLAC
Recording Format: LPCM/MP3
USB Connection Charging: No
