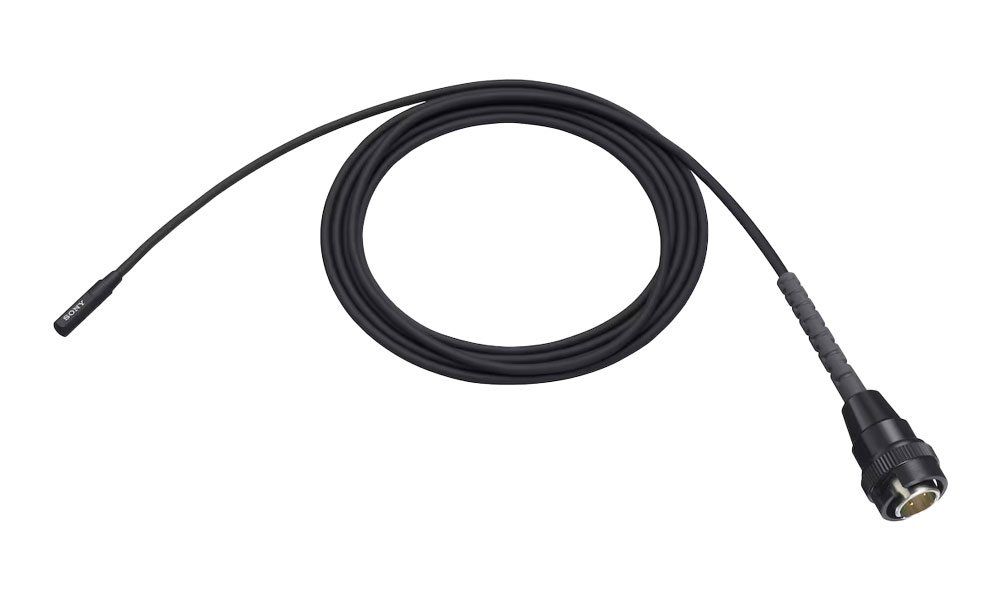

Sony ECM90BC
$552.00
Save 20.1%, MSRP $690.79
Omnidirectional electret condenser, ultra-mini 3.5mm size, 20Hz"20kHz response, 125dB SPL max, low noise, 3.9ft cable, shielded for digital wireless.
The Sony ECM-90BC is an ultra-miniature, omni-directional electret condenser lavalier microphone engineered for demanding audio applications such as ENG (Electronic News Gathering), studio work, EFP (Electronic Field Production), and location sound. Its dual-diaphragm design boosts sensitivity, widens the dynamic range, and significantly lowers self-noise. The microphone's advanced diaphragm mounting structure is crafted to minimize handling and cable noise-making it especially suited for mobile setups where movement is constant.
This model is praised for its natural sound reproduction, achieved through a flat and wide frequency response of 20 Hz to 20 kHz. Its water-resistant construction ensures it performs reliably in various environments, from studio interiors to unpredictable outdoor conditions. Additionally, the ECM-90BC is shielded for compatibility with digital wireless transmitters, making it a flexible and robust solution for professional broadcast and film production scenarios.
Despite its technical prowess, the ECM-90BC remains incredibly discreet. Measuring just 3.5 x 3.5 x 20.5 mm and weighing only about 1 gram, it can be easily hidden in costumes or attached subtly to clothing, perfect for visual media where microphone visibility must be minimized. It connects via a Sony 4-pin (SMC9-4P) connector and operates with a DC input of 1.1V to 10.0V, making it compatible with a variety of professional wireless systems. The package includes essential accessories like a windscreen and tie clips to facilitate immediate use across different setups.
Features
Ultra-miniature lavalier microphone designed for high-end use in ENG, studio, EFP, and location soundOmni-directional pickup pattern captures natural sound from all directionsDual-diaphragm design provides high sensitivity, wide dynamic range, and low noiseSpecial diaphragm mounting reduces cable noise often found in lavalier setupsFlat and wide frequency response from 20 Hz to 20 kHz ensures accurate audio reproductionWater-resistant build delivers clear sound in various conditionsShielded for compatibility with digital wireless transmittersLightweight and compact with a 3.9-foot cable and 4-pin Sony connectorOperates on DC power between 1.1V and 10.0VComes with windscreen, vertical and horizontal tie clips, and operating instructions
Specifications
General Specifications
Model: Sony ECM-90BCMicrophone Type: Electret condenserPolar Pattern: Omni-directionalApplication: Lavalier microphone for ENG, studio, EFP, and location soundShielding: Designed for use with digital wireless transmittersWater Resistant: YesDimensions Mic Head: 3.5 x 3.5 x 20.5 mmWeight Mic Only: 1 gram
Audio Specifications
Frequency Response: 20 Hz to 20 kHzSensitivity: -38 dB or 12.6 mVOutput Impedance: 2.5 kiloohms, unbalancedDynamic Range: 99 dBSignal to Noise Ratio: 68 dB (A-weighted)Inherent Noise: 26 dB SPLWind Noise with Windscreen: 45 dB SPL or lessMax Input SPL: 125 dB SPL
Connectivity
Connector Type: Sony 4-pin SMC9-4PCable Length: 1.2 meters
Power Requirements
Voltage Range: DC 1.1 V to 10.0 V
Included Accessories
Windscreen (Urethane type)Vertical tie clipHorizontal tie clipOperating instructions
Optional Accessories
Wind screen packVertical clip packSafety clip packHorizontal clip packDouble clip packColor windscreen packBlack windscreen packAccessory kit
