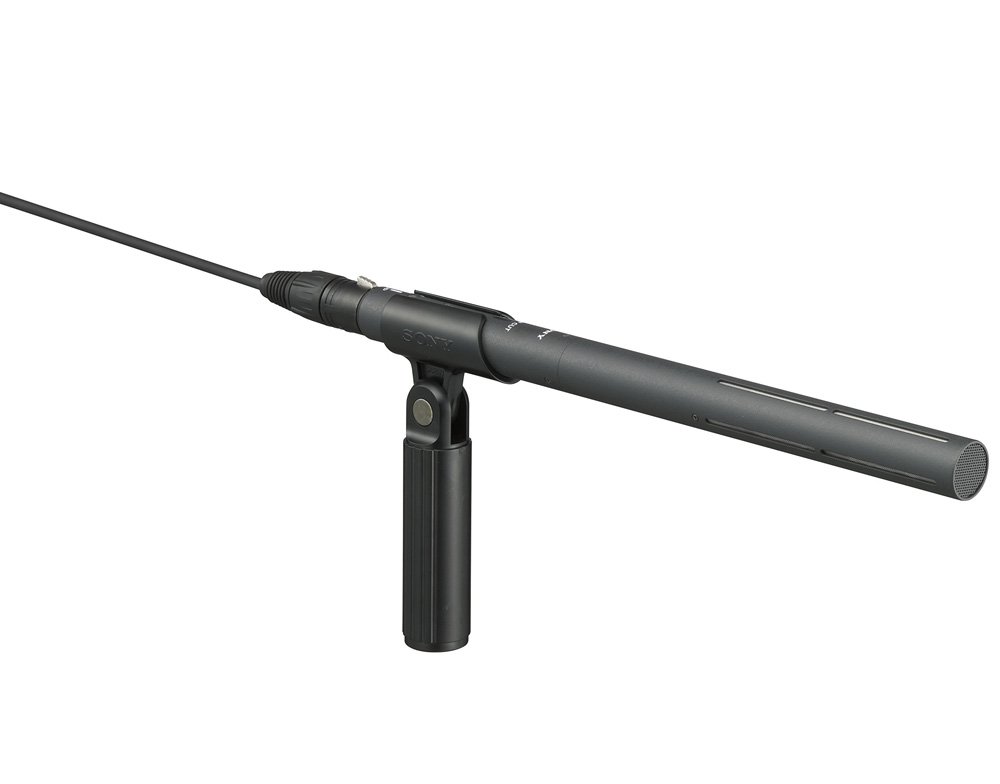

Sony ECM-674
MPN #ECM674/9X
$460.00
Save 22.1%, MSRP $590.79
Shotgun-type electret condenser microphone with two-way powering capability and built-in low cut filter
The ECM-674 is an affordable shotgun-type electret condenser microphone, which delivers excellent sound performance in field and studio productions.
Superb Sound Quality
The ECM-674 offers an excellent sensitivity of -36 dB (0 dB=1 V/Pa.) and low inherent-noise level of less than 17 dB SPL. This allows the microphone to be used for clear voice pick-up even in noisy environments
Two-way Powering
A two-way powering capability allows the ECM-674 to be driven by microphone power or batteries, making it suitable for both camcorder mounting and many other sound-gathering applications. Internal: AA-size battery operation. External: DC (40 to 52 V) operation
Built-in Battery Liquid Leakage Protection Circuit
In general, old batteries can leak and damage the equipment they are used in. The ECM-674 prevents this by continually detecting the output voltage of the battery and shutting off the power supplied to the electric circuit whenever the voltage drops beneath a certain threshold.
Features
Flat-and-wide Frequency Response
The ECM-674 microphone has a flat-and-wide frequency response (40 Hz to 20 kHz) and provides sound reproduction that is extremely smooth and natural
Compact and Lightweight Design
The ECM-674 has been designed as a highly directional compact and lightweight shotgun microphone. It measures only 268 mm (10 5/8 inches) in length and weighs just 185 g (6.5 oz), maintaining good balance even when mounted on compact camcorders.
Built-in Low Cut Filter
The built-in two-position (M, V) low-cut switch provides users with a simple method of reducing the effects of undesired ambient noise.
Specifications
Capsule Type: Mono Electret Condenser
Frequency Response: 40 Hz to 20 kHz
Directivity: Uni-directional (super-cardioid)
Sensitivity *[1]: -36 dB ±3 dB
Output Impedance *[2]: 220?±20%, Balanced
Dynamic Range: Phantom: 107 dB or more, Battery: 98 dB or more
Signal-to-Noise Ratio *[3]: 77 dB or more
Inherent Noise *[4]: 17 dB SPL or less
Induction Noise From External Magnetic Field *[5]: 0 dB SPL or less
Wind Noise *[6]: 50 dB SPL (without windscreen), 45 dB SPL or less (with windscreen)
Maximum Input Sound Pressure Level *[7]: Phantom: 124 dB SPL
Battery: 115 dB SPL
Connector: XLR-3-12C (male)
Mic Cable: XLR-3 to XLR-3, 500 mm, 19.6 inches
Power Requirements: External: DC 40 V to 52 V, Battery: 1.5 V
Dimensions *[8]: ?20 x 268 mm, ?13/16 x 10 5/8 inches
Mass:
Approx. 7.3 oz with battery
Approx. 6.5 oz without battery
Approx. 208 g with battery
Approx. 185 g without battery
Supplied Accessories:
Windscreen (1)
Stand adaptor (2)
Short XLR cable
Operating instructions (1)
Mic spacer (2)
Mic holder (1)
Note*
[1] 0 dB = 1 V/Pa, at 1 kHz
*[2] Output impedance at 1 kHz
*[3] A-weighted, 1 kHz, 1 Pa.
*[4] 0 dB SPL = 20 ?Pa.
*[5] dB SPL/1E-7 T, 0 dB SPL = 20 ?Pa.
*[6] Wind noise at 2m/s (0 dB SPL = 20 ?Pa.)
*[7] 0 dB SPL = 20 ?Pa.
*[8] The values for dimensions are approximate.
