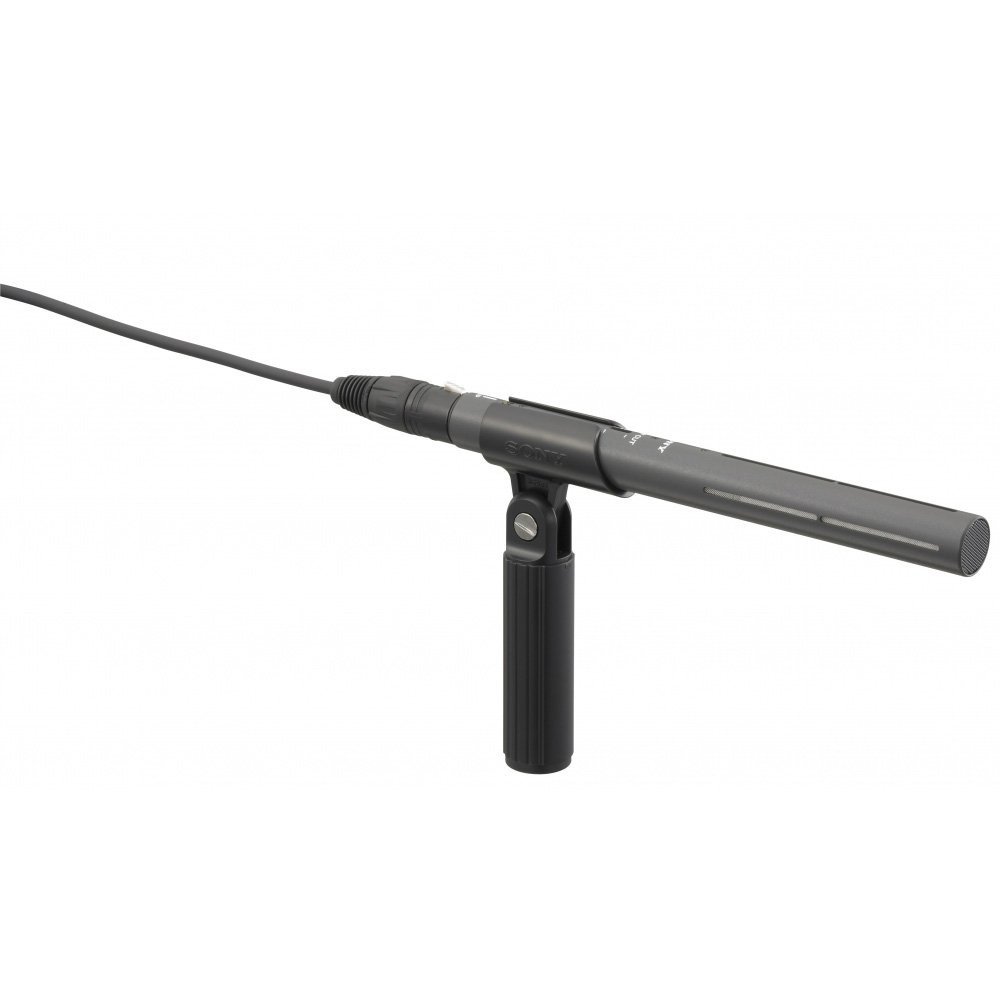

Sony ECM-673
MPN #ECM673/9X
$365.00
Save 22.3%, MSRP $469.74
Short shotgun electret condenser microphone with built-in low-cut filter
The ECM-673 is a short shotgun, electret condenser-type microphone, which delivers excellent sound performance in field and studio production applications at an affordable price.
Features
Superb Sound Quality
The ECM-673 offers an excellent sensitivity of -36 dB (0 dB=1 V/Pa) and a low inherent-noise level of less than 17 dB SPL. This allows the microphone to be used for clear voice pickup, even in noisy working environments.
Flat-and-wide Frequency Response
The ECM-673 microphone has a flat-and-wide frequency response (40 Hz to 20 kHz) and delivers extremely smooth and natural sound reproduction.
Compact and Lightweight Design
The ECM-673 has been designed as a highly directional, compact, and lightweight short shotgun microphone. It measures only 200 mm (7 7/8 inches) in length, and weighs just 135 g (4.76 oz), maintaining good balance even when mounted on compact camcorders.
High Durability and Reliability
The vibration-resistant mechanism of the ECM-673 offers high durability and reliability, making it suitable for the harsh environments that can be encountered in field sound-acquisition.
Built-in Low-cut Filter
The built-in two-position (M, V) low-cut switch on the ECM-673 provides a simple method of reducing the effects of unwanted ambient noise.
Specifications
Capsule Type: Mono Electret Condenser
Frequency Response: 40 Hz to 20 kHz
Directivity: Uni-directional (super-cardioid)
Sensitivity *[1]: -36 dB ±3 dB
Output Impedance *[2]: 220?±20%, Balanced
Dynamic Range: 107 dB or more
Signal-to-Noise Ratio *[3]: 77 dB or more
Inherent Noise *[4]: 17 dB SPL or less
Induction Noise From External Magnetic Field *[5]: 0 dB SPL or less
Wind Noise *[6:]: 50 dB SPL (without windscreen)
45 dB SPL or less (with windscreen)
Maximum Input Sound Pressure Level *[7]: 124 dB SPL
ConnectorXLR-3-12C (male)
Mic Cable: XLR-3 to XLR-3, 500 mm, 19.6 inches
Power Requirements: External, DC 40 V to 52 V
Dimensions *[8]: ?20 x 200 mm, ?13/16 x 7 7/8 inches
Mass: Approx. 4.8 oz, Approx. 135 g
Supplied Accessories:
Windscreen (1)
Stand adaptor (2)
Short LR cable (for camcorder use) (1)
Operating instructions (1)
Mic spacer (2)
Mic holder (1)
Note:
*[1] 0 dB = 1 V/Pa, at 1 kHz
*[2] Output impedance at 1 kHz
*[3] A-weighted, 1 kHz, 1 Pa.
*[4] 0 dB SPL = 20 ?Pa
*[5] dB SPL/1E-7 T, 0 dB SPL = 20 ?Pa
*[6] Wind noise at 2m/s (0 dB SPL = 20 ?Pa)
*[8] The values for dimensions are approximate.
