Sony DWT-B03R
MPN #DWTB03R

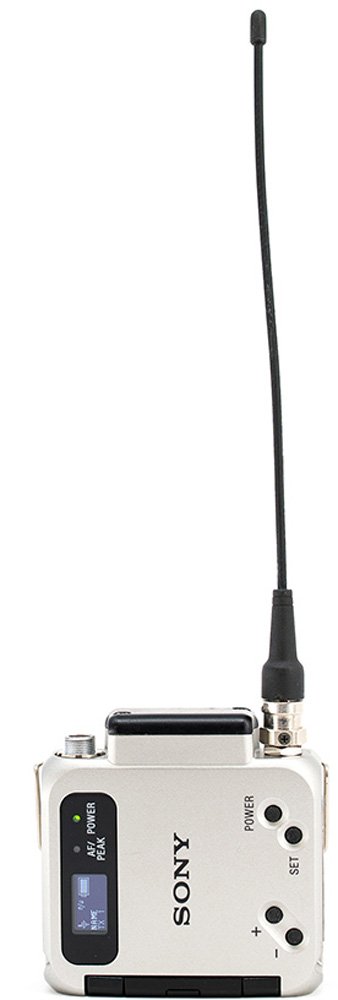

DWX Series digital wireless microphone bodypack transmitter
Superb audio quality and stable operation in a wide range of environments
The third generation of Sony's acclaimed DWX series, this high-performance digital wireless bodypack transmitter is an ideal choice for live sound applications including theater and concerts, as well as studio-based TV production and ENG/EFP.
Light and compact (27% smaller than its DWT-B01N predecessor), the DWT-B03R features a tough magnesium body that's resistant to rain, spray, and sweat.
Sony's advanced digital audio processing, encryption and RF transmission technologies assure secure, stable transmission and reception of very high-quality audio with low latency.
The DWT-B03R is ideal for use in large-scale multi-channel productions, supporting up to 21 simultaneous channels per 8 MHz TV band or up to 16 simultaneous channels per 6 MHz TV band.
The DWT-B03R is compatible with Sony Wireless Studio control software for PC (Ver 5.0 or later), allowing flexible remote operation. Remote control of up to 82 transmitters is possible using the Cross Remote? function combined with the RMU-01 remote control unit (available separately).
Features
Small, lightweight and robust magnesium body
27% smaller than its DWT-B01N predecessor
Very high quality wireless audio
Advanced Sony codec design assures superb audio quality, with a high dynamic range of more than 106 dB, plus a wide frequency response of 20 Hz - 22 kHz and excellent transient response.
Low-latency audio
Advanced Sony codec design reduces audio latency to as little as 1.2 msec
Rain, sweat, and spray-proof
Ideal for musicals, film production, or outdoor operation, the DWT-B03R features a tough magnesium body with a moisture-resistant housing gasket and splash-proof connector that resists rain, sweat, and spray.
Long battery life

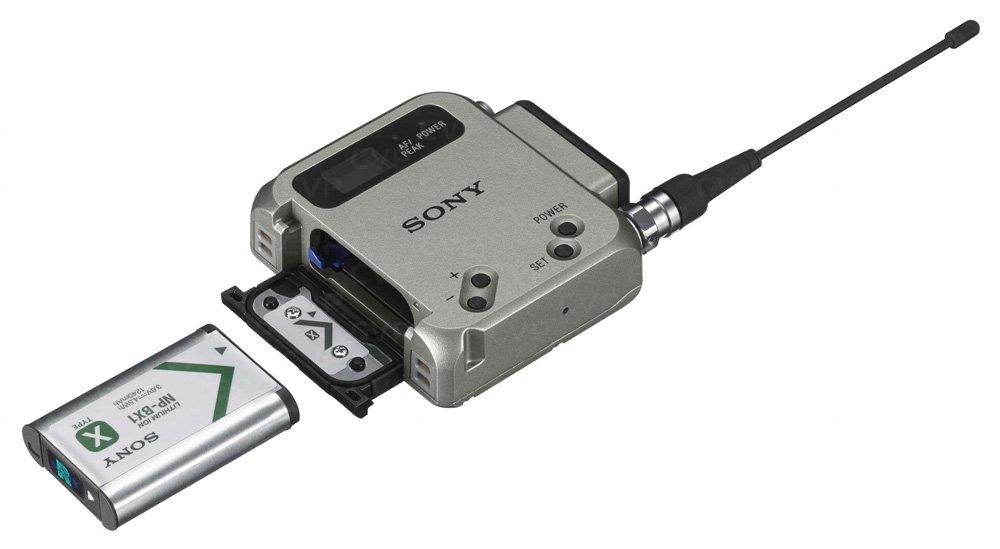

Perform for longer with the high-capacity rechargeable NP-BX1 Li-ion battery (approx. 7 hours). The DWT-B03R is compatible with the optional BC-DWX1 Dual Charger.
148MHz wideband
Contributes to the reduction of equipment and burden of maintenance.
High density multi-channel operation
Ideal for large-scale productions, the DWT-B03R supports high-density simultaneous multi-channel operation: 375 kHz spacing accommodates up to 21 channels per 8 MHz TV band or up to 16 simultaneous channels per 6 MHz TV band.
AES 256bit encryption
For secure encrypted transmission
Easy, versatile remote control
The DWT-B03R is compatible with Sony's Wireless Studio control software for PC (Version 5.0 or later). Up to 82 transmitters can be controlled using the Cross Remote? function and RMU-01 remote control unit (available separately).
Selectable RF output power
RF output power level is selectable (2 mW/10 mW/25 mW) to prioritize stable multi-channel or long distance operation.
OLED display
The easy-to-read OLED display gives confirmation of channel number, RF signal status, user name, user group and lock status.
Phase reverse mode
It can change the audio phase by the menu.
User setting memory
Settings can be easily stored to the memory of DWT-B03R.
Setting lock
Transmitter settings can be locked to prevent accidental operation during performance.
Transmitter/receiver identifying function
Paired transmitters/receivers are identified by blinking display.
Small three-pin connector with lock
Specifications
Wireless Interface: WiDIF-HP
Oscillator Type: Crystal-controlled PLL Synthesizer
Antenna Type: ?/4 flexible wire
Type of Emission: G1E or G1D
Carrier Frequencies - UC7: 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz, 25 kHz steps
Carrier Frequencies - CE7: L: 470.025 MHz to 614.000 MHz, 25 kHz steps
H: 566.025 MHz to 714.000 MHz, 25 kHz steps
Carrier Frequencies - JL: 470.150 MHz to 614.000 MHz, 25 kHz steps
MH: 566.025 MHz to 713.850 MHz, 25 kHz steps
G: 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps
B: 806.125 MHz to 809.750 MHz, 125 kHz steps
RF Power: 2 mW/10 mW/25 mW (e.r.p) selectable
Input Connector: Small three-pin connector with lock
Reference Input Level: MIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level) / LINE: +4 dBu, 1 kHz
Maximum Input Level: MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu
Audio Attenuator Adjustment Range: 0 to 48 dB (3 dB steps, MIC input mode only)
Frequency Response: Transmission: 20Hz to 22kHz (typical)
Dynamic Range: 106 dB typical (A-weighted, T.H.D=1%)
Distortion (T.H.D): MODE1, MODE2: 0.03% or less, MODE3: 0.3% or less
Audio Delay*: MODE1: 0.8 msec (total: 2.7 msec)/MODE2: 0.7 msec (total: 1.2 msec)/MODE3: 1.8 msec (total 3.7 msec)
*Analog output
Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
Display: OLED
Power Requirements: DC 3.6 V (with Rechargeable Battery Pack: NP-BX1)
Battery Operating Time: Approx. 7 hours with Sony's NP-BX1 at 77°F (25?) at 10-mW output
(with the wireless remote control function off and DIMMER MODE set to AUTO OFF)
Operating Temperature: 0°C to 50°C / 32°F to 122°F
Storage/Transport Temperature: -20°C to +60°C / -4°F to +140°F
Dimensions (W x H x D): Approx. 53 x 60 x 17 mm (60 x 60 x 17 mm with the projection parts) (excluding the antennas)
MassApprox. 99 g
Supplied AccessoriesBelt Clip (1)
Carrying case (1)
NP-BX1 (1)
Scribble sheet (1)
CD-ROM (1)
