Sony AN57

MPN #AN57

$745.00

Save 12.9%, MSRP $855.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

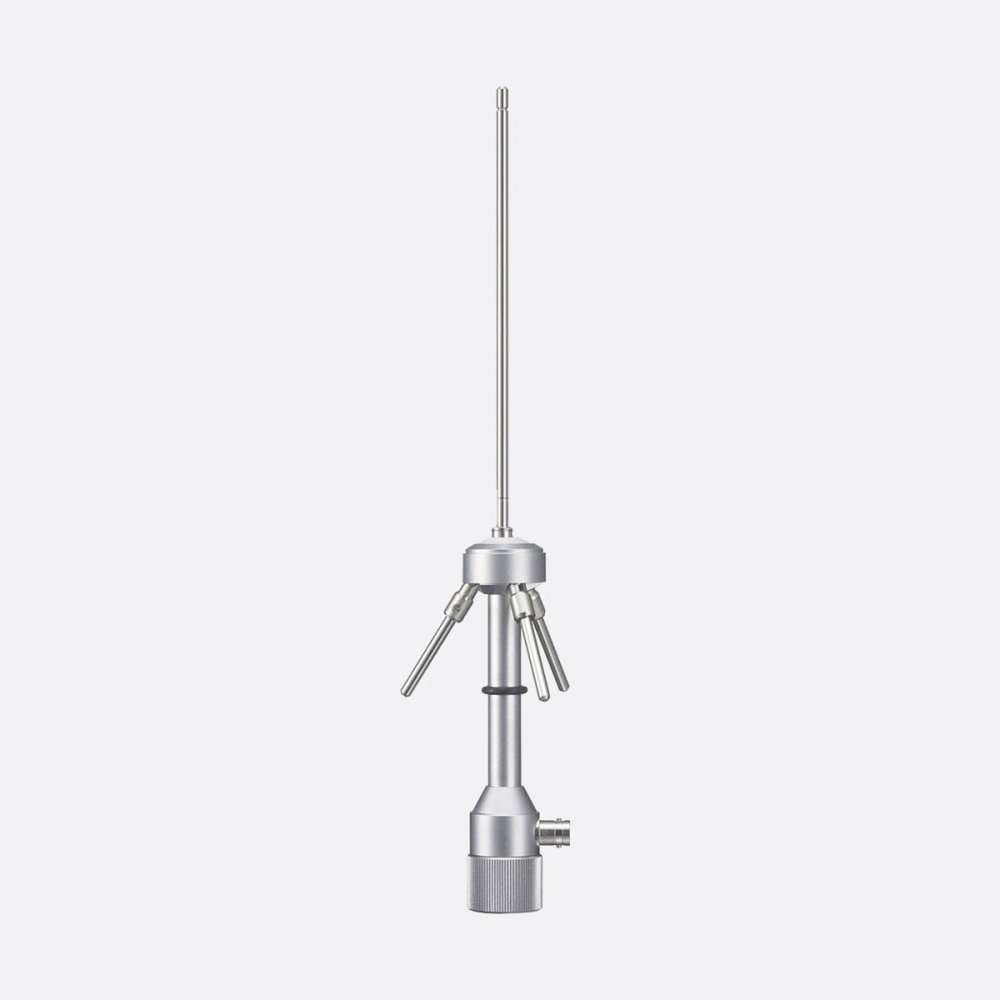

Collapsible omnidirectional UHF Ground Plane Antenna (470MHz-638MHz)

Designed to be positioned on a stand or suspended from the ceiling, this omnidirectional antenna has a frequency range of 638-810MHz. By attaching the supplied antenna elements, the user can alter the range to 470-638MHz.

Features

UHF Wireless Hall Broadcast Ground Plane Antenna

Collapsible design, non-directional so reception possible from any direction

Suitable for Hall and Broadcast applications

Specifications

General

Antenna type: Ground plane antenna

Frequency range: 638 MHz to 810 MHz (When supplied elements are attached: 470 MHz to 638 MHz)

Polarization: Vertical

Directivity: Horizontal, omnidirectional

Gain: 0 dBi (from center frequency)

Voltage standing wave ratio: 3 or less (from center frequency)

Impedance: 50 ? (representative value)

Output connector: BNC-R type

Stand screw: PF 1/2

Mass: Approx. 280 g (9.9 oz.)

Dimensions: Ø121 - 288 mm (4 7/8 - 11 3/8 in.), (When supplied elements are attached: Ø153 - 320 mm (6 1/8 - 12 5/8 in.))

Supplied accessories: Operating Instructions (1), Antenna Elemens (4)
