UPC/EAN #732311013300     MPN #DM-MOD-ZM


Financing available
Free shipping in Canada. Conditions

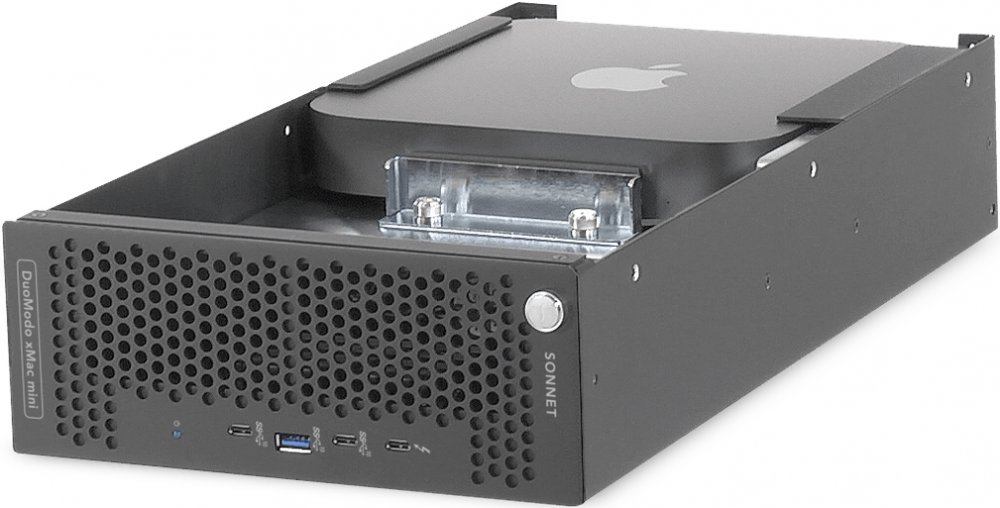

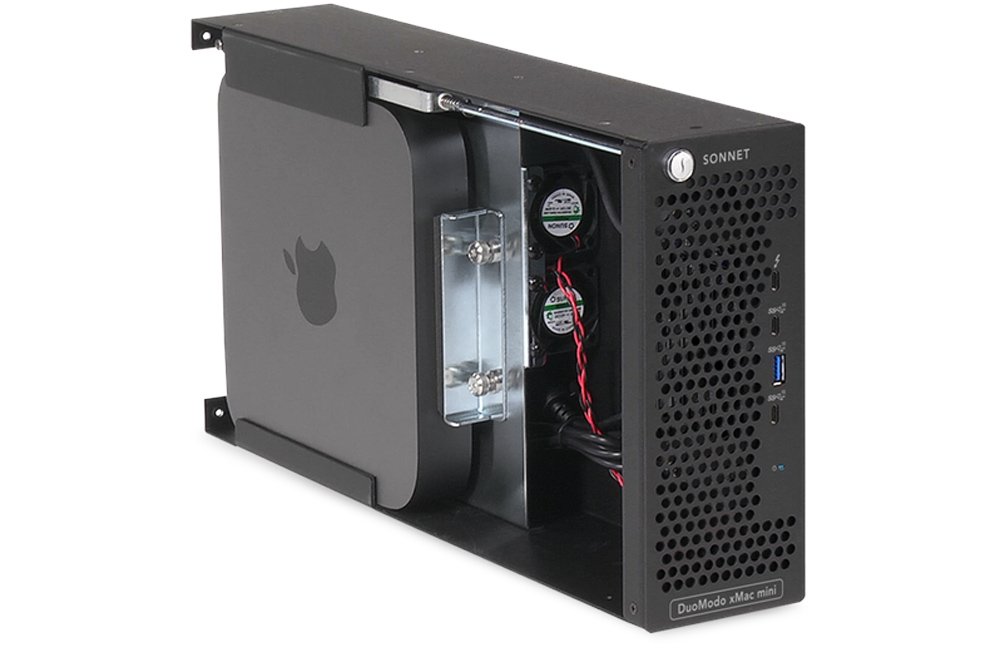

Mac mini mounting module + Thunderbolt SSD storage dock for Sonnet DuoModo enclosures

The DuoModo xMac mini Module provides secure computer mounting in a DuoModo desktop or rackmount enclosure. It includes a built-in 40Gbps Thunderbolt 3 storage dock that adds NVMe storage expansion and additional ports for connecting peripherals.

Front Panel Connectivity
40Gbps Thunderbolt and 10Gbps USB Ports
The front panel features one passthrough 40Gbps Thunderbolt 3 port and three 10Gbps USB ports (two Type-C, one Type A) for connecting peripherals.
Add a Mac mini
Securely holds an Intel or M1 Mac mini in horizontal or vertical orientation
Open access to the computer's ports in back
Rugged steel frame protects installed Mac mini
Thunderbolt 3 (40Gbps) cable included

Built-in Thunderbolt 3 Dock with SSD Sockets and Front Panel Ports
Add up to 16TB of M.2 NVMe SSD Storage!

Four Front Panel Ports
One Thunderbolt 3 (40Gbps) port
Two USB 3.2 (10Gbps) Type-C ports
One USB 3.2 (10Gbps) Type A port

Internal Connections
Two M.2 NVMe SSD sockets - add up to 16TB (SSDs sold separately)
One internal USB 3.2 (10Gbps) Type A port
Internal Thunderbolt 3 (40Gbps) port connects dock to the Mac mini

Internal USB Type A Port
Internal USB Type A port included for securely connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive

Quiet Fans
Dual fans offer quiet operation
Temperature-controlled, variable-speed
Form Factor:
Expansion system module

Front Panel Connectors:
One Thunderbolt (USB Type-C) port
Two USB 3.2 (10Gbps) Type-C ports
One USB 3.2 (10Gbps) Type A port

Internal Connectors:
One Thunderbolt (USB Type-C) port to Mac mini
One USB 3.2 (10Gbps) Type A port for thumb drive or dongle
Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2)

One or two M.2 2280 NVMe PCIe SSDs (with or without heat sink)

Power Supply:
Universal 96W, 100-240V AC, 50-60Hz
C14-type power connector

Operating Temperature:
0ºC to 35ºC (32ºF to 95ºF)

Dimensions (WxDxH):
3.3 x 16.4 x 8.5 in. (8.4 x 41.6 x 21.7 cm)

4.95 lbs (2.25 kg)

RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2

Package Contents:
xMac mini Module
Power cord
0.5-meter Thunderbolt 3 (40Gbps) cable

*Mac mini not included
