Rack-mounted A/D and D/A converter with XLR, RCA, AES/EBU, S/PDIF, and TOSLINK I/O, 24-bit/192kHz support, sync inputs, and remote control via RS232.



The Sonifex RB-ADDA2 is a 1U rack-mountable combined analog-to-digital (A/D) and digital-to-analog (D/A) converter designed for professional audio applications. It enables seamless conversion between analog and digital audio formats, supporting sample rates up to 192kHz.

This device converts balanced XLR or unbalanced RCA stereo analog inputs into digital audio outputs available in AES/EBU, S/PDIF, or TOSLINK optical formats. It also processes digital audio signals from AES/EBU, S/PDIF, or TOSLINK optical inputs and outputs them as balanced XLR or unbalanced RCA stereo analog signals.

The RB-ADDA2 features independent AES/EBU and Word Clock inputs, allowing the A/D and D/A sections to operate independently and synchronize to an external master reference clock. It supports four operational modes: Master, Slave, Auto, and Auto Lock, offering flexibility in various studio configurations. The high sample rate compatibility and synchronization options make it suitable for high-resolution audio processing.
  • Versatile Audio Conversion: Provides simultaneous analog-to-digital and digital-to-analog conversion for seamless audio integration.
  • High-Quality Audio: Supports sample rates up to 192kHz with low noise and distortion for professional-grade sound.
  • Flexible Connectivity: Features balanced analog XLR inputs and outputs alongside AES3 digital I/O for compatibility with various systems.
  • Clock Synchronization: Includes word clock I/O and selectable internal or external sync options for precision timing.
  • Compact and Rack-Mountable: 1U rack design for easy installation in studio and broadcast setups.
  • User-Friendly Controls: Intuitive front-panel controls and LED indicators for quick setup and monitoring.

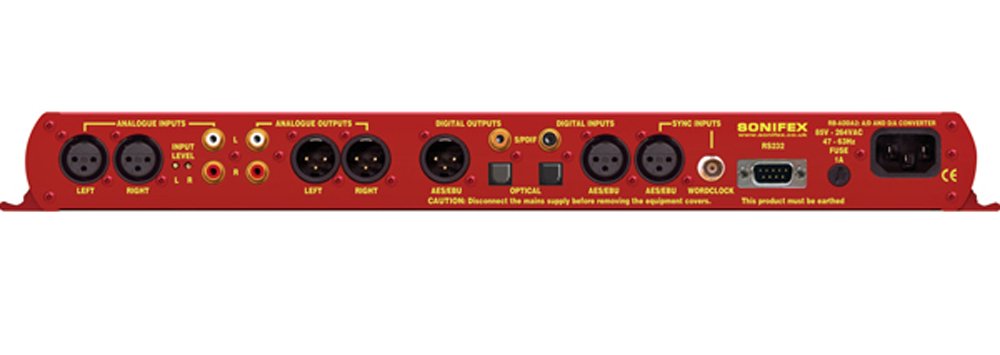

  • Analog Inputs: Balanced XLR and unbalanced RCA stereo inputs.
  • Analog Outputs: Balanced XLR and unbalanced RCA stereo outputs.
  • Digital Inputs: AES/EBU (XLR), S/PDIF (RCA), and TOSLINK optical.
  • Digital Outputs: AES/EBU (XLR), S/PDIF (RCA), and TOSLINK optical.
  • Sample Rates: Supports 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz.
  • Bit Depth: Selectable 16, 20, or 24 bits.
  • Synchronization Inputs: Independent AES/EBU and Word Clock inputs for A/D and D/A sections.
  • Control Interface: RS232 port for remote control of settings.

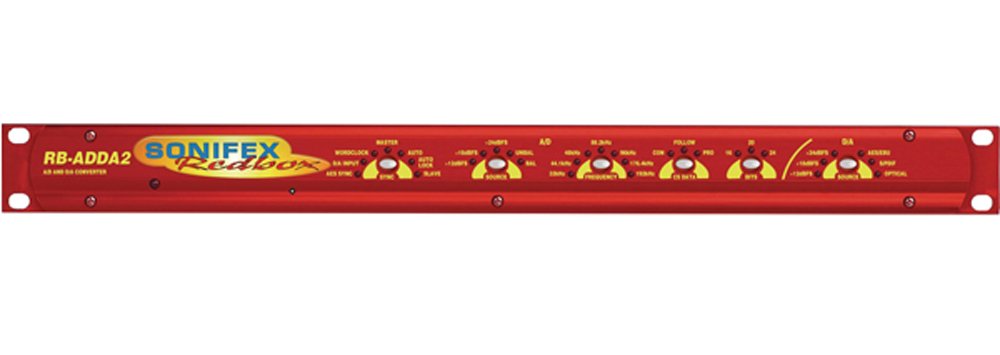

  • Front Panel Controls: Push-button switches for input selection, sample rate, bit depth, and synchronization settings.
  • Power Supply: Universal AC input (85-264V AC, 47-63Hz).
  • Dimensions: 1U rackmount; 19" (W) x 7" (D) x 1.75" (H).
  • Weight: Approximately 1.5 kg.
