Sonifex AVN-DIO04
MPN #AVN-DIO01
Dante to analog phono stereo I/O converter with RCA connections, Neutrik etherCON, 114dB dynamic range, PoE support, and AES67 compatibility.

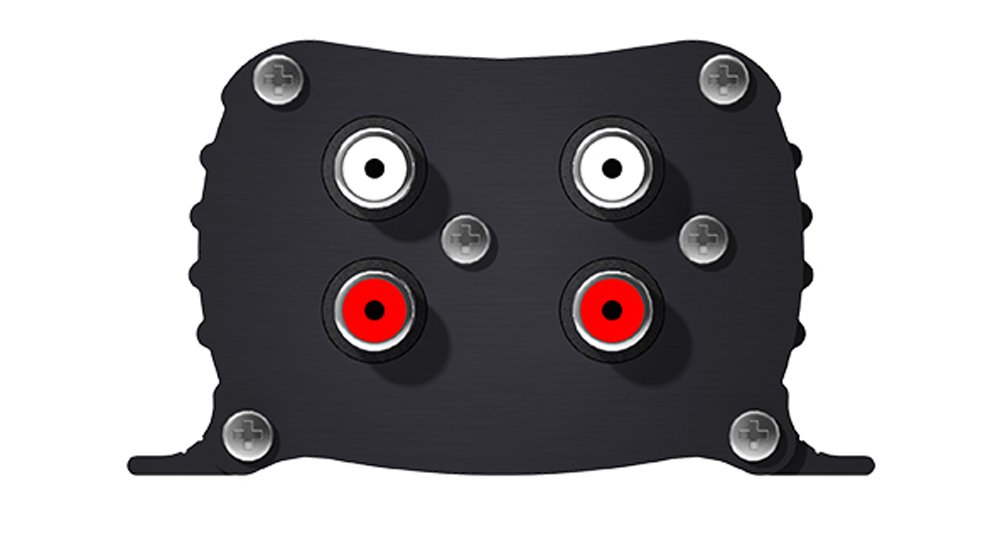

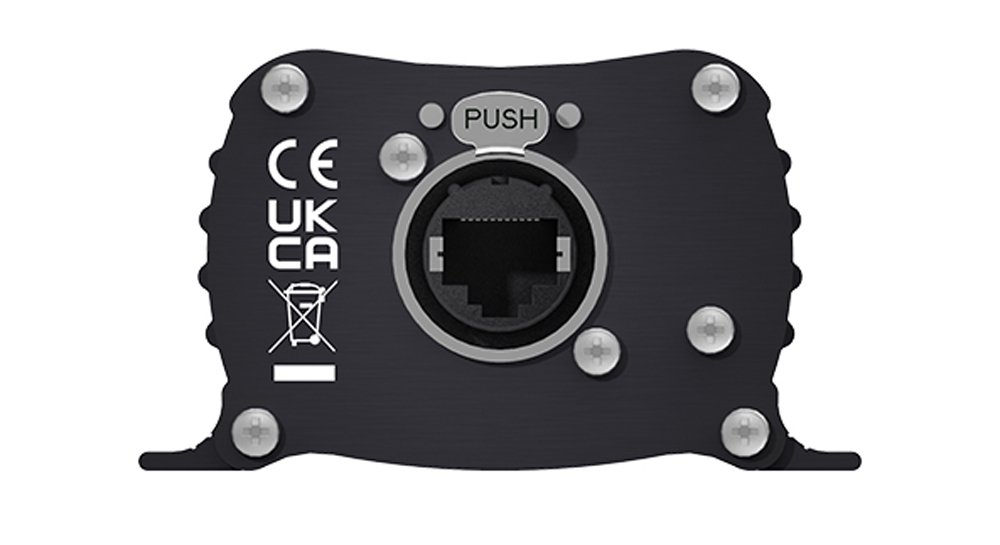

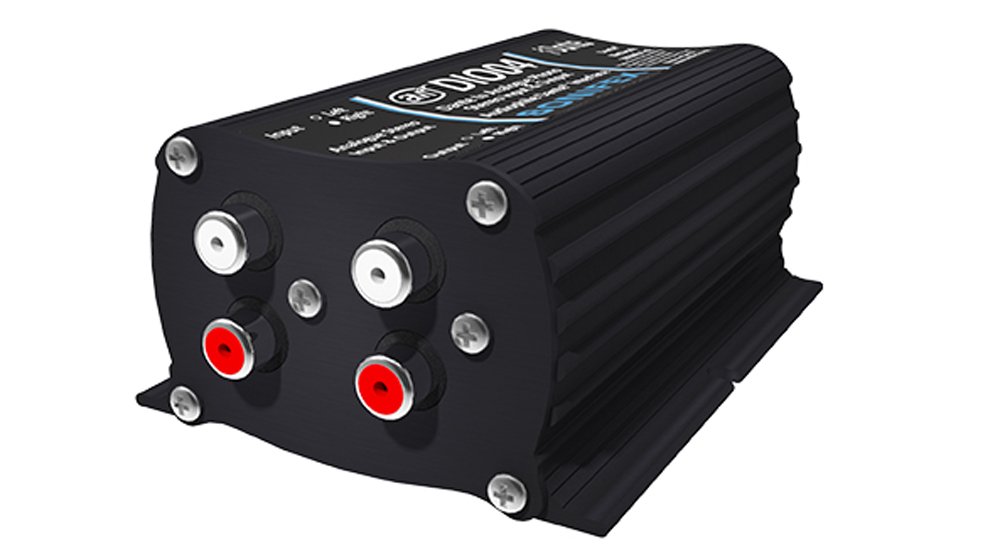

The Sonifex AVN-DIO04 is a compact audio interface designed to facilitate the integration of legacy analog equipment into Dante Audio-over-IP (AoIP) networks. It features stereo analog input and output phono (RCA) connections, allowing seamless connectivity for consumer-grade audio devices. A Neutrik EtherCon connector provides a robust link to the Dante network, ensuring reliable data transmission.
The AVN-DIO04 offers a dynamic range of 114dB, delivering high-quality audio conversion suitable for professional applications. Configuration is managed via Dante Controller software, facilitating straightforward integration into existing network setups. Power is supplied through Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power sources.
Features
High-Quality Audio Conversion: Converts balanced stereo analog audio to Dante AoIP with exceptional clarity.Professional Line Inputs: Features two balanced XLR inputs for seamless integration with analog audio systems.Low-Latency Performance: Ensures precise, real-time audio transmission for professional applications.Compact and Durable Design: Portable and robust construction, ideal for studio, live, or broadcast use.Power over Ethernet (PoE): Simplifies setup by combining power and network connectivity in a single Ethernet connection.Dante and AES67 Compatibility: Fully integrates with Dante audio networks and supports AES67 standards for versatile use.
Specifications
Analog Inputs: Two unbalanced RCA phono inputs with an input impedance greater than 5kiloohms.Analog Outputs: Two unbalanced RCA phono outputs with an output impedance of less than 200ohms.0dBFS Line-Up Level: +12dBu.Frequency Response: 20Hz to 20kHz, +0/-0.5dB (referenced at 1kHz).Total Harmonic Distortion + Noise (THD+N): Less than -114dBFS at -18dBu input level; less than -114dBu at -30dBFS output level, measured over 20Hz to 20kHz with a 20kHz bandwidth.Dynamic Range: Greater than 114dB A-weighted with a 20kHz bandwidth.Crosstalk: Less than -100dB.Network Interface: Neutrik EtherCon Ethernet connection for direct integration into Dante AoIP networks.AoIP Compliance: Fully Dante compliant, AES67 compatible, and Dante Domain Manager compliant.Sample Rates: Supports 44.1kHz, 48kHz, 88.2kHz, and 96kHz with PCM encoding at 16, 24, or 32 bits.Power Supply: Powered via Power over Ethernet (PoE) standard 802.3af Class 0 PD; typical power usage of 5W.Physical Dimensions: 11.1cm (W) x 7.3cm (D) x 4.3cm (H).Weight: Net weight of 0.2kg; gross weight of 0.3kg.
