Sonifex AVN-DIO19
MPN #AVN-DIO01
16-channel AES3 to Dante converter with dual redundant Ethernet, PoE support, sample rate conversion, front-panel LEDs, and a compact, rack-mountable design.
The Sonifex AVN-DIO19 is a compact audio interface that facilitates the bidirectional conversion of up to eight digital stereo AES3 inputs and outputs to and from Dante Audio-over-IP (AoIP) networks. Each input accepts sample rates ranging from 32kHz to 192kHz, with built-in sample rate conversion aligning them to the Dante system's sample rate. Outputs are synchronized to the Dante network's sample rate, ensuring seamless audio integration.

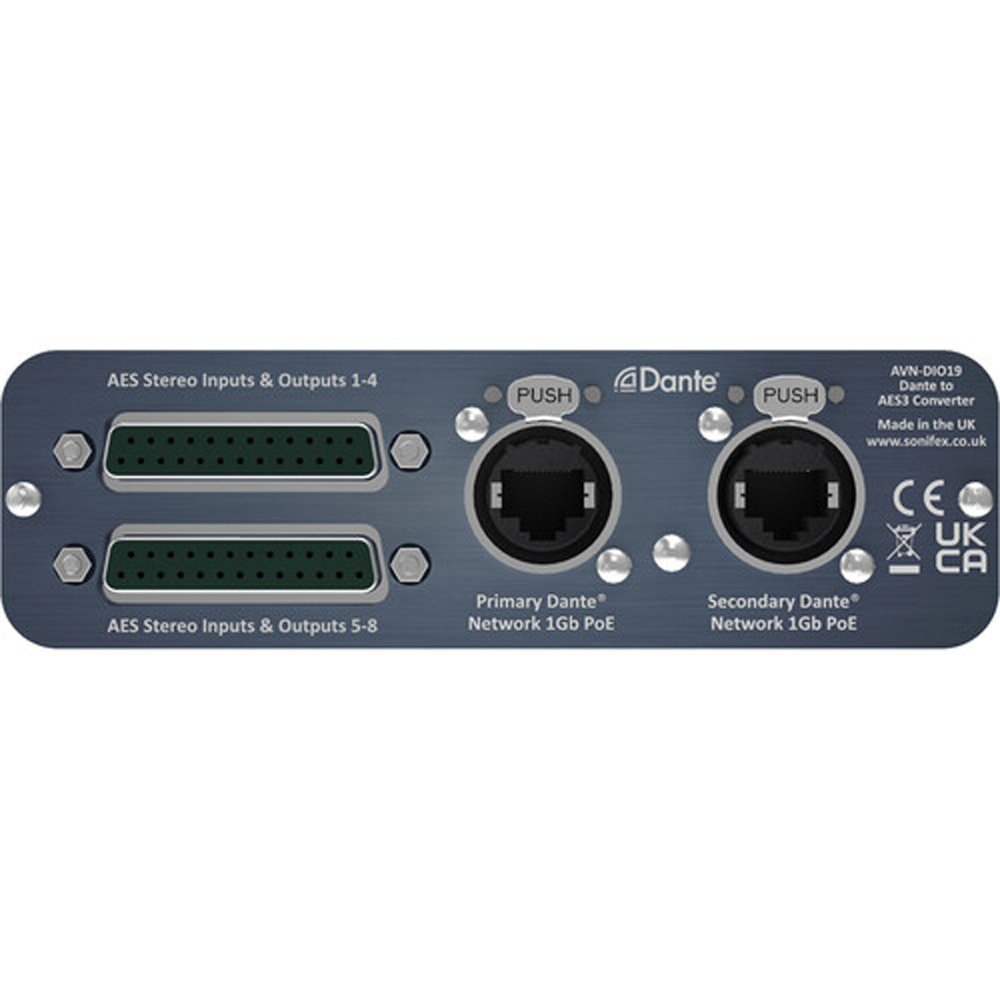

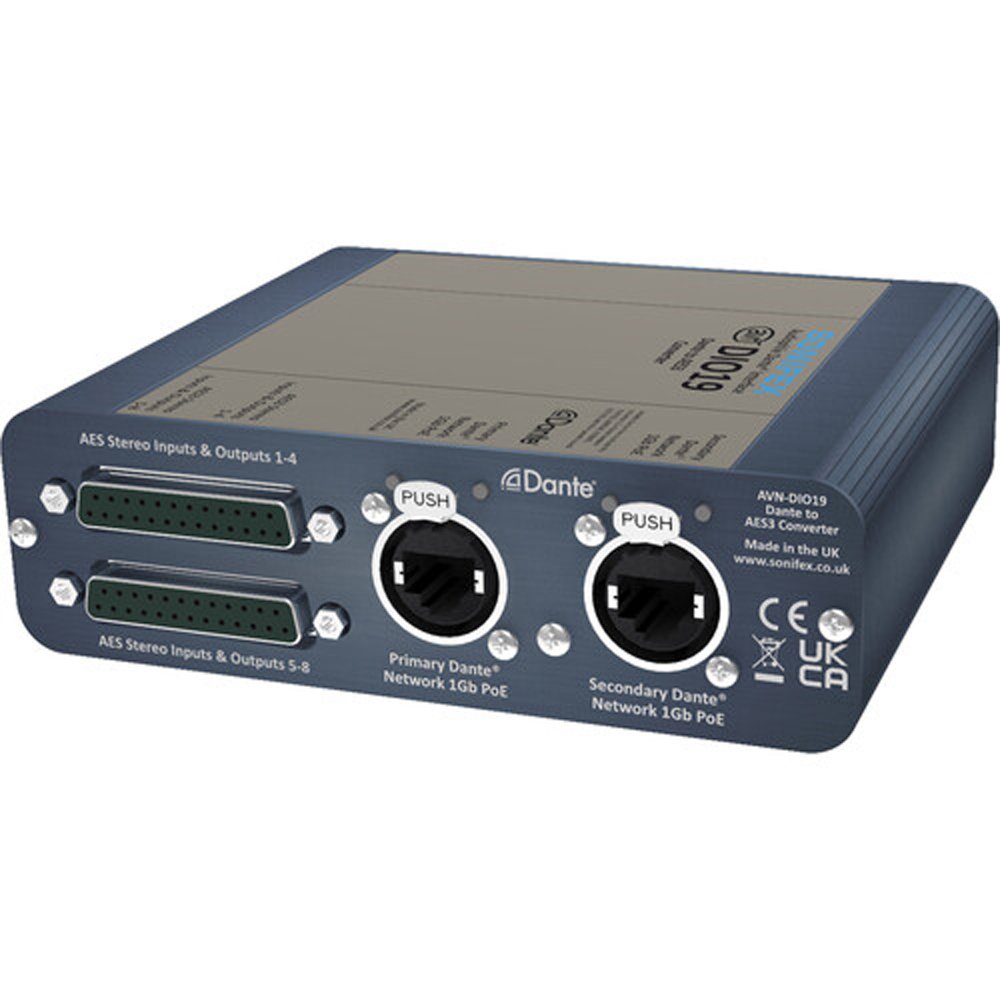

Equipped with dual Neutrik EtherCON connectors, the AVN-DIO19 supports primary and secondary Dante network ports, providing data and power redundancy. The device is powered via Power over Ethernet (PoE), streamlining installation by eliminating the need for separate power supplies. Utilizing the latest Audinate Dante chipsets, it is AES67 compatible and compliant with Dante Domain Manager, ensuring interoperability and secure network management.
Features
Dante Audio to Headphone Output: Converts Dante AoIP audio streams to high-quality headphone output.Dual Headphone Outputs: Features two independent 6.3mm stereo jack outputs for shared monitoring.Individual Volume Control: Each headphone output has its own volume adjustment for personalized listening levels.Compact and Portable: Small, rugged design ideal for on-the-go use in studios, live events, or broadcast setups.Power over Ethernet (PoE): Simplifies setup with combined power and network data over a single Ethernet connection.Dante and AES67 Support: Fully compatible with Dante and AES67 audio networking standards.Perfect for broadcasters, sound engineers, and live production teams needing reliable headphone monitoring directly from a Dante network.
Specifications

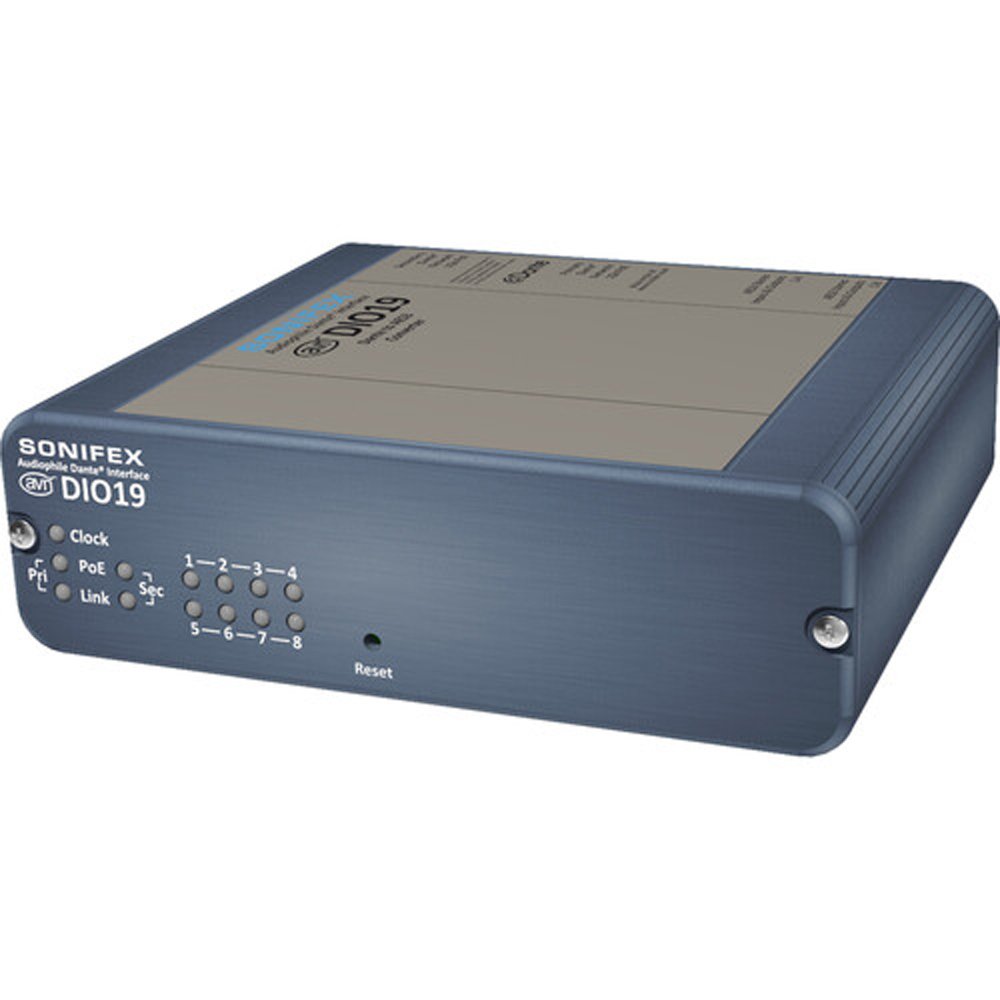

AES3 Inputs/Outputs: Eight balanced digital stereo AES3 inputs and eight outputs on two 25-way D-type connectors, supporting sample rates from 32kHz to 192kHz.Sample Rate Conversion: Each input undergoes sample rate conversion to match the Dante system's sample rate; outputs follow the Dante system sample rate.Network Connectivity: Dual Neutrik EtherCON Ethernet connectors provide primary and secondary Dante network ports for data redundancy.Power Supply: Powered via Power over Ethernet (PoE) with dual redundancy, compliant with IEEE 802.3af standards.Dante Compliance: Fully compliant with Dante standards, AES67 compatible, and Dante Domain Manager ready.Control Interface: Accessible web interface for configuration, firmware updates, and status monitoring.Indicators: Front panel LEDs display network clock status, AoIP primary and secondary link status, PoE primary and secondary power activity, and AES3 input lock status.Physical Dimensions: 14.0cm (W) x 13.6cm (D) x 4.2cm (H); up to three units can be rack-mounted in a 1U space using the AVN-DIORK rack kit.Weight: Net weight of 0.5kg; gross weight of 0.9kg.
