Sonifex AVN-DIO16
MPN #AVN-DIO01
The Sonifex AVN-DIO16 is a Dante-to-analog converter featuring four balanced XLR outputs, Neutrik etherCON connectivity, PoE support, and selectable line-up levels.

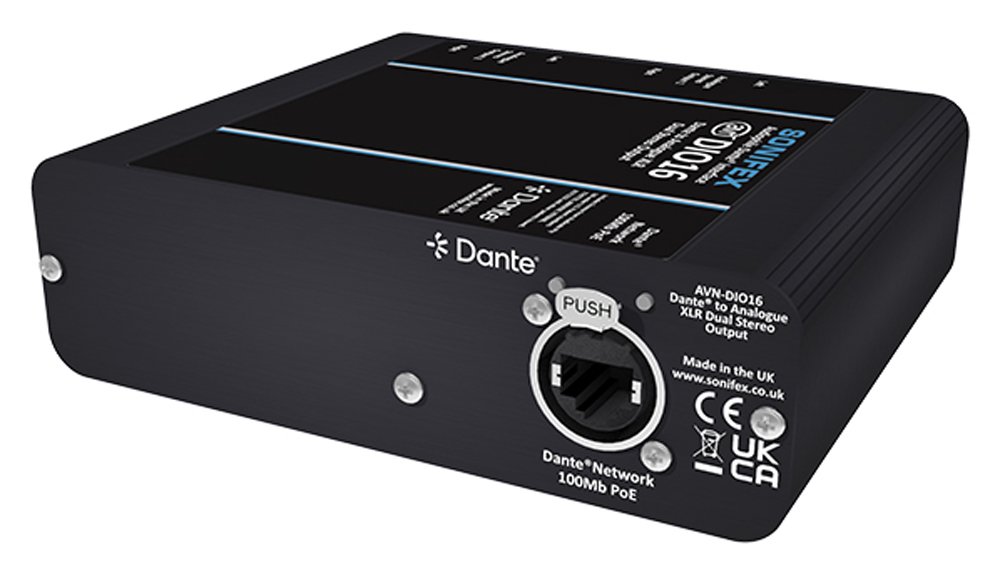

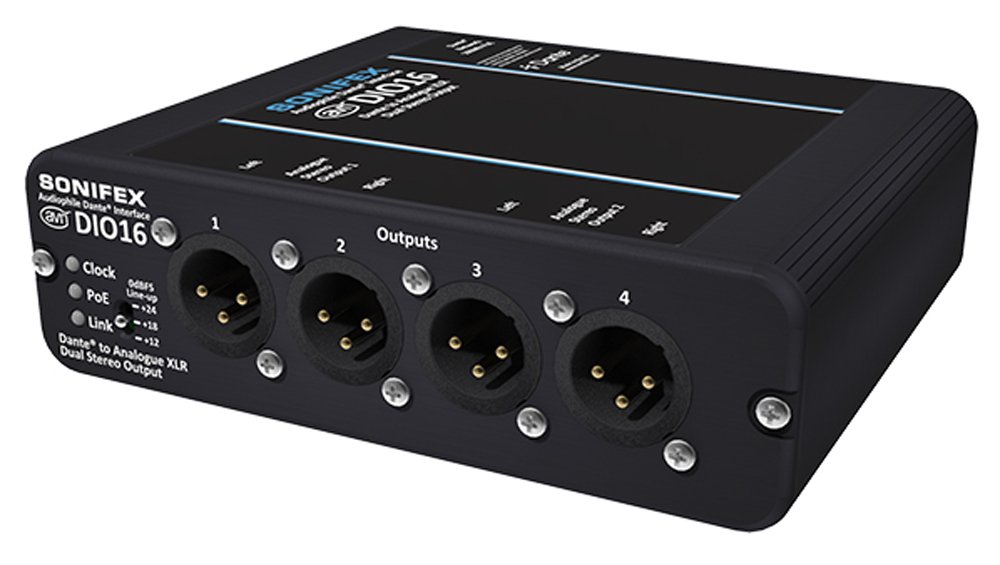

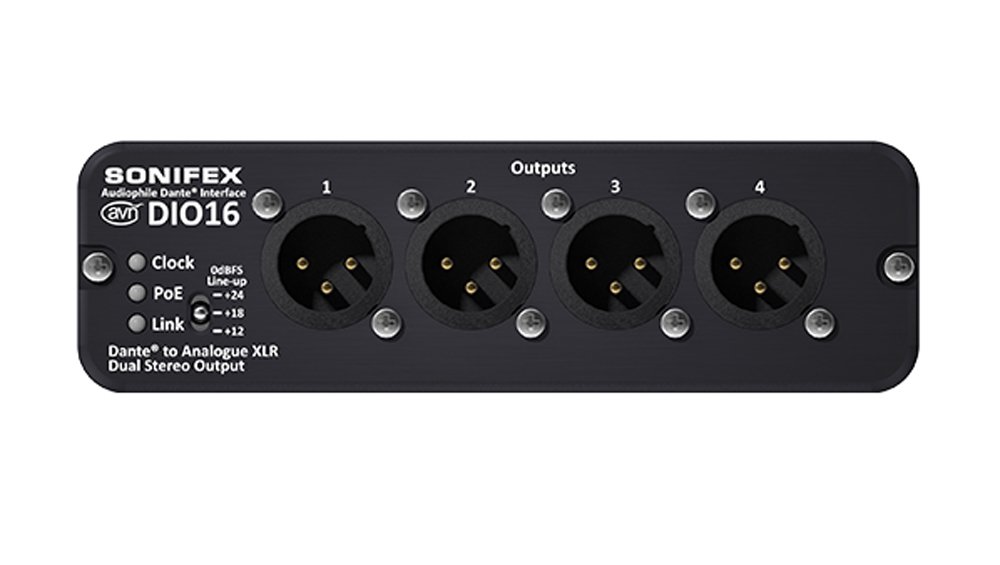

The Sonifex AVN-DIO16 is a compact audio interface designed to convert Dante Audio-over-IP (AoIP) signals into four balanced analog outputs. It features four high-quality Neutrik XLR connectors for analog output and a Neutrik etherCON connector for direct connection to a Dante network. The front panel includes a recessed toggle switch that allows users to set the global 0dBFS line-up level to +12dBu, +18dBu, or +24dBu, accommodating various system requirements. LED indicators provide visual feedback on network clock status, AoIP link status, and Power over Ethernet (PoE) activity. The AVN-DIO16 is powered via PoE, simplifying installation by eliminating the need for separate power supplies. It utilizes the latest Audinate Dante chipset, ensuring AES67 compliance and compatibility with Dante Domain Manager for secure and scalable network management. This interface serves as a reliable bridge between Dante AoIP networks and analog audio outputs, making it a valuable tool for audio professionals seeking to integrate networked audio systems with traditional analog equipment.
Features
Dual-Channel AES3 Conversion: Converts 2 channels of Dante AoIP audio to AES3 digital format and vice versa.High-Quality Digital Audio: Maintains pristine signal integrity for professional-grade sound reproduction.Versatile Connectivity: Equipped with XLR connectors for AES3 input and output, ensuring easy system integration.Compact and Rugged Design: Built for durability and portability, ideal for use in studios, live events, or broadcast setups.Power over Ethernet (PoE): Supports PoE for a streamlined setup with power and data via a single connection.Dante and AES67 Compliance: Fully compatible with Dante and AES67 standards for flexible audio networking.Perfect for audio professionals needing reliable, high-quality Dante to AES3 audio conversion in a compact and efficient unit.
Specifications
Analog Outputs: Four balanced XLR outputs with an output impedance of less than 200ohms.0dBFS Line-Up Level: Selectable global settings of +12dBu, +18dBu, or +24dBu, adjustable via a front panel recessed toggle switch.Frequency Response: 20Hz to 20kHz, +0/-0.5dB (referenced at 1kHz).Total Harmonic Distortion + Noise (THD+N): Less than -100dBu at -30dBFS, measured over 20Hz to 20kHz with a 20kHz bandwidth.Dynamic Range: 120dB with a 20kHz bandwidth.Crosstalk: Less than -110dB.Network Interface: Neutrik etherCON (RJ45 compatible) supporting 100Mbps Ethernet connectivity.AoIP Standard: Dante protocol with AES67 support; compatible with Dante Domain Manager.Channels: Four receive channels; supports two receive flows.Sample Rates: 44.1kHz, 48kHz, 88.2kHz, and 96kHz with PCM encoding at 16, 24, or 32 bits.Clock Source: Selectable between internal (PTP Leader) or network PTP Leader.Power Supply: Powered via Power over Ethernet (PoE) standard 802.3af Class 0 PD; typical power usage of 6W.Indicators: Front panel LEDs display network clock status, AoIP link status, and active PoE power.Dimensions: 14.0cm (W) x 13.6cm (D) x 4.2cm (H).Weight: Net weight of 0.42kg; gross weight of 0.56kg.
