Sonifex AVN-DIO15
MPN #AVN-DIO01
The Sonifex AVN-DIO15 is a 4-channel analog-to-Dante converter featuring balanced XLR inputs, Neutrik etherCON connectivity, PoE support, and adjustable line-up levels.

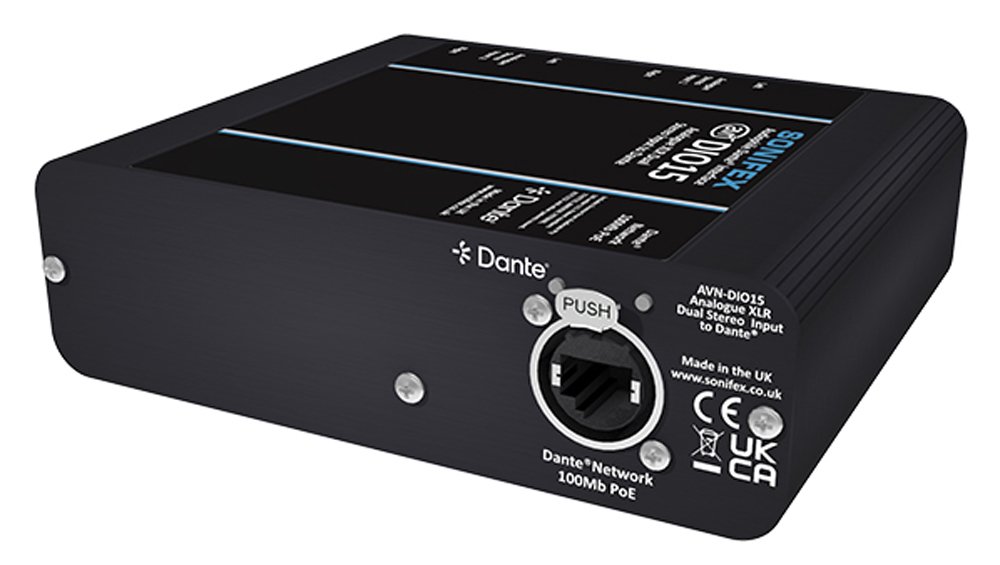

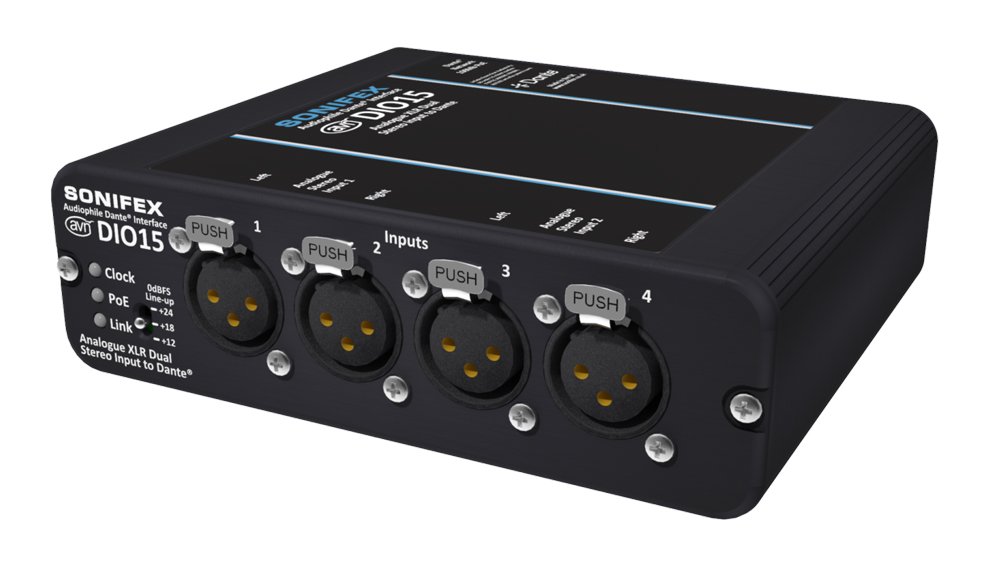

The Sonifex AVN-DIO15 is a compact audio interface designed to integrate up to four balanced analog XLR inputs into a Dante Audio-over-IP (AoIP) network. Each input utilizes high-quality Neutrik XLR connectors, ensuring reliable and professional-grade connections. The device connects to the Dante network via a Neutrik etherCON connector, providing a robust and secure network interface.
Users can select a global 0dBFS line-up level of +12dBu, +18dBu, or +24dBu through a front-panel recessed toggle switch, allowing for flexible integration into various audio environments. Front-panel LEDs indicate network clock status, AoIP link status, and active Power over Ethernet (PoE), offering clear visual feedback on operational status.
Features
Dual Stereo Line Outputs: Provides two pairs of balanced analog line outputs via XLR connectors for seamless audio playback from Dante AoIP networks.High-Quality Conversion: Delivers precise and clean audio output for professional applications.Output Level Control: Features adjustable coarse (-10dBV/+4dBu) and fine (±12dB) level settings for optimal signal management.Real-Time Monitoring: Includes tri-color LED indicators for visual monitoring of audio levels on each output.Power over Ethernet (PoE): Uses PoE via a Neutrik etherCON connector for combined power and network data.Compact and Portable Design: Rack-mountable with the AVN-DIORK kit, fitting up to three units in a 1U rack space.Dante and AES67 Support: Fully compatible with Dante networks and AES67 standards for flexible integration.
Ideal for studios, live productions, and broadcast setups requiring high-quality analog audio output from Dante networks.
Specifications
Analog Inputs: Four balanced XLR inputs with an input impedance of 5k?.0dBFS Line-Up Level: Selectable global settings of +12dBu, +18dBu, or +24dBu, adjustable via a front panel recessed toggle switch.Frequency Response: 20Hz to 20kHz, +0/-0.2dB (referenced at 1kHz).Total Harmonic Distortion + Noise (THD+N): Less than -118dBFS at -12dBu input level, measured over 20Hz to 20kHz with a 20kHz bandwidth.Dynamic Range: 120dB with a 20kHz bandwidth.Crosstalk: Less than -110dB.Common Mode Rejection: Greater than 60dB at 1kHz.Network Interface: Neutrik etherCON (RJ45 compatible) supporting 100Mbps Ethernet connectivity.AoIP Standard: Dante protocol with AES67 support; compatible with Dante Domain Manager.Channels: 4 transmit channels; supports 2 transmit flows.Sample Rates: 44.1kHz, 48kHz, 88.2kHz, and 96kHz with PCM encoding at 16, 24, or 32 bits.Clock Source: Selectable between internal (PTP Leader) or network PTP Leader.Power Supply: Powered via Power over Ethernet (PoE) standard 802.3af Class 0 PD; typical power usage of 6W.Indicators: Front panel LEDs display network clock status, AoIP link status, and active PoE power.Dimensions: 14.0cm (W) x 13.6cm (D) x 4.2cm (H).Weight: Net weight of 0.42kg; gross weight of 0.56kg.
