Dual microphone input to Dante converter with adjustable gain, high-pass filter, phantom power, PoE, and Neutrik etherCON connector for seamless AoIP integration.

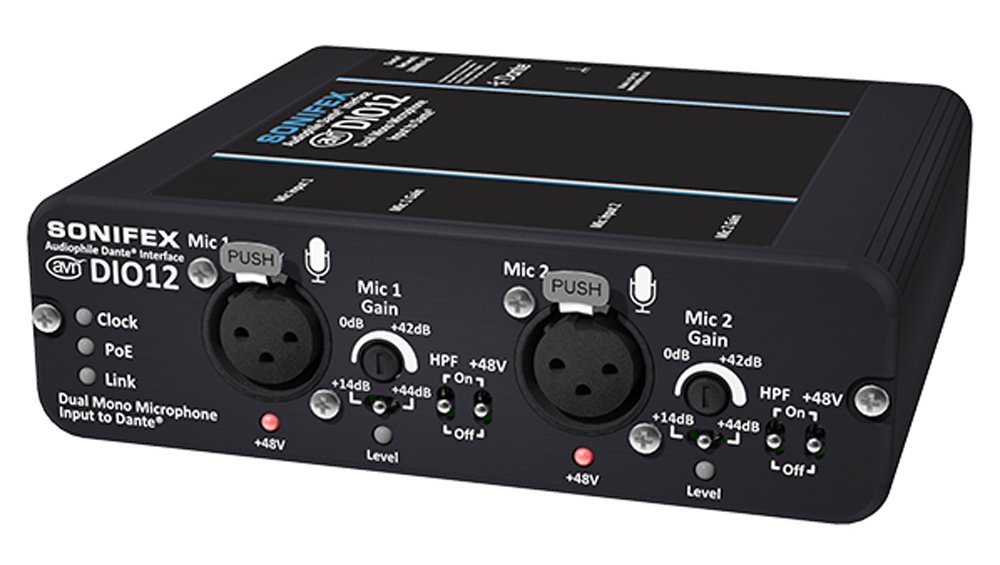

The Sonifex AVN-DIO12 is a dual microphone input to Dante converter, designed to integrate two balanced analog XLR microphone inputs directly into a Dante Audio-over-IP network. Each input offers adjustable coarse and fine gain controls, allowing for precise amplification settings tailored to various microphone sensitivities. A high-pass filter can be engaged to attenuate frequencies below 125Hz, effectively reducing unwanted low-frequency noise. For condenser microphones, 48V phantom power is available and can be activated individually for each input. Tri-color LED indicators provide real-time visual feedback on audio levels, assisting in optimal gain staging. The unit connects to the network via a Neutrik etherCON connector and is powered through Power over Ethernet (PoE), streamlining installation by combining data and power delivery. Compliant with AES67 and Dante Domain Manager, the AVN-DIO12 ensures compatibility and secure management within diverse Dante network environments.
Caractéristiques
Dual Microphone Integration: Features two balanced analog XLR inputs for seamless connection of microphones to Dante AoIP networks.
Adjustable Gain Control: Provides coarse (20dB/50dB) and fine (0dB to 36dB) gain adjustments for precise input level management.
High-Pass Filter: Each input includes a switchable high-pass filter, attenuating frequencies below 125Hz at a 6dB/octave roll-off to reduce unwanted low-frequency noise.
Phantom Power Supply: Offers 48V phantom power with individual toggle switches and LED indicators for each microphone input, accommodating condenser microphones.
Visual Level Monitoring: Equipped with tri-color LEDs per input to display audio levels, aiding in optimal gain setting.
Power over Ethernet (PoE): Utilizes PoE via a Neutrik etherCON connector for combined power and data redundancy, simplifying installation.
Dante and AES67 Compliance: Fully compatible with Dante networks, AES67 standards, and Dante Domain Manager for versatile audio networking.
Compact and Rack-Mountable: Designed for portability and can be rack-mounted using the AVN-DIORK kit, accommodating up to three units in a 1U rack space.
Ideal for broadcast and professional audio applications requiring high-quality microphone integration into Dante networks.
Spécifications
Microphone Inputs: Two balanced analog XLR inputs with latch locks.
Gain Adjustment: Coarse gain settings of +20dB or +50dB via toggle switches; fine gain adjustable from 0dB to 36dB using trimmer pots.
High-Pass Filter: Selectable high-pass filter at 125Hz with a 6dB/octave roll-off.
Phantom Power: Switchable +48V phantom power with LED indicators for each input.
Audio Performance:
Equivalent Input Noise (E.I.N.): 129dBu, 20kHz bandwidth, max gain, Rs=200?.
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz).
Total Harmonic Distortion + Noise (THD+N): <0.01%, -32dBu input, 40dB gain, 20Hz to 20kHz, 20kHz bandwidth.
Common Mode Rejection: >60dB at 1kHz.

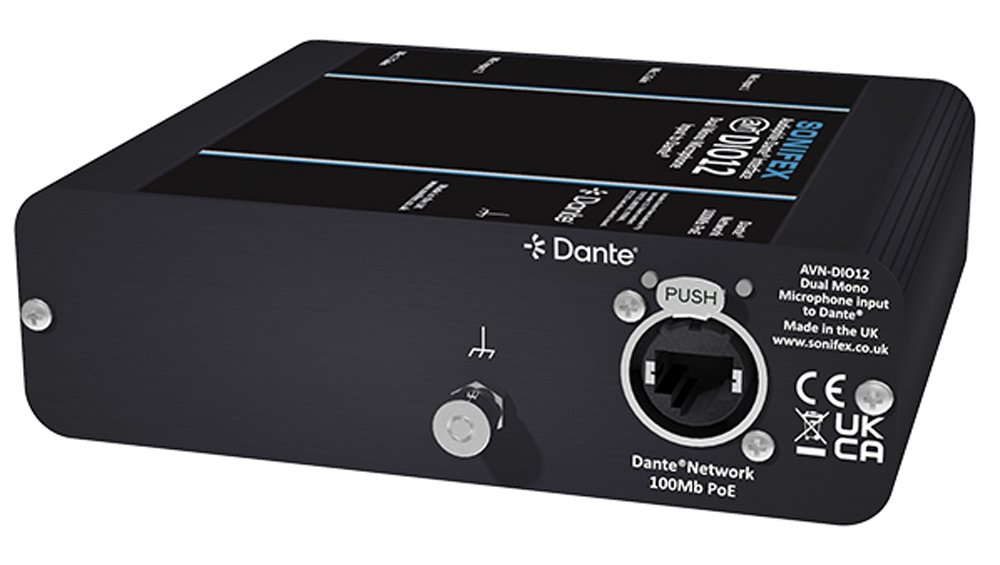

Network Interface: Neutrik etherCON connector for Dante AoIP network connectivity.
AoIP Compliance: Dante standard with AES67 support; Dante Domain Manager compliant.
Power Supply: Powered via Power over Ethernet (PoE), 802.3af Class 0.
Indicators: Tri-color level LEDs for audio signal monitoring; additional LEDs for clock, PoE, and sync status.
Physical Dimensions: 14.0cm (W) x 13.6cm (D) x 4.2cm (H).
