Sonifex AVN-DIO10
MPN #AVN-DIO01
Dante to 3G/HD/SD-SDI converter with 16-channel de-embedding/embedding, PoE, AES67 support, dual Ethernet ports, and web-based configuration.

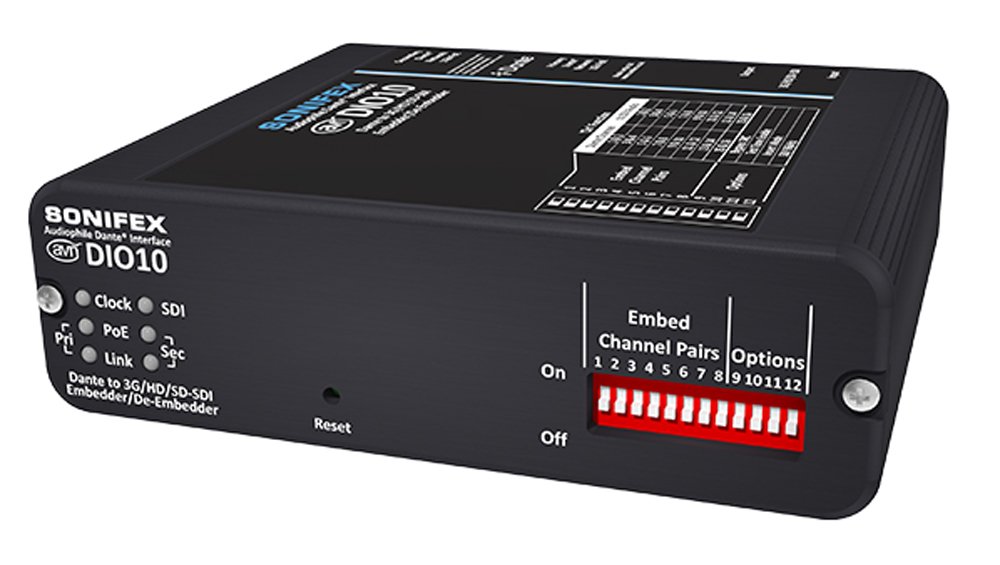

The Sonifex AVN-DIO10 is a compact audio/video interface that facilitates the integration of legacy 3G/HD/SD-SDI equipment with Dante Audio-over-IP (AoIP) networks. It enables simultaneous embedding and de-embedding of up to 16 audio channels, allowing seamless audio routing between SDI sources and Dante networks.
The device de-embeds audio channels from an SDI feed and maps them onto the Dante network using Dante Controller software. Concurrently, it re-embeds audio channels from the Dante network back into the SDI output. The AVN-DIO10 supports both 48kHz and 96kHz sample rates in the embedded audio, with sample rate conversion between Dante and SDI paths.
Users can configure the unit via a web interface, which provides control over embedding settings, test tone generation, and operational modes. The device can operate in loop-through mode, where the input is fed directly to the output, or in generator mode, utilizing an integrated SDI video generator to function independently as an embedder without an existing SDI feed.
Features
AES3 Digital Audio Integration: Converts up to 2 channels of AES3 audio to Dante AoIP networks seamlessly.High-Quality Conversion: Ensures pristine digital audio transmission for professional-grade sound.Versatile Connectivity: Features a balanced AES3 XLR input and output for easy integration with existing equipment.Compact and Durable Design: Portable and robust, suitable for both studio and field use.Power over Ethernet (PoE): Uses PoE via a Neutrik etherCON connector, simplifying power and data connectivity.Dante and AES67 Compatible: Fully supports Dante audio networks and AES67 standards for flexible networking.Perfect for broadcasters and audio engineers needing reliable AES3-to-Dante integration for professional audio systems.
Specifications

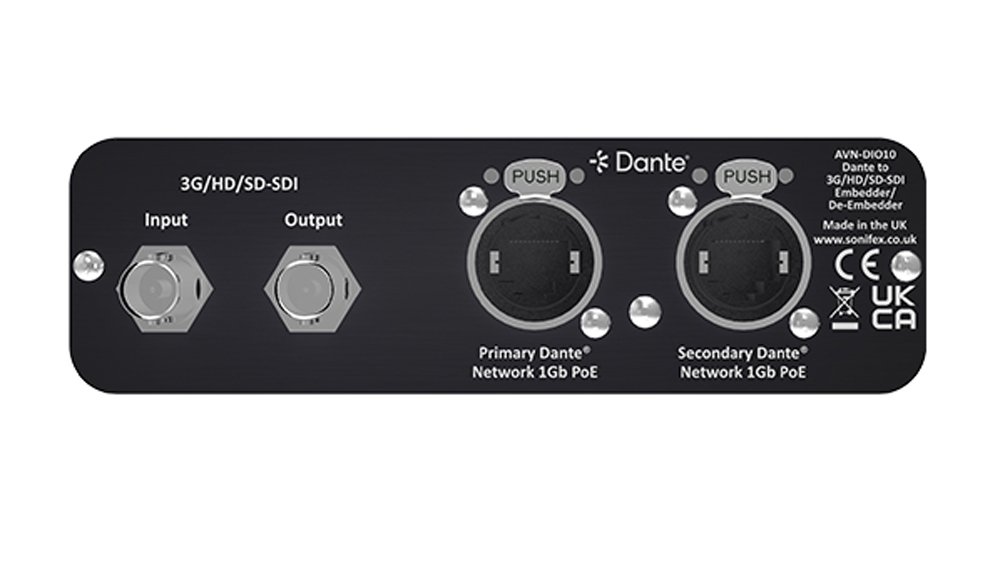

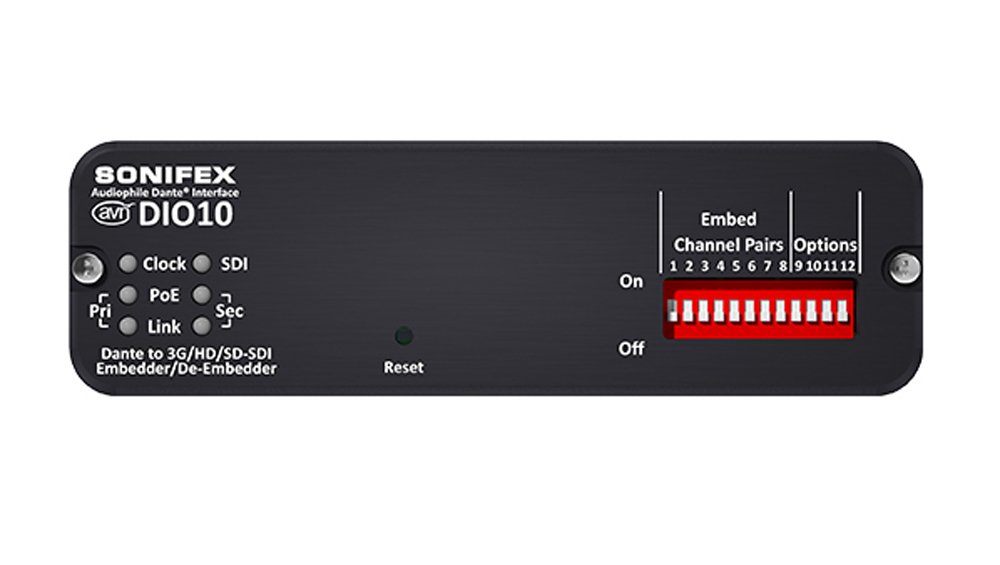

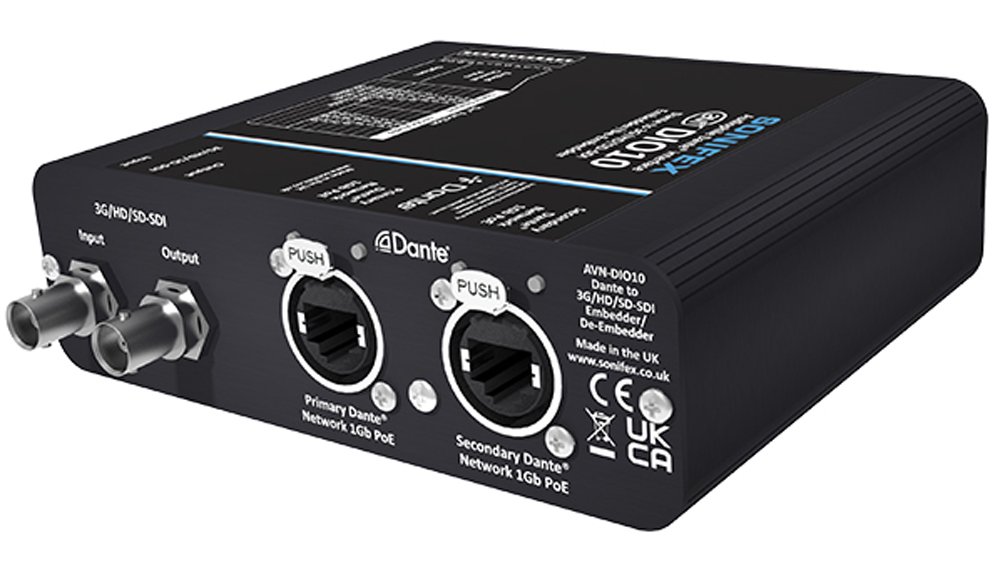

SDI Input/Output: Supports 3G-SDI, HD-SDI, and SD-SDI standards, ensuring compatibility with a wide range of video equipment.Audio Channels: De-embeds up to 16 audio channels from SDI to Dante and embeds up to 16 Dante audio channels into the SDI output.Embedding Control: Features per-channel pair embedding enable switches, allowing selective audio embedding onto the SDI output.Operating Modes:Insert Mode Enabled: Overwrites existing SDI audio selectively per channel pair.Insert Mode Disabled: Clears incoming SDI audio channels and allows selective embedding per channel pair.Test Tone Mode: Provides 1kHz, 2kHz, 3kHz, and 4kHz signals on channels 1 to 4, respectively, for testing downstream SDI audio outputs without external sources.Network Connectivity: Equipped with Neutrik EtherCON connectors for primary and secondary Dante network ports, offering data redundancy.Power Supply: Powered via Power over Ethernet (PoE) with primary and secondary ports for power redundancy.Compliance: AES67 support and Dante Domain Manager compliance ensure seamless integration into existing AoIP infrastructures.Indicators: Front panel LEDs display network clock status, SDI lock status, AoIP link status, and PoE power activity.Dimensions: Compact form factor; up to three units can be rack-mounted in a 1U space using the AVN-DIORK rack kit.
