Sonifex AVN-DIO01

MPN #AVN-DIO01

$682.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

Dante to analog XLR converter with balanced stereo outputs, 120dB dynamic range, Neutrik EtherCon, and PoE for reliable, high-quality audio integration.

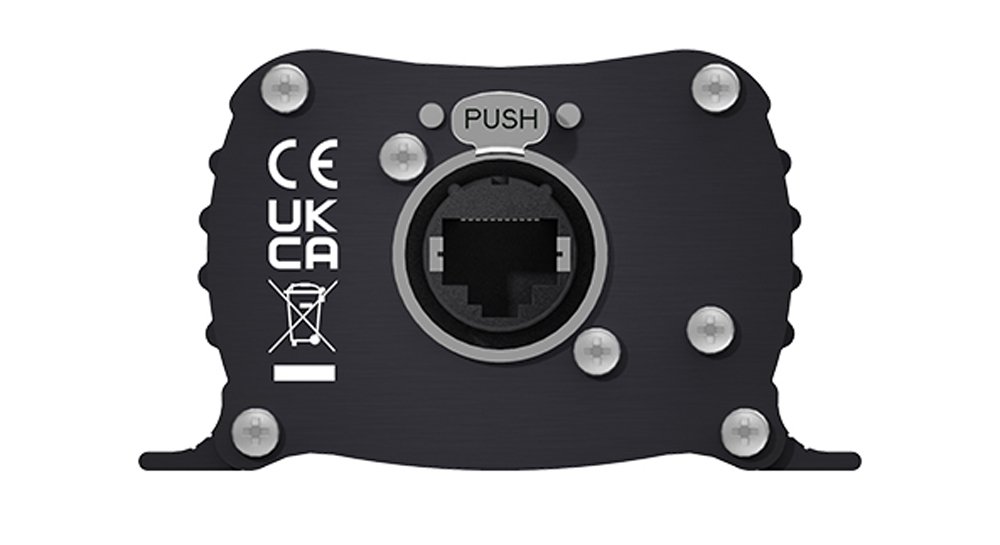

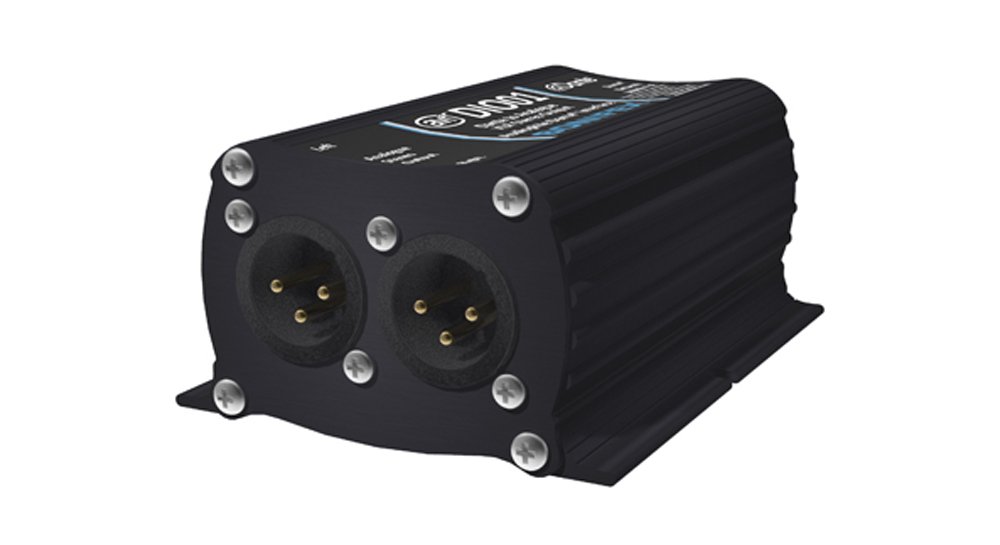

The Sonifex AVN-DIO01 is a compact and robust audio interface that converts Dante Audio-over-IP (AoIP) network signals to balanced analog stereo outputs. It features two high-quality XLR outputs and a Neutrik EtherCon connector for seamless integration into Dante networks. The device offers a dynamic range exceeding 120dB, ensuring superior audio fidelity. Powered via Power over Ethernet (PoE), it simplifies installation by eliminating the need for separate power supplies. The AVN-DIO01 is AES67 compatible and compliant with Dante Domain Manager, providing flexibility and enhanced network management capabilities.

Features

Seamless Audio Conversion: Converts Dante AoIP signals to analog audio with high-fidelity sound quality.

Balanced Stereo Output: Provides a professional-grade stereo analog output via XLR connectors.

Plug-and-Play Operation: Simple setup with automatic Dante network integration.

Compact and Durable: Small, rugged design for easy portability or fixed installations.

Wide Compatibility: Integrates effortlessly into existing Dante-enabled audio systems.

Perfect for audio professionals needing reliable Dante-to-analog conversion in studios, live events, or installations.

Specifications

Analog XLR outputs:

Output impedance: <200 Ohms balanced

0dBFS line-up: +18dBu

Frequency response: 20Hz to 20kHz, +0/-0.5dB (600 Ohms load, ref 1kHz)

THD+N: <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW

Dynamic range: 120dB, 20kHz BW

Crosstalk: <-110dB

Dante interface:

Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz

Encoding: PCM 16, PCM 24, PCM 32

Power:

PoE standard: 802.3af Class 0 PD

Power range: 0.44W to 12.94W

Typical PSE power usage: 6W

Maximum PSE power usage: 15.4W

Dimensions:Raw: 10.6cm (W) x 7.3cm (D) x 4.3cm (H)

Boxed: 17.4cm (W) x 9.5cm (D) x 5.6cm (H)

Weight:Net: 0.2kg / Gross: 0.3kg
