MPN #AVN-DIO01

$2606.00

Financing available
Free shipping in Canada. Conditions

16-channel analog-to-Dante converter with Neutrik XLR outputs, PoE, adjustable line-up levels, and front-panel status LEDs for seamless audio integration.

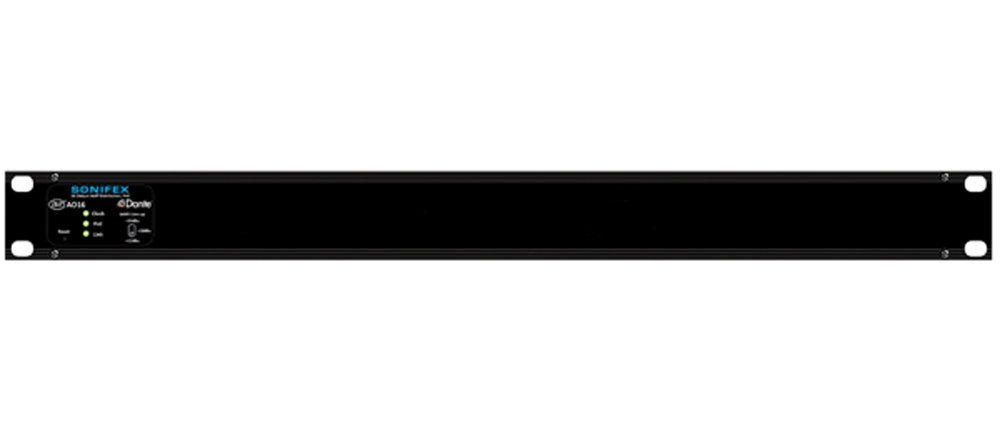

The Sonifex AVN-AO16 is a 1U rack-mount audio interface that converts up to sixteen analog outputs from the Dante Audio-over-IP networking standard. This cost-effective unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all setup, except line-up levels, done via the standard Dante Controller software. Power is supplied via Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power supplies.
The Sonifex AVN-AO16 serves as a reliable bridge between Dante AoIP networks and analog audio outputs, making it a valuable tool for audio professionals seeking to integrate networked audio systems with traditional analog equipment.
  • 16-Channel Output: Converts up to 16 Dante AoIP audio streams to balanced analog outputs.
  • High-Quality Audio: Delivers pristine sound with low-latency, professional-grade performance.
  • Flexible Connectivity: Features balanced analog outputs via DB25 connectors for seamless integration.
  • User-Friendly Web Control: Configure and manage routing through an intuitive web interface.
  • Rack-Mountable Design: Compact and durable chassis for professional studio and live environments.
  • Perfect for broadcasters, studios, and sound engineers requiring reliable Dante-to-analog audio conversion.
  • Frequency Response: 20Hz to 20kHz, +0/-0.5dB.
  • Total Harmonic Distortion + Noise (THD+N): Less than -107dBFS at -30dBFS, 20Hz to 20kHz, 20kHz bandwidth.
  • Network Connectivity: 1 x RJ45 Dante connector supporting 1Gbps or 100Mbps Ethernet.
  • AoIP Standard: Dante with AES67 support; Dante Domain Manager ready.
  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz.
  • Power: Powered via PoE (802.3af Class 0 PD); typical power usage of 7W.
  • Dimensions: 48cm (W) x 11cm (D) x 4.3cm (H) (1U rack-mountable).
  • Weight: Net: 1.1kg; Gross: 1.6kg.
