Sonifex AVN-AIO8R

MPN #AVN-DIO01

$2858.00

Financement disponible

Soyez le premier à écrire une évaluation

Livraison gratuite au Canada. Conditions

8-in/8-out analog-to-Dante converter with Neutrik XLR, dual Ethernet for redundancy, PoE, AES67 support, and adjustable line-up levels for pro audio setups.

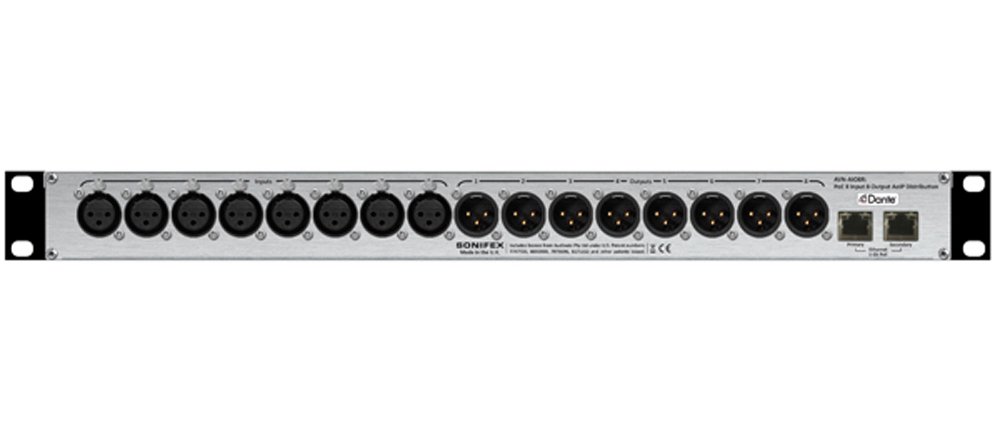

The Sonifex AVN-AIO8R is a 1U rack-mount audio interface designed to convert up to eight analog inputs and eight analog outputs to and from Dante Audio-over-IP networks. It offers balanced analog connectivity through Neutrik XLR connectors, ensuring reliable and high-quality audio integration. Dual Ethernet ports support redundancy or switched modes, providing continuous audio routing even in the event of a network failure.

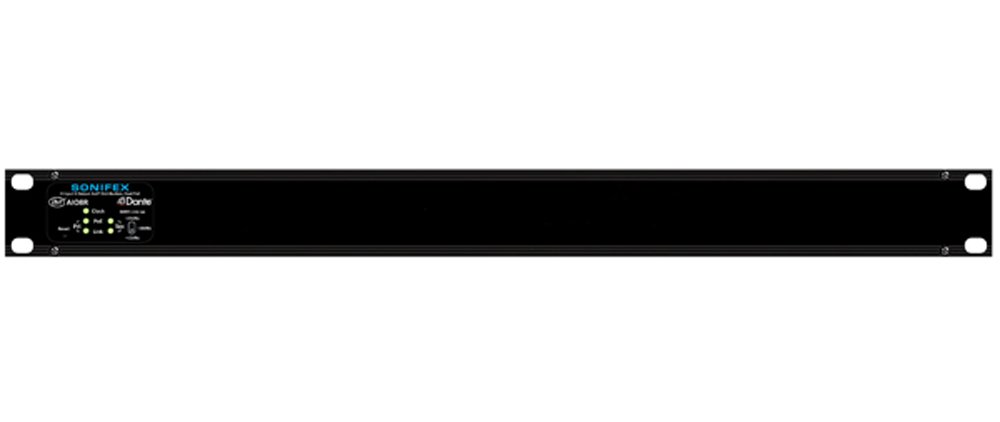

The device is powered via Power over Ethernet (PoE) through either or both Ethernet ports, simplifying installation and offering power supply redundancy. Adjustable global 0dBFS line-up levels (+12dBu, +18dBu, or +24dBu) allow for flexible integration into different audio environments. Front-panel LEDs display status for power, network link, and clock synchronization, offering clear operational feedback.

Caractéristiques

8-Channel Bi-Directional Conversion: Seamlessly integrates 8 analog inputs and outputs with AES67 AoIP networks.

Redundant Network Support: Dual Ethernet ports ensure uninterrupted audio streams in critical applications.

Pristine Audio Quality: High-resolution conversion maintains clarity and fidelity across all channels.

Flexible Connectivity: Features balanced analog I/O via DB25 connectors and AES67 AoIP over redundant Ethernet.

Web-Based Configuration: Easily manage routing and settings through an intuitive web interface.

Rack-Mountable Design: Robust and compact chassis for professional environments.

Ideal for broadcast, studio, and live applications needing reliable analog-to-AES67 integration with network redundancy.

Spécifications

AoIP standard: Dante with AES67 support and Dante Domain Manager compatibility

Channels: 8 analog inputs and 8 analog outputs

Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Input impedance: >20k? balanced

Output impedance: <50? balanced

0dBFS line-up level: Selectable +12dBu, +18dBu, or +24dBu

Frequency response: 20Hz to 20kHz, ±0.2dB (inputs), ±0.5dB (outputs)

THD+N: Less than -110dBFS (inputs), less than -107dBFS (outputs)

Network connectivity: Dual RJ45 ports for switched or redundant operation at 1Gbps or 100Mbps

Power: PoE (802.3af Class 0), typical power usage 7.5W

Dimensions: 48cm (W) x 11cm (D) x 4.3cm (H) (1U rack-mountable)

Weight: Net 1.1kg
