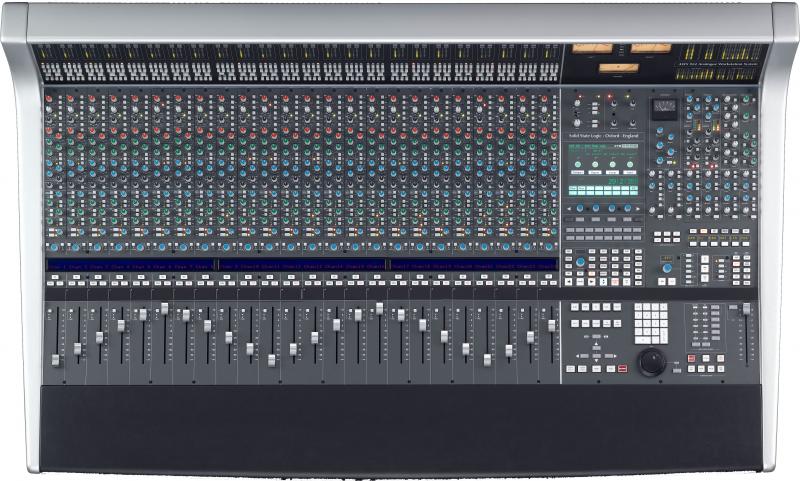

Solid State Logic AWS 924
Designed for mid-scale commercial recording and production facilities, the AWS 924 is a 24 inputs and 24 mic pre's within a compact 24 fader frame.
The AWS (Analogue Workstation System) reinvented the professional production console by combining classic SSL SuperAnalogue? console technology with comprehensive DAW control hardware in a single work surface. The AWS is now used by leading international recording artists, producers and engineers and has shaped expectations for session workflow within today's and indeed tomorrows' production environments. The spring 2015 release of AWS elta is another step in the constant evolutionary development that has characterised its enormously successful life. The new console marks the introduction of elta-Control (-Ctrl), a completely new analogue console automation platform for SSL studio technology that unites the very best of automation in the analogue console domain with DAW based workflow. All new AWS consoles will be elta models and console upgrades are available for all preceding models.
Designed for mid-scale commercial recording and production facilities, the AWS is available with 16 inputs (AWS 916), 24 inputs (AWS 924) or 48 inputs (AWS 948) within a compact 24 fader frame. The AWS 916 has 16 mic pre's, the AWS 924 and 948 have 24 mic pre's. The AWS 916 & 924 have mono channel strips and the 948 has stereo/dual mono channel strips that offer a second line level input per channel to provide 48 summing channels. All models deliver pristine SuperAnalogue? summing, 24 ultra-clean SSL SuperAnalogue mic pre's, classic SSL dual curve EQ on every channel, two assignable SSL Dynamics channels, legendary Stereo Bus Compressor, TotalRecall? and full 5.1 monitoring. In addition to on board classic SSL Automation, all models feature the new -Ctrl system.
The AWS also features Ethernet connectivity for streamlined hardware control over your entire Digital Audio Workstation environment. AWS delivers elegant, ergonomic physical control with dedicated heavy duty DAW transport, V-Pot multifunction encoders with position indicating LED's, Digital Scribble Strips, DAW fader mode, global and channel routing control and built-in TFT display for advanced plug-in editing. Project Session Management is kept simple through SSL's proprietary Logictivity interface.
The AWS is an SSL SuperAnalogue? console, featuring the audio performance specifications that have established the benchmarks by which other manufacturers are measured. Exceptionally low THD, noise floor & crosstalk levels keep your audio absolutely pristine, while our legendary headroom carries every nuance of your audio and allows engineers to mix 'hotter' without distortion.
The AWS 916/924 Channel Input section features a balanced Line Input with +/-20dB of gain and a world class SuperAnalogueTM Mic Amp featuring continuous mic gain control (+15 to +75dB), phase reverse and switchable 48V phantom power. An Instrument D.I allows for high impedance sources such as guitars. The Flip control overrides the Master Mic/Line input selection assigned globally via the console centre section.
Taken from the legendary XL 9000 K Series console and its current successor Duality, the AWS 924 features a highly flexible EQ section, switchable between a default E Series operation and the characteristic G Series curves and control interaction. The INS IN switch routes the channel via the balanced Insert Send and Return. PRE places the Insert before the EQ section. In conjunction with the dynamics CHIP and CHOP routing keys, the order of the EQ, INSERT and DYNAMICS blocks can be re-ordered.
HPF - 18dB/Octave high-pass filter with detente bypass position
G-EQ Curve switch - toggles between the default E-Series and G-Series tonal characteristics and control interaction
HF - High frequency shelving equalizer switchable to fixed Q parametric response via the Bell switch
HMF - High frequency parametric mid-band EQ section
LMF - Low frequency parametric mid-band EQ
LF - Low frequency shelving EQ Switchable to fixed Q parametric response via the Bell switch
Routing & Sends
Each channel has access to 2 main Stereo Busses (RECORD and MIX) in addition to 2 Stereo Cue busses and 4 mono FX sends. Every AWS Channel features a Direct Channel Output (CH OP) and can also feed 8 independent Track Busses. SSL's unique "EFX" system is present on all channels significantly enhancing creativity by allowing free assignment of send controls.
Digital Scribble Strips
When the AWS is in analogue focus mode the Digital Scribble Strips display name and parameter information for the selected analogue signal path. When the AWS is in DAW focus mode they then display DAW channel and processing parameters dependent on your chosen DAW and selected functions.
The AWS features touch sensitive 100mm motorised faders. In analogue mode they control the analogue signal path of either the Channel input or DAW return path. In DAW mode they default to control over channel level control but can be used for other controllable DAW parameters.
Combination of SuperAnalogue? console and advanced DAW controllerSSL SuperAnalogue? mix bus provides pristine audio foundationsSSL SuperAnalogue mic pre's provide transparent record pathInnovative Dual Path Channel with three versatile operating modes (948 only)NEW! elta-Control advanced integration of console and DAW automation. Read moreAWSomation SSL motorised fader mix automation based on the heritage of G and K series UltimationVersatile 4 band channel EQ, assignable Dynamics and SSL Master Bus Compressor4-Band EQ design with independent E/G curve switching of HF/LF (Stereo on 948 only)5.1 Surround monitoring and Monitor calibration including Bass managementMIDI over Ethernet multi layer DAW workstation controlDigital Scribble Strips for console and DAW dataElegant project setup via SSL Logictivity Remote Browser and SD card storageSSL's unique trademarked TOTAL RECALL? system with 'TR Autoscan'Responsible 'green' manufacturing and reduced power consumptionCompact 24 fader frame ideal for small control rooms
