UPC/EAN #878076001531     MPN #729720X2

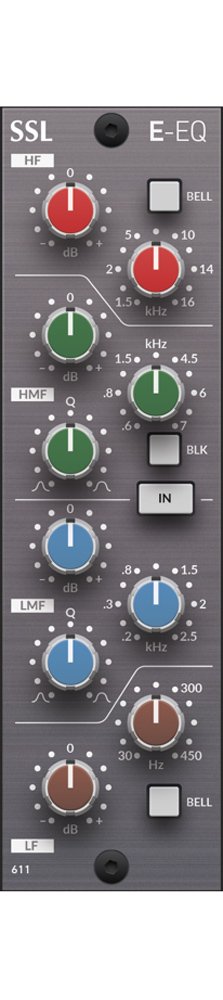

Solid State Logic 500-series E-EQ Equaliser Module


Save 16.1%, MSRP $1549.99
Financing available
Free shipping in Canada. Conditions

Mono 4-band parametric equalizer module with dual-mode design for 500 series racks

The E-Series EQ Module for 500 Series racks reproduces the legendary sonic signature of an early 80's classic, the Solid State Logic SL 4000 E console channel strip, which has featured on countless classic recordings from the 1980's to the present.

The E-Series EQ Module features two different EQ's found on editions of the console produced between
1981 and 1989. Each EQ has unique response curves and tonal character.

Historically the type of EQ fitted in an individual console was distinguished by the colours used on the LF
knob caps so the two flavours have become known as the 'Brown' and 'Black' EQ's. On the E Series EQ
Module you can switch between these two different flavours of EQ that have been loved by generations of
professional producers.

"Brown Knob" EQ - the original SSL EQ, sweet and musical 15dB of cut/boost, and a special design that ensures the 3dB up/down points for each band fall at the same musical interval from the center frequency. No matter where you cut or boost the 611EQ, the results sound musical and natural.

"Black Knob" EQ - a more aggressive EQ for modern styles In the mid-'80s, SSL developed the 242 EQ circuit, or the "Black Knob" EQ to be found on later E Series consoles. It's more aggressive than the Brown Knob EQ, with up to 18dB of cut or boost, and a different control law that gives you much tighter control over low frequencies. The module's BLK switch gives you this alternative EQ characteristic at the press of a button.
  • Immortal SSL 4000 E Series circuitry
  • "Black-242" and "Brown-02" twin EQ design
  • Versatile 4 band channel EQ
  • Bell curve option on HF and LF
  • Fully parametric LMF and HMF with Q
  • Based on classic 611E console channel strip
  • View more products from Solid State Logic
