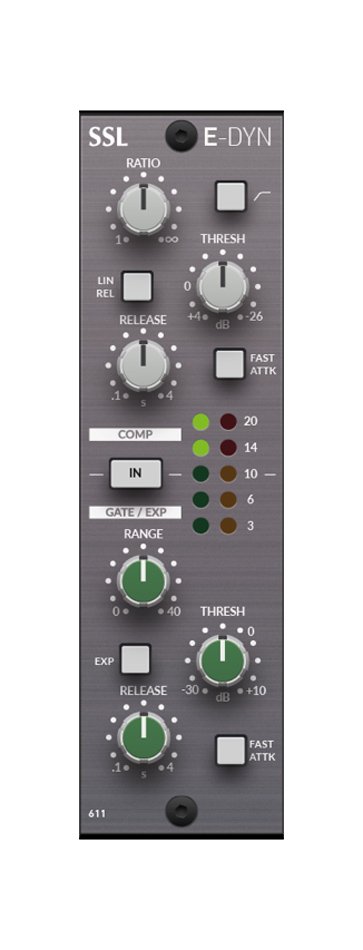

Solid State Logic 500-series E-Dyn Dynamics Module
E-Series dynamics module with compressor, limiter, expander, and gate for 500 series racks
The E Series Dynamics Module for 500 Series racks reproduces the legendary sonic signature of an early
80's classic, the SL 4000 E console channel strip, which was featured on countless 1980's recordings.
The versatile E Series Dynamics Module features a compressor/limiter and an expander/gate, both of
which return faithfully to the circuitry and key components which define the sound of the original SL
611E Series channel strip.
A true RMS converter is used in the side chain while the gain element is an all discrete design identical
to the Class A VCA chip used in the original unit. The compressor contains additional switching options
to defeat the over-easy curve and to use a linear release instead of the more usual logarithmic curve.
The result is a compressor with three distinct voices, each with its own musical character.
Producers loved the SSL SL 4000 E console for lots of reasons, not least of which is the channel dynamics
section. Perfect for maximizing the thump of a kick drum, the richness of a bass, or taming an expressive
Multiple switching options provide the right response for any sound source. The flexible design can switch between overeasy and hard-knee compression curves and switch between logarithmic and linear release curves. This flexibility combined with a classic sound is what made this dynamics processor such a legend.
Based on the channel dynamics sections of the SSL SL 4000 E consoleSwitchable over-easy/hard-knee operation for flexibilityChoose between logarithmic and linear release curves to match a wide range of materialFour tools in one: compressor, limiter, expander, and gateSide chain with RMS converter for precise operationOriginal Class A VCA replication
