Shure ULXD2/N8SB-G57
MPN #ULXD2/N8SB-G57
$1159.00
Save 20.4%, MSRP $1456.00
138 MHz tuning, Nexadyne 8/S capsule with Revonic dual transducers, supercardioid pattern, AES-256 encryption, 8.5 hr SB900B battery, 470"608 MHz range

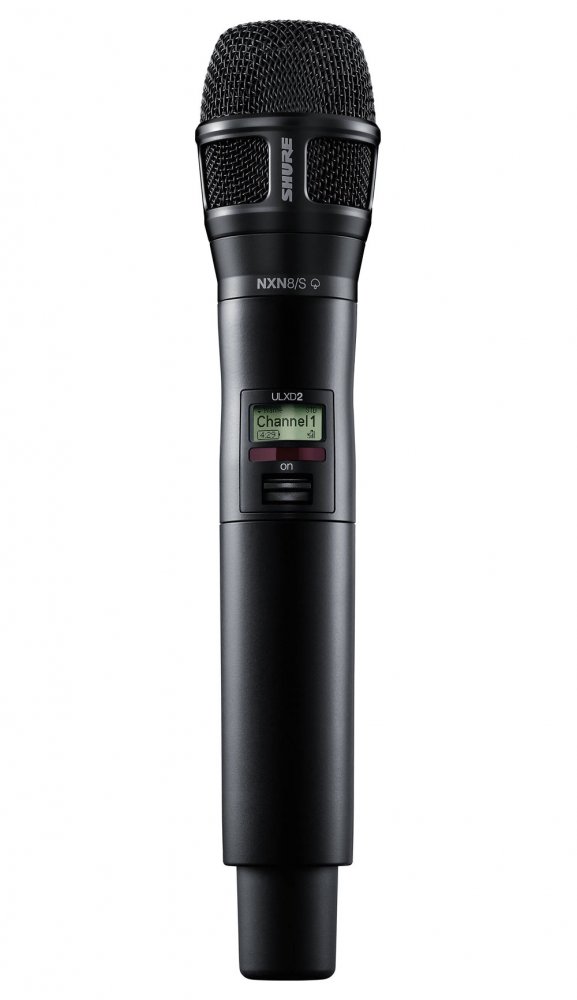

The Shure ULXD2/N8SB-G57 is a digital handheld transmitter designed for ULX-D systems, featuring the Nexadyne 8/S supercardioid dynamic capsule with Revonic dual-transducer technology. This innovative design delivers condenser-like clarity, tight directionality, and high gain before feedback-ideal for vocalists in live sound environments.
It operates in the G57 band (470"608 MHz) and offers an ultrawide 138 MHz tuning range, 24-bit/48 kHz digital audio, and AES-256 encryption. The interchangeable capsule design supports compatibility with other Shure microphone heads.
Additional features include a rugged aluminum housing, backlit LCD, IR sync, 1/10/20 mW selectable RF output, and automatic gain adjustment. The transmitter runs up to 11 hours on AA batteries or 8.5 hours using the optional SB900B rechargeable battery, with support for intelligent docked and networked charging.
Features
Nexadyne 8/S Supercardioid Capsule: Focused directional pickup with strong feedback rejection, designed for high-clarity vocal performances.Revonic Dual-Transducer Technology: Dual-engine design improves sound clarity, reduces handling noise, and cancels vibration without needing shock mounts.Condenser-Like Audio Quality: Produces natural and detailed vocals with extended high-end response using dynamic mic architecture.Wide 138 MHz Tuning Range: Provides flexible use across wide geographic areas and frequency environments.Interchangeable Capsule System: Compatible with other Shure capsules like KSM9, SM58, Beta 87A, and more.Secure Wireless Performance: Delivers 24-bit digital audio over 330 ft range with AES-256 encryption.Automatic Gain Adjustment: Self-optimizes input levels for consistent sound without manual tweaks.Selectable RF Output Power: Switch between 1, 10, or 20 mW for optimal coverage or multi-mic setups.Clear LCD Display and Controls: Easy-to-navigate interface for settings, status, and sync.Durable Lightweight Housing: Rugged aluminum body built for professional touring and live use.Battery Options: Runs up to 11 hours on AA batteries or 8.5 hours with SB900B rechargeable battery.Smart Charging Support: Compatible with SBC200 and SBC220 charging docks for networked power management.
Specifications
General Specifications
Model: ULXD2/N8SB-G57
Wireless Technology: Digital UHF
Compatibility: Shure ULX-D Digital Wireless Systems
Capsule: Nexadyne 8/S Supercardioid Dynamic
Capsule Technology: Shure Revonic Dual-Engine Transducer
Construction: Rugged aluminum housing
Color: Black
Dimensions: 10.1 x 2 in (256 x 51 mm)
Weight: 12 oz (340 g)
Audio & Transmission
Audio Resolution: 24-bit / 48 kHz
Frequency Range: G57 band (470 to 608 MHz)
Tuning Bandwidth: 138 MHz
RF Output Power: Selectable 1 / 10 / 20 mW
Max Operating Range: 100 m (328.1 ft)
Latency: < 2.9 ms
Sensitivity: -51 dBV/Pa (at 1 kHz)
Frequency Response: 50 Hz to 20 kHz
Microphone Features
Microphone Type: Dynamic
Polar Pattern: Supercardioid
Capsule Characteristics: Dual-transducer dynamic with Revonic technology
Enhanced isolation from mechanical vibration (shockmount-free design)
Condenser-like detail with consistent off-axis rejection
Integrated multi-stage pop protection grille
Interchangeable Capsule Design: Yes (compatible with other Shure capsules)
User Interface & Controls
Display: Backlit LCD
Menu Access: Frequency, group/channel, mute, lock, RF output, battery status
Sync Method: IR (Infrared)
Mute Mode: Power button doubles as mute with RF lock
Lockouts: Frequency and power lock
Encryption & Gain Management
Encryption: AES 256-bit
Gain Adjustment: Automatic (Shure Gain Ranging)
Gain Range: 0 to +21 dB (3 dB steps)
Power & Battery Options
Battery Types: 2 x AA (included) - up to 11 hours, 1 x SB900B Li-ion Rechargeable (not included) - up to 8.5 hours
Charging Options: SBC200 Dual Docking Charger (not included), SBC220 Network Charger (not included)
? Charging Features: Dockable external contacts, precision metering, zero memory effect
