Shure ULXD2/K9HS-G57
MPN #ULXD2/K9HS-G57
$1949.00
Save 28.5%, MSRP $2727.00
138 MHz tuning, 470"608 MHz range, KSM9HS dual-diaphragm capsule with hypercardioid/subcardioid switchable patterns, AES-256 encryption, 8.5 hr SB900B battery

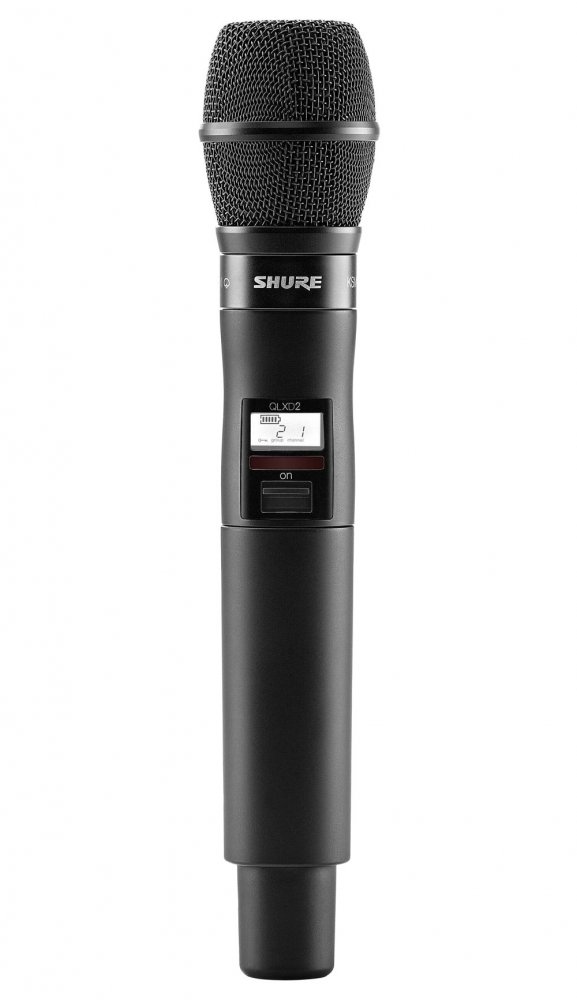

The Shure ULXD2/K9HS-G57 is a professional digital handheld transmitter for ULX-D systems, featuring the KSM9HS dual-diaphragm condenser capsule with switchable hypercardioid and subcardioid polar patterns. This flexibility makes it ideal for high-end vocal performances in varied stage environments, offering precise audio capture with excellent gain before feedback.
It operates in the G57 frequency band (470"608 MHz) with an extended 138 MHz tuning range, and delivers 24-bit/48 kHz digital audio with AES-256 encryption for secure transmissions. The rugged, lightweight aluminum body includes a backlit LCD, IR sync, and 1/10/20 mW selectable RF output power.
The transmitter supports up to 11 hours on AA batteries or 8.5 hours with the optional SB900B rechargeable battery, compatible with Shure's intelligent charging systems. Its interchangeable capsule design allows use with other Shure capsules, offering flexible performance and professional-grade reliability.
Features
KSM9HS Dual-Diaphragm Condenser Capsule: Switchable hypercardioid and subcardioid polar patterns provide tailored sound isolation or natural vocal presence as needed.Exceptional Vocal Clarity: Delivers smooth, detailed vocal reproduction with consistent frequency response and minimized proximity effect.Class-A Preamplifier Design: Ensures transparency and rapid transient response with no crossover distortion.Interchangeable Capsule System: Easily switch to other Shure capsules like SM58, KSM9, Beta 58A, and more depending on application needs.138 MHz Wideband Tuning Range: Covers 470"608 MHz for broad frequency compatibility across geographic regions.Secure Digital Audio Transmission: 24-bit/48 kHz quality with AES-256 encryption for high-security and interference-prone environments.Automatic Gain Ranging: Adapts input level automatically-no need for manual gain adjustments.Selectable RF Output Power: Choose from 1, 10, or 20 mW to suit venue size and system channel density.Durable and Lightweight Design: Rugged aluminum housing with a three-stage pop filter grille to manage plosives and wind.User-Friendly LCD Interface: Provides access to frequency, group, battery, and mute settings, with quick IR syncing.Battery Options: Operates up to 11 hours with AA batteries or over 8 hours with the SB900B rechargeable battery.Smart Charging Support: Compatible with SBC200 and SBC220 chargers for docked and network-integrated battery management.
Specifications
General Specifications
Model: ULXD2/K9HS-G57Wireless Technology: Digital UHFCompatibility: Shure ULX-D Digital Wireless SystemsCapsule: KSM9HS Condenser - Dual-diaphragmPolar Patterns: Switchable Hypercardioid / SubcardioidInterchangeable Capsule Design: Yes (compatible with KSM9, SM58, SM86, SM87A, Beta 58A, Beta 87A, Beta 87C, etc.)Construction: Rugged aluminum housingColor: BlackDimensions: 10.1 x 2 in (256 x 51 mm)Weight: 12 oz (340 g) without batteries
Audio & Transmission
Audio Resolution: 24-bit / 48 kHzFrequency Range: G57 band (470 to 608 MHz)Tuning Bandwidth: 138 MHzRF Output Power: Selectable 1 / 10 / 20 mWMax Operating Range: 100 m (328.1 ft)Latency: < 2.9 msMaximum SPL: 150 dB (Hypercardioid), 153 dB (Subcardioid)Sensitivity: -50.5 dBV/Pa (Hypercardioid), -53.0 dBV/Pa (Subcardioid)Frequency Response: 50 Hz to 20 kHz
User Interface & Controls
Display: Backlit LCDMenu Access: Frequency, group/channel, mute, lock, RF output, battery statusSync Method: IR (Infrared)Mute Mode: Power button doubles as mute with RF lockLockouts: Frequency and power lock
Encryption & Gain Management
Encryption: AES 256-bitGain Adjustment: Automatic (Shure Gain Ranging)Gain Range: 0 to +21 dB (3 dB steps)
Power & Battery Options
Battery Types: 2 x AA (included) - up to 11 hours, 1 x SB900B Li-ion Rechargeable (not included) - up to 8.5 hoursCharging Options: SBC200 Dual Docking Charger (not included), SBC220 Network Charger (not included)Charging Features: Dockable external contacts, precision metering, zero memory effect
Microphone Features
Capsule Design: Dual 3/4" gold-layered, low-mass Mylar diaphragmsPreamp: Class-A discrete transformerless for transparencyProtection: Three-stage pop grille, moisture and plosive rejectionPattern Switching: Manual between hypercardioid and subcardioid for flexible use across live performance scenarios
