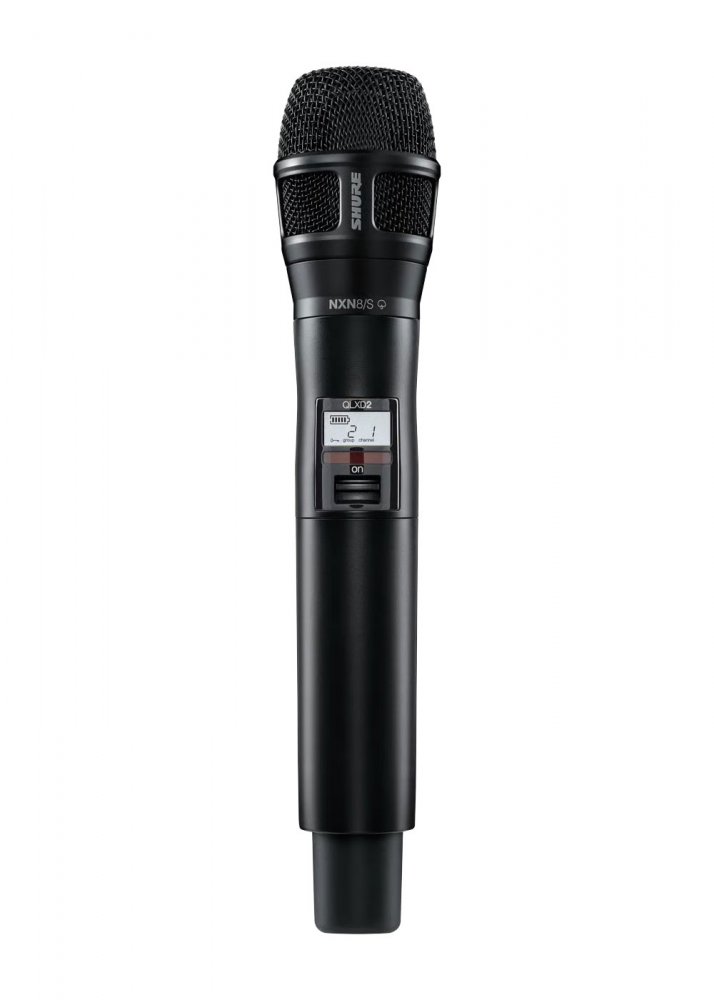

Shure QLXD2/N8SB-G50
UPC/EAN #042406835961
MPN #QLXD2/N8CB-G50
Handheld transmitter with Nexadyne 8/S capsule, 24-bit audio, 330 ft range, AES 256 encryption, 9-hour battery life, G50 band (470"534 MHz)
The Shure QLXD2/N8S Handheld Wireless Transmitter with Nexadyne 8/S Capsule is designed for performers and presenters who need superior audio quality, reliability, and focused vocal capture. This handheld transmitter pairs seamlessly with QLX-D receivers and features the Nexadyne 8/S capsule-a supercardioid dynamic microphone that uses Shure's advanced Revonic dual-transducer technology. This innovative design delivers rich, condenser-like sound with tight directionality, reducing background noise and offering excellent gain before feedback, making it ideal for louder stage environments and close-mic applications.
Encased in a rugged yet lightweight aluminum body, the QLXD2/N8S offers user-friendly controls and secure wireless transmission with AES 256-bit encryption. With a selectable 1/10 mW RF output and up to 9 hours of operation on two AA batteries, it ensures reliable, uninterrupted performance throughout long events. For extended use and smart power monitoring, it's also compatible with Shure's rechargeable battery solutions. The supercardioid capsule is ideal for vocalists or speakers needing pinpoint accuracy and maximum isolation, while the interchangeable capsule design allows for flexible microphone customization to match any performance style or venue requirement.
Features
Provides high-quality 24-bit digital audio for live vocals and speechFeatures Nexadyne 8/S capsule with supercardioid pattern for focused pickupDual-transducer design reduces self-noise and enhances claritySyncs easily with QLX-D receivers using IR pairingInterchangeable capsule lets you switch to other Shure optionsSecure AES-256 encryption for protected wireless transmissionUp to 9 hours of use with AA batteries; rechargeable option availableAdjustable gain and RF output for flexible setupDurable metal housing with clear LCD screen for controls and statusIdeal for presentations, music venues, and worship spaces
Specifications
General Specifications
Product Name: QLXD2 Handheld Wireless Transmitter with Nexadyne 8S CapsuleSKU: QLXD2/N8SB-G50Wireless Technology: Digital UHFFrequency Band: G50 470 to 534 megahertzMicrophone Type: Handheld with interchangeable capsuleIncluded Capsule: Nexadyne 8S Supercardioid DynamicCapsule Technology: Revonic Dual Engine TransducerPolar Pattern: SupercardioidInterchangeable Capsules: Compatible with Nexadyne 8C, KSM8, KSM9, SM58, Beta 58A, Beta 87A, Beta 87C
RF and Wireless Specs
Number of RF Channel Frequencies: 2560RF Channel Scanning: Auto scanMaximum Operating Range: 100 meters or 330 feetMaximum Transmitters per Band: 60RF Output Power: Selectable 1 or 10 milliwattsLatency: Less than 2.9 millisecondsSync Method: InfraredEncryption: AES 256 bit
Audio Performance
System Frequency Response: 30 hertz to 20 kilohertzMicrophone Frequency Response: 50 hertz to 20 kilohertzSensitivity: Minus 51 dBV per PascalGain Range: 0 to 21 decibels in 3 decibel stepsInput Level: MicrophoneMuting: On off switch
Power and Battery
Battery Type: Two AA alkaline batteries included or one Shure SB900A lithium ion battery optionalBattery Life: 9 hours alkaline or 10 hours with SB900ACharging Contacts: Supported for docked chargingRechargeable System Support: Compatible with SBC200 and SBC220 chargers
Physical Specifications
Housing Material: AluminumColor: BlackDimensions: 51 x 256 millimeters or 2 x 10.1 inchesWeight: 347 grams or 12.2 ounces without batteries
Included in the Box
One QLXD2 handheld transmitter with Nexadyne 8S capsuleOne WA371 mic clipTwo AA batteriesOne battery contact coverOne zipper bag
Packaging Information
Package Weight: 1.56 poundsBox Dimensions: 13.4 x 4.8 x 4 inches
