Shure QLXD2/N8CB-G50
UPC/EAN #042406835961
MPN #QLXD2/N8CB-G50

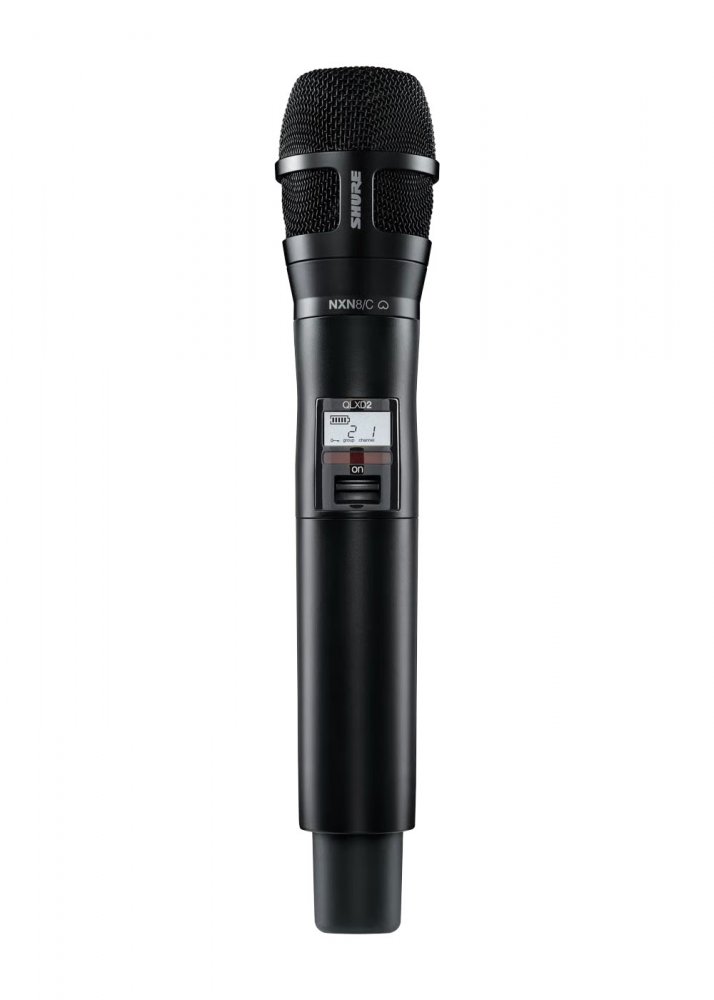

Handheld transmitter with Nexadyne 8/C cardioid microphone. Tunable FrequencyRange (64MHz) 470-534.
The Shure QLXD2/N8C Handheld Wireless Microphone Transmitter with Nexadyne 8/C Capsule delivers unmatched clarity and reliability for professional vocal applications. Tailored for use with QLX-D digital wireless systems, this handheld transmitter integrates the cutting-edge Nexadyne 8/C dynamic capsule, designed with Shure's proprietary Revonic dual-engine transducer technology. This innovation offers the articulation and clarity of a condenser mic while maintaining the robustness and feedback control of a dynamic capsule-perfect for live vocals in demanding environments such as concert stages, worship services, and corporate presentations.
With 24-bit digital audio, AES 256-bit encryption, and up to 2560 selectable frequencies in the G50 UHF band (470"534 MHz), the QLXD2/N8C ensures secure, interference-free performance across a 330-foot range. Users can expect up to 9 hours of operation on AA batteries or extend runtime with the optional SB900A rechargeable battery. Built with a rugged aluminum housing, easy IR syncing, intuitive controls, and external charging capabilities, this transmitter offers both durability and flexibility-making it a powerful tool for performers and sound engineers who demand both exceptional sound quality and seamless operation.
Features
Delivers clear 24-bit digital audio with wide dynamic rangeIncludes Nexadyne 8/C capsule for condenser-like vocal clarityCardioid pattern helps reduce feedback and unwanted noiseSyncs quickly with QLX-D receivers via infraredInterchangeable microphone capsules for flexible useSecure AES 256-bit encryption for protected transmissionsUp to 9 hours of battery life with AA batteries; optional rechargeable battery availableRugged metal body with LCD display for easy controlSelectable RF power (1/10 mW) for optimized performanceBuilt-in contacts for docked charging with compatible accessories
Specifications
General Specifications
Product Name: QLXD2 Handheld Wireless Transmitter with Nexadyne 8C CapsuleSKU: QLXD2/N8CB-G50Wireless Technology: Digital UHFRF Frequency Band: G50 470 to 534 megahertzFrequency Range: 50 hertz to 20 kilohertz microphone dependentFrequency Response Microphone: 50 hertz to 20 kilohertzPolar Pattern: CardioidIncluded Capsule: Nexadyne 8C Dynamic CardioidCapsule Technology: Revonic Dual Engine TransducerInterchangeable Capsules: YesDisplay: Backlit LCDEncryption: AES 256 bitSync Method: Infrared
RF and Wireless Specs
Max Operating Range: 100 meters or 330 feetRF Output Power: 1 or 10 milliwatts selectableNumber of RF Channel Frequencies: 2560Max Transmitters per Band: 60Latency: Less than 2.9 millisecondsAntenna: Fixed quarter wave
Audio Performance
Gain Range: 0 to 21 decibels in 3 decibel stepsInput Level: Microphone levelMuting: On off switchSensitivity: Minus 54 dBV per PascalFrequency Response System: 30 hertz to 20 kilohertz
Power and Battery
Battery Type: Two AA alkaline included or one Shure SB900A lithium ion optionalBattery Life: Up to 9 hours with alkaline batteries up to 10 hours with SB900ACharging Options: External charging contacts for docked chargingRechargeable System Support: Yes with SBC200 or SBC220 chargers
Physical Specifications
Housing Material: AluminumColor: BlackDimensions: 51 x 256 millimeters or 2 x 10.1 inchesWeight: 347 grams or 12.2 ounces without batteries
Included in the Box
One QLXD2 handheld transmitter with Nexadyne 8C capsuleOne WA371 mic clipTwo AA batteriesOne battery contact coverOne zipper bag
Packaging Information
Package Weight: 1.495 poundsBox Dimensions: 13.3 x 5.2 x 4.1 inches
