UPC/EAN #042406051668     MPN #MX184

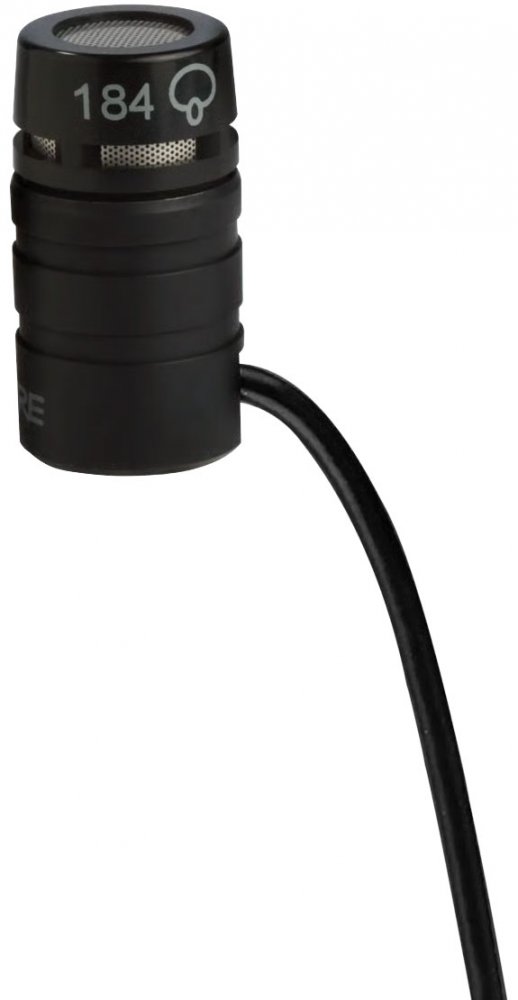

Shure MX184

$349.00

Économisez 29.5%, Prix suggéré $495.00

Supercardioid pattern lavalier microphone with 115 pickup angle, high ambient noise rejection, 50"17,000 Hz range, 122.7 dB max SPL, 67.5 dB SNR and compact 4 ft cable



The Shure MX184 is a wired lavalier electret condenser microphone designed specifically for clear and focused vocal pickup in settings where ambient noise rejection is essential. This model features a supercardioid polar pattern, which gives it a narrow pickup angle (115) and high off-axis noise rejection"ideal for applications like public speaking, presentations, broadcast, and live performance where background noise can be a concern. Its small form factor allows it to clip easily to clothing like lapels and ties, and it includes a rotatable tie-clip for flexible placement.

What sets the MX184 apart is its ability to deliver clean, intelligible audio with reduced ambient interference. It has a wide frequency response (50 Hz to 17 kHz) and is supplied with a snap-fit foam windscreen, which helps control breath noise and plosive sounds. The microphone also offers a balanced, transformerless output to minimize signal degradation over long cable runs. It's powered via 11"52 VDC phantom power and comes equipped with a 1.2-meter shielded cable terminated with a 4-pin female mini connector (TA4F) for integration with wireless bodypacks or other systems.
  • Focused voice pickup: Captures sound from the front while rejecting surrounding noise for clearer speech.
  • Supercardioid design: Provides a narrow pickup angle, ideal for use in noisy environments.
  • Clips to clothing: Easily attaches to lapels, ties, or other garments for hands-free use.
  • Flexible positioning: Rotating clip allows the microphone to pivot in 90 increments.
  • Noise-reducing windscreen: Comes with a foam windscreen to minimize breath and wind noise.
  • Interchangeable capsule: Cartridge can be swapped out to suit different recording needs.
  • Reliable for long cables: Balanced, transformerless output reduces noise over extended cable runs.
  • Dual-mic support: Includes a clip that can hold two microphones if needed for redundancy or dual recording setups.
  • General Specifications
  • Microphone Type: Electret condenser
  • Application: Speech, vocal pickup, sound reinforcement, recording, remote monitoring
  • Mounting: Lavalier (clip-on)
  • Pickup Pattern: Supercardioid
  • Pickup Angle ("3 dB): 115
  • Rotatable tie clip (90 increments)
  • Snap-fit foam windscreen included
  • Supplied dual tie clip for dual mic use

  • Audio Specifications
  • Frequency Response: 50 Hz - 17,000 Hz
  • Open Circuit Sensitivity (1 kHz, ref. 1V/Pa): "33.5 dB (21.1 mV)
  • Maximum SPL (1 kHz @ 1% THD, 1 kilo ohm load): 122.7 dB
  • Equivalent Output Noise (A-weighted): 26.5 dB SPL
  • Signal-to-Noise Ratio (ref. 94 dB SPL): 67.5 dB
  • Dynamic Range (at 1 kilo ohm load): 96.2 dB
  • Output Impedance: 150 ohms (EIA rated), 180 ohms actual
  • Common Mode Rejection: ? 45.0 dB

  • Electrical Specifications
  • Power Requirements: 11 to 52 V DC phantom power, 2.0 mA
  • Polarity: Positive pressure on diaphragm yields positive voltage on pin 2 (XLR output)

  • Physical Specifications
  • Cable: Shielded, 1.2 m (4 ft.), terminated with TA4F (4-pin female mini connector)
  • Dimensions: Body Length: 99 mm (3.89 in.), " Body Diameter: 19"22 mm (0.75"0.85 in.), " Microphone Diameter: 12 mm (0.46 in.)

  • Environmental Specifications
  • Operating Temperature: "18C to 57C (0F to 135F)
  • Storage Temperature: "29C to 74C ("20F to 165F)

  • Compliance & Accessories
  • CE Marking: Yes
  • Complies with: EMC Directive 89/336/EEC, EN55103 (1996), Parts 1 and 2
  • Replacement Cartridge: R184B
  • Preamp Kit (Phantom): RK183PK
  • Battery/Phantom Preamp: MX1BP
  • Windscreens: RK183WS, RK261WS
  • Tie Clips: RK183T1 (single), RK183T2 (dual)
  • Connector Replacement: WA330
  • Cable Replacement: C122
