UPC/EAN #629266006672     MPN #BP10

$773.43

Save 12%, MSRP $878.90
Financing available
Free shipping in Canada. Conditions
The VCT Universal Baseplate (BP10) offers a unique design, created for both amateur and professional filmmakers seeking camera supports & stabilizers of high-quality. It features a front to back sliding plate allowing quick positioning of your camera accessories for an optimal adjustment of your camera's center of gravity and weight distribution. It is designed with 2 standard Arri rosettes for handles mount and there is a standard quick release adapter plate compatible with most VCT tripod plate. There is also a protective rubber pads on top of the plate to protect your camera.

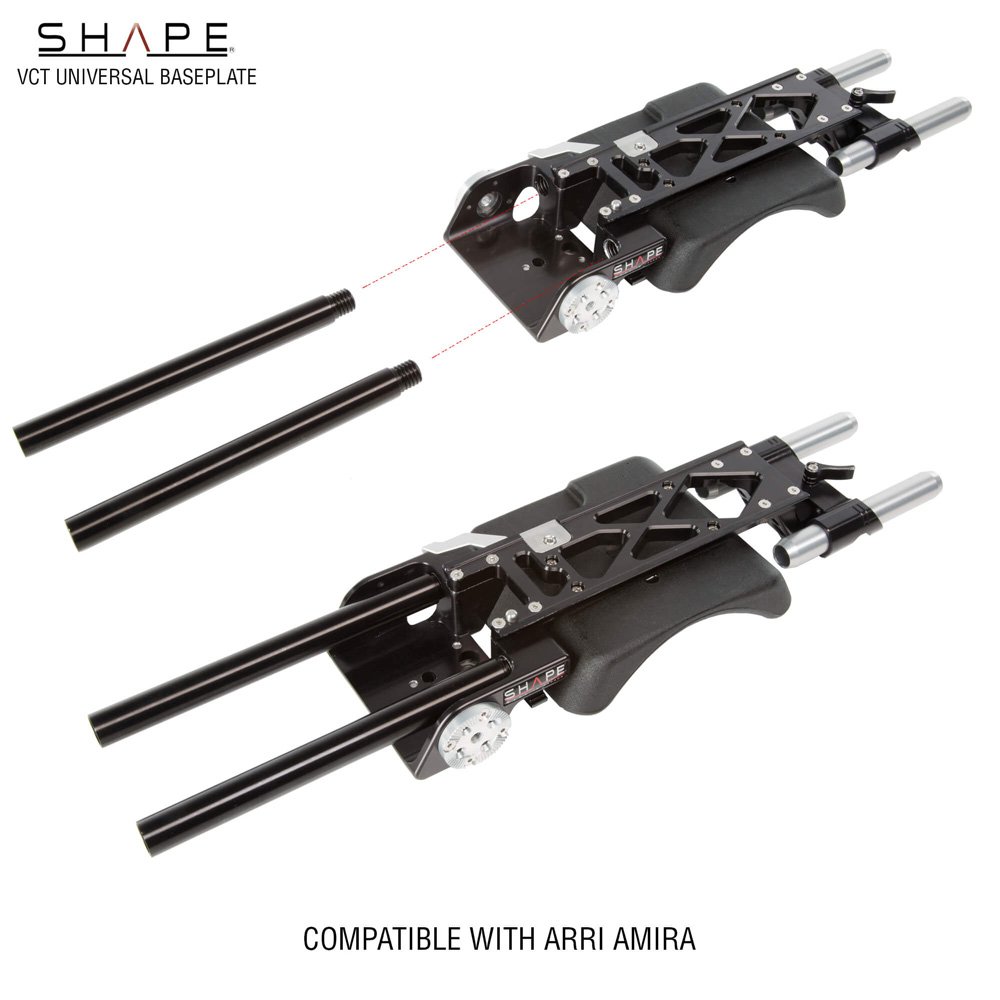

Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. It comes with 2 pairs of 15 mm rods (8"and 4") made of reliable aluminum coated with a clear finish. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.
  • Front to back sliding plate for quick positioning of your camera accessories and an optimal adjustment of your camera's weight distribution.

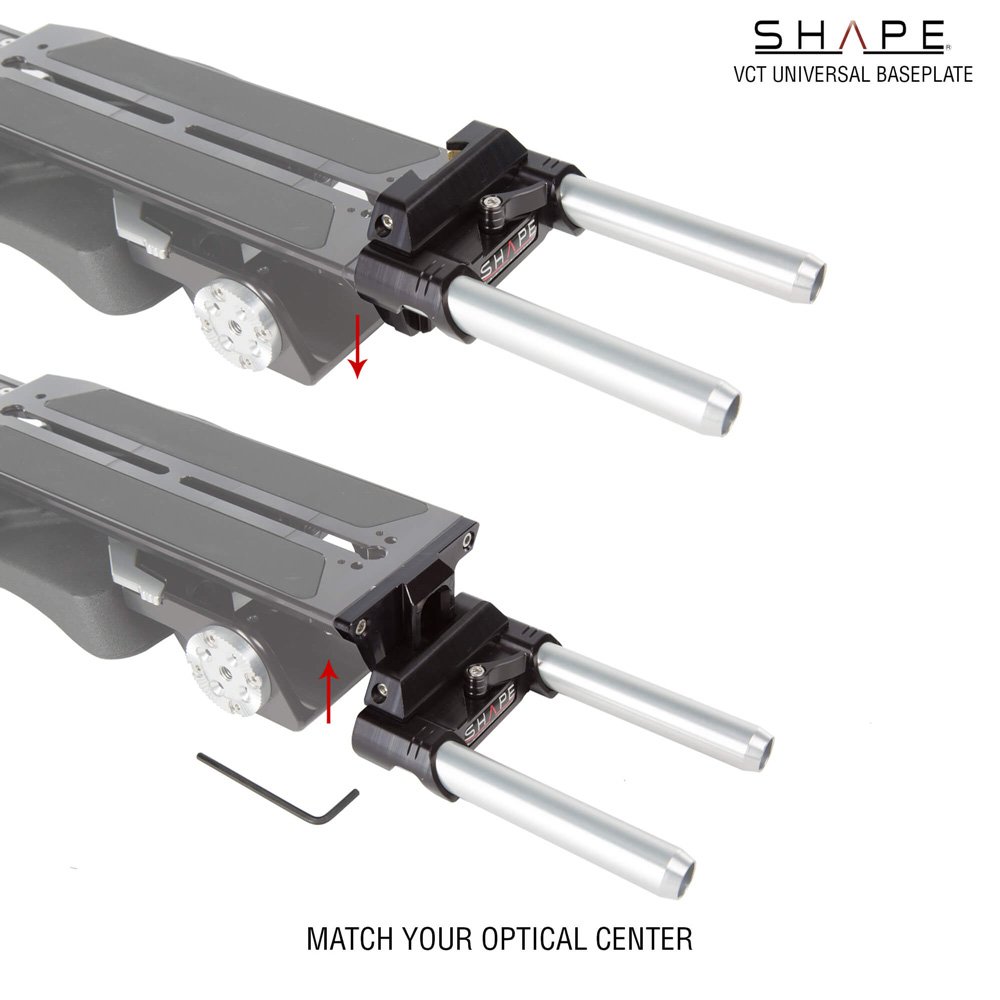

  • Match your camera's optical center. Being able to adjust the height of your rod bloc to match your camera's optical center is exactly what you can do.
  • Comfortable and moveable shoulder pad made of slip-free material and gel padding (BP-0100).
  • Front and rear 15 mm lightweight rod blocs with 2 pairs of 15 mm rods (8", 4") to mount more camera accessories.

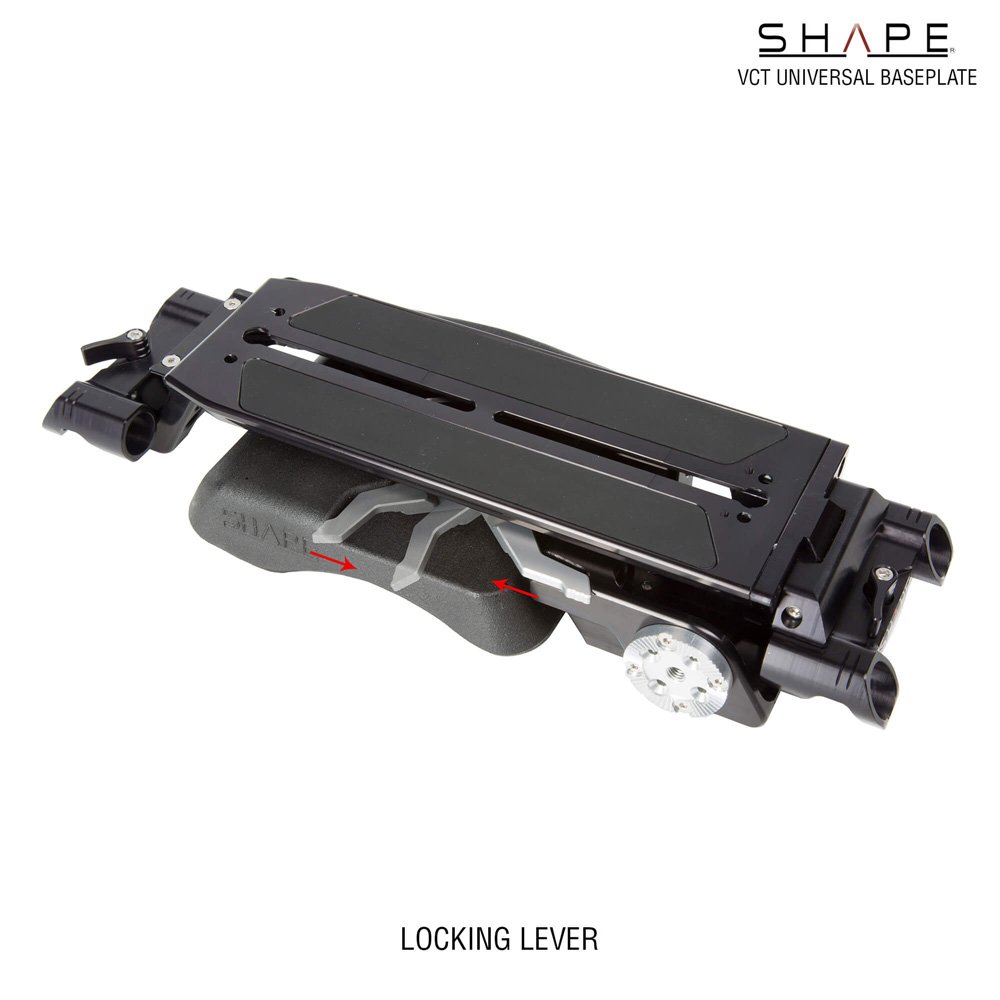

  • Safety pins prevents the upper plate from sliding.
  • Ratchet knob applies an optimal pressure to the rods.
  • Sophisticated tool box to store your extra screws and Allen key

  • Compatible with the following cameras:
  • RED (DSMC2)
  • Arri (Amira and Alexa Mini)
  • Sony (Venice, FS7, FS7M2, F5, F55, EX1, EX3)
  • Canon (C200, C300, C300M2, C700)
  • Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2)
  • Blackmagic (Ursa Mini)
  • and many other camera models with interchangeable lenses

  • 15 mm in rods (15TUBE4)
    One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
  • 15-mm diameter
  • 4-in length
  • Hollow, non-threaded
  • Tapered ends for easy connection to a rod block
  • Aluminum coated with a clear finish

  • 15 mm 8 in rods (15TUBE8)
    One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
  • 15-mm diameter
  • 8-in length
  • Hollow, non-threaded
  • Tapered ends for easy connection to a rod block
  • Aluminum coated with a clear finish
  • Front to Back sliding plate for weight distribution
  • Match your camera's optical center
  • Moveable shoulder pad made of slip-free material
  • Made of CNC Machined Aluminum
  • Protective rubber pads to protect your camera
  • Front and rear 15 mm rod bloc system with safety ratchet knob
  • Come with 2 pairs of 15 mm rods (8", 4")
  • Designed with 2 standard Arri rosettes for handles mount
  • Sophisticated tool box to store your extra screws and Allen key
  • Quick release adapter plate for VCT tripod plate mount
  • What's in the box
    (1) REVOLT VCT UNIVERSAL BASEPLATE WITH SHOULDER PAD
    (1 pair) 15MM RODS 8?
    (1 pair) 15MM RODS 4?

    Weight:
    2.60 lbs 1.18 kg

    Dimensions:
    10.50 x 4.25 x 2.00 in
    26.67 x 10.80 x 05.08 cm
