Shape Panasonic Au-EVA1 Bundle Rig with Follow Focus Pro
UPC/EAN #629266007402
MPN #EVABRFFP
$2262.51
Save 12%, MSRP $2571.03

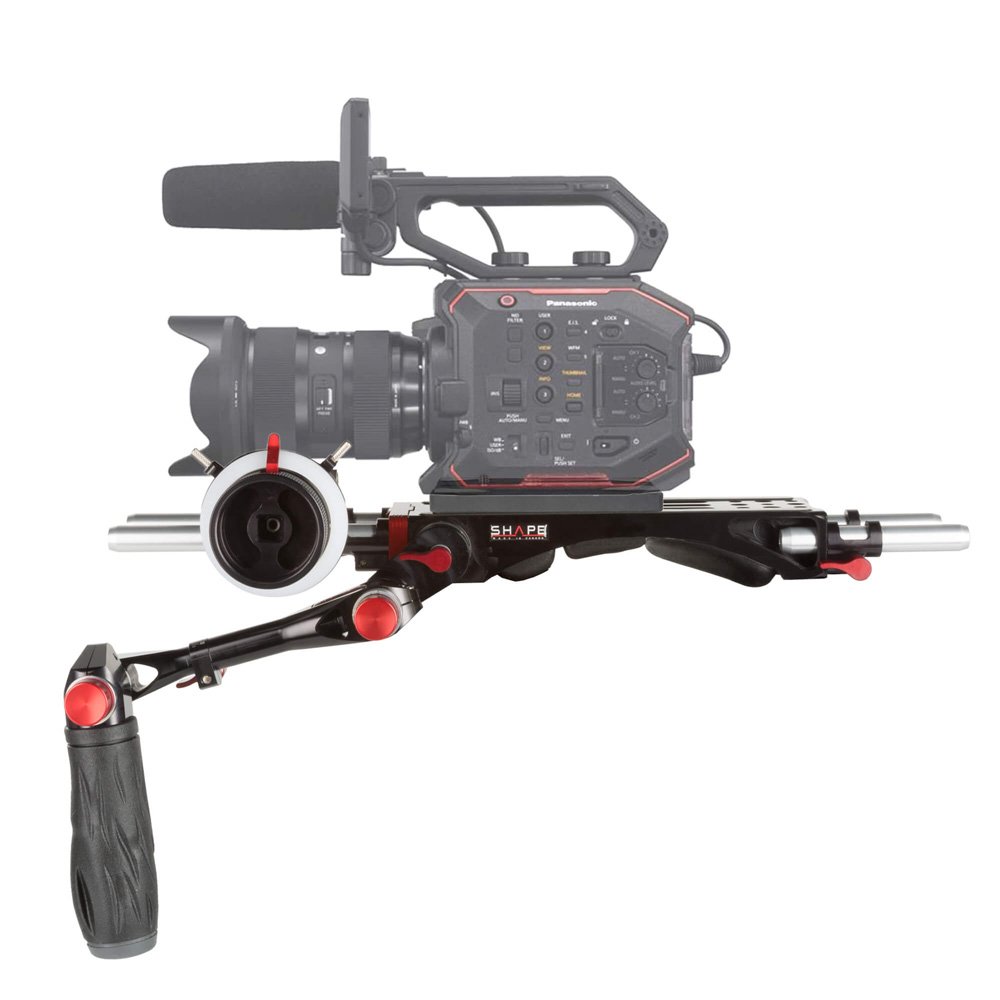

Camera baseplate with shoulder mount and 15 mm Rod System, and one Follow Focus Pro for the AU-EVA1
The SHAPE Bundle Rig is a camera support system designed for the Panasonic AU-EVA1 camera and is suitable for handheld or shoulder-mounted shooting. It includes one BP0008 V-Lock Quick Release Baseplate, one V-Lock Replacement Pad, one HAND3 Telescopic Handle for ARRI Rosette, two 15 mm Aluminum Rods (8?), two 15 mm Aluminum Rods (4?), and one Follow Focus Pro.
8000 v-lock quick release baseplate (BP0008)
The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. Two pairs of 8" and 4" 15 mm rods are included for the front and back. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included.
Panasonic Au-Eva1 adapter plate (EVAAP)
Panasonic Au-Eva1 adapter plateThe AU-EVA1 Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Panasonic AU-EVA1 camera base.
Single telescopic handle Arri rosette left side (HAND3)
Single telescopic handle Arri rosette left sideLeft telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. The arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360. The one near the rosette gives you more option to position the arm for your comfort. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

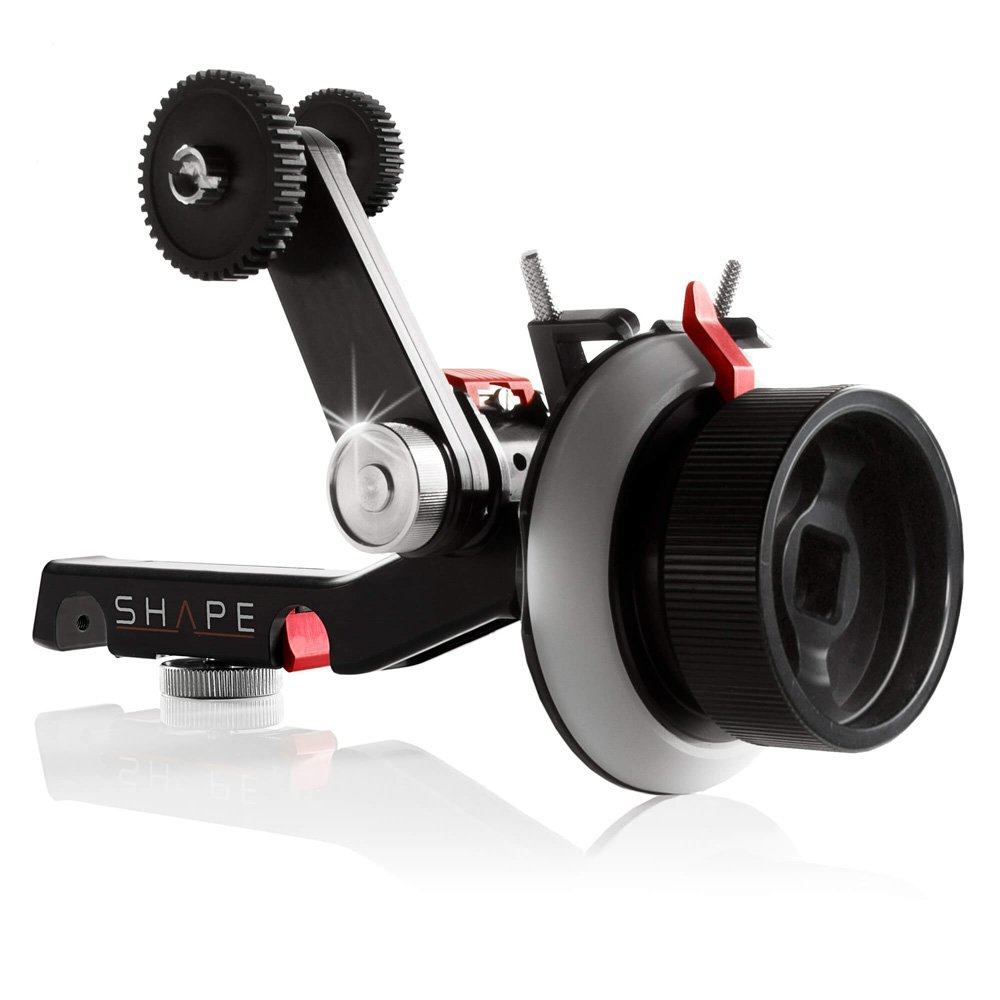

Follow Focus Pro (FFPRO)
Ffpro Shape 01 Product PictureManufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn't worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.
15 mm in rods (15TUBE4)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
15-mm diameter4-in lengthHollow, non-threadedTapered ends for easy connection to a rod blockAluminum coated with a clear finish
15 mm 8 in rods (15TUBE8)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
15-mm diameter8-in lengthHollow, non-threadedTapered ends for easy connection to a rod blockAluminum coated with a clear finish
Features
AU-EVA1 Baseplate with shoulder mount and 15 mm Rod SystemPanasonic AU-EVA1 Adapter PlateOne (1) Telescopic Handle with ARRI Rosette & Push-Button TechnologyFollow Focus Pro With A Trusted Engineering
Specifications
What's in the box
(1) BASEPLATE WITH SHOULDER MOUNT AND ROD BLOC SYSTEM (BP0008)
(1) REMOVABLE SHOULDER PAD (BP0050)
(1) PANASONIC AU-EVA1 ADAPTER PLATE
(2) 15MM RODS 8"
(2) 15MM RODS 4"
(1) TELESCOPIC HANDLE WITH PUSH-BUTTON (LEFT SIDE)
(1) FOLLOW FOCUS PRO
Weight:
5.60 lbs 2.54 kg
Dimensions:
12.50 x 9.00 x 19.00 in
31.75 x 22.86 x 48.26 cm
