Serpent Audio Splice MKII
MPN #SPLICE SA-76
Single channel FET based mono compressor

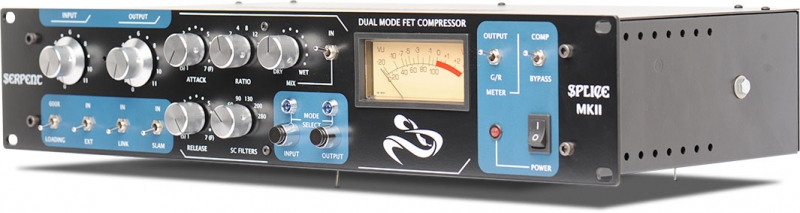

Splice MKII FET COMPRESSOR
The Splice MKII's unique circuitry mode switching allows the user to configure the input & output audio path circuitry between classic Blackface and Blue Stripe modes, or mix and match the two to create completely new sounds, unique to the Splice MKII.
The Splice MKII brings FET compression to a whole new level, faithfully recreating the circuitry and sound of not one, but two classic FET compressors. The Splice MKII's unique mode switching allows the user to switch between the classic Blackface or vintage Bluestripe circuits at the push of a button. In addition, the Splice MKII can also mix and match the two for entirely new sounds that can only be found with the Splice MKII (i.e. Blue Input Circuitry + Black Output Circuitry for "Blueface" mode or Black Input Circuitry + Blue Output Circuitry for "Blackstripe" mode. It's like having 4 compressors in one.
Features
Four Compressor circuits in one box
Input Circuit Black + Output Circuit Black = "Classic Blackface Mode"Input Blue + Output Blue = "Classic Bluestripe Mode"Input Blue + Output Black = "Blueface Mode" (Unique to the Splice)Input Black + Output Blue = "Blackstripe Mode" (Unique to the Splice)
General
Stereo Linkable w/ front panel switchExternal Send & Return w/ front panel switch"All Buttons In" / Slam Mode front panel switchTrue Bypass (Relay Controlled) w/ front panel switchIntegrated Mix/Blend Control w/ switchable bypassing for in-the-box parallel processingIntegrated Active Sidechain FiltersSwitchable 600R Output loading allows the user to easily optimize the Splice? for use with both vintage and modern equipment45dB of Gain (with no limiting)Attack Time - 20 to 800 MicrosecondsRelease Time - 50 Milliseconds to 1.1 SecondsCompression Ratios - 2:1, 4:1, 8:1, 12:1, 20:1 & Soft Bypass (BP)True VU meter w/ meter buffer circuitryIntegrated Linear Power Supply115V/230V compatible (User selectable on rear panel)Backed by a 2 Year Limited Warranty
Specifications

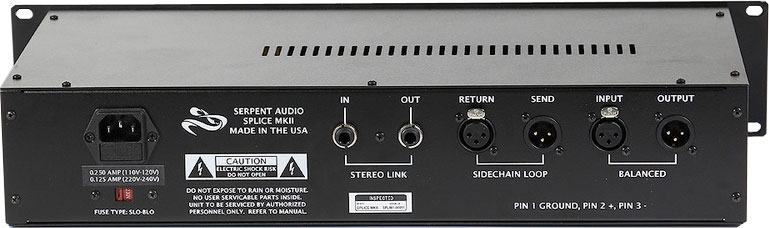

Input: Constant 600R Input Attenuator, Floating Transformer BalancedOutput: Floating Transformer BalancedOutput (With Mix Enabled): <100 Ohm Output Impedance, Transformer-likeFloating Output, Electronically Balanced (Accepts Balanced or Unbalanced Signals)External Send: <100 Ohm Output Impedance, Transformer-like Floating Output,Electronically Balanced (Accepts Balanced or Unbalanced Signals)External Return: 22KHz Input Impedance, Electronically Balanced (TRS), (AcceptsBalanced or Unbalanced Signals)Maximum Input Level: +30dbu with compression engaged and Input level knob setto max (fully clockwise)Maximum Output Level: +24dbuOutput Load: 150 Ohm minimalGain: 45db (+/-1dbu) with compression disabled (Ratio set to "BP")Gain Reduction Element: FETTHD+N: (20Hz-20KHz) Typically 0.5%Signal-To-Noise Ratio: >80dbu
