Sequential Trigon-6
UPC/EAN #855346000548
MPN #SEQ-3800
49-key, 6-voice polyphonic analog synthesizer with per-voice triple VCOs, 2/4-pole Resonant Lowpass Ladder Filters, Arpeggiator, 64-step Sequencer, Aftertouch
A Sound That is Bold and Familiar
The Trigon-6 is Sequential's polyphonic take on the classic, thick and creamy, 3-oscillator-plus-ladder-filter analog sound that defined the dawn of the synth era. It's a sound that bridges genres and styles - now refined and redefined with Sequential's own modern imprint.
All-New Filter and Oscillator Design
At the heart of the Trigon-6 sound are three newly designed voltage-controlled oscillators (with triangle, saw, and pulse waves) and an enhanced version of the ladder filter that Sequential created for its Pro 3 mono synth. The switchable 2/4 pole resonant filter design has dedicated drive and feedback controls that make it effortless to go from bold and crunchy to silky and smooth with a simple knob turn.
The Perfect Package
The Trigon-6 has all of the best qualities of Sequential's acclaimed Prophet-6 and OB-6 synths - 6-voice polyphony, unrivaled playability, easy programmability, and modest footprint - packed into a four-octave, semi-weighted keyboard with velocity and channel aftertouch. What differentiates it from its siblings is its unmistakable "3-oscillators-through-a ladder-filter" punch. It raises the bar for what the ideal power poly can and should be.
Rounding Out The Picture
Naturally, the Trigon-6 has the full complement of Sequential's "must-have" sound-sculpting features including super snappy envelopes, a syncable LFO with multiple waveforms and destinations, a polyphonic step sequencer, and an arpeggiator. Best of all, the knob-per-function front panel of the Trigon-6 puts these controls at your fingertips. And the ready-made palette of 500 factory and 500 user presets provides classic basses, leads, and pads to jump start any project.
More Power Features
Also present is Sequential's classic Poly Mod, with enhancements for creative sound design. Modulation sources are filter envelope and oscillator 3 (both with bi-polar control). Destinations include oscillator 1, 2, and 3 frequency, oscillator 1, 2, and 3 pulse width, filter cutoff, and feedback. Unison mode is here as well, featuring configurable voice count (1-6 voices for up to 18 simultaneous oscillators) and key modes.
Dual Effects
The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus, flanger, phaser, and ring modulator. The independent stereo distortion effect adds on-demand aggression and is 100% analog.
Adjustable Vintage Character
Finally, to give even more classic organic warmth to an already classic synth, there's the Vintage Knob, which adds voice-to-voice variations in calibration and component behaviour. Vintage behaviour is adjustable from subtle to extreme to emulate the stability of a perfect modern instrument or a time-worn relic.
More Than the Sum of Its Parts
Add all of this up and the Trigon-6 represents a modern synth workhorse with a bold, versatile, 3-oscillator ladder filter-based sound. It builds on the past, refines the present, and redefines the future for accessibility, portability, and playability in an analog poly synth.
Specifications
OSCILLATORS
Three discrete VCOs per voiceSimultaneously selectable wave shapes: triangle, sawtooth, reverse sawtooth, and variable-width pulsePulse width per oscillatorHard sync: oscillator 1 syncs to oscillator 2Keyboard tracking on/off (oscillator 3)Oscillator feedback and drive controls for increased signal saturationWhite Noise sourceKeyboard pitch tracking on/off
LOW-PASS FILTER
Switchable two/four-pole, discrete, resonant, low-pass, ladder filter per voiceFilter can be driven into self-oscillation with the Resonance controlBi-polar filter envelope amountVelocity modulation of envelope amountKeyboard tracking: off, half, full
FILTER ENVELOPE
Four-stage (ADSR) envelope generatorVelocity modulation of envelope amount
AMPLIFIER ENVELOPE
Four-stage (ADSR) envelope generatorVelocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
Five wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)LFO syncInitial amountMod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, oscillator 3 pulse width, filter cutoff, amp (VCA)
POLY MOD
Sources: oscillator 3 (bi-polar) and filter envelope (bi-polar)Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, filter cutoff, feedback amount
VINTAGE KNOB
Recreates vintage synth characteristics by adding voice-to voice variations in component behavior
CLOCK
Master clock with tap tempoBPM control and displayMIDI clock sync
ARPEGGIATOR
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter noteOne, two, or three octave rangeUp, down, up/down, random, and assign modes
SEQUENCER
Polyphonic step sequencer with up to 64 steps and rests
EFFECTS
Stereo analog distortionDual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifter, and ring modulatorDelay syncTrue bypass maintains fully analog signal path when digital effects are off
PERFORMANCE CONTROLS
Full-sized, semi-weighted, 4-octave keyboard with velocity and aftertouchBacklit pitch and mod wheelsSpring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)Transpose controls for an 8-octave rangeHold switch latches held notes onPolyphonic portamentoUnison (monophonic) mode with configurable voice count, from one to all six voices, chord memory, and key modesPreset switch: when on, the front panel is live - what you see is what you hear
PATCH MEMORY
500 user and 500 factory programs in 10 banks of 100 programs eachDirect program access, including single-button access to the current set of 10 programs
IN/OUT

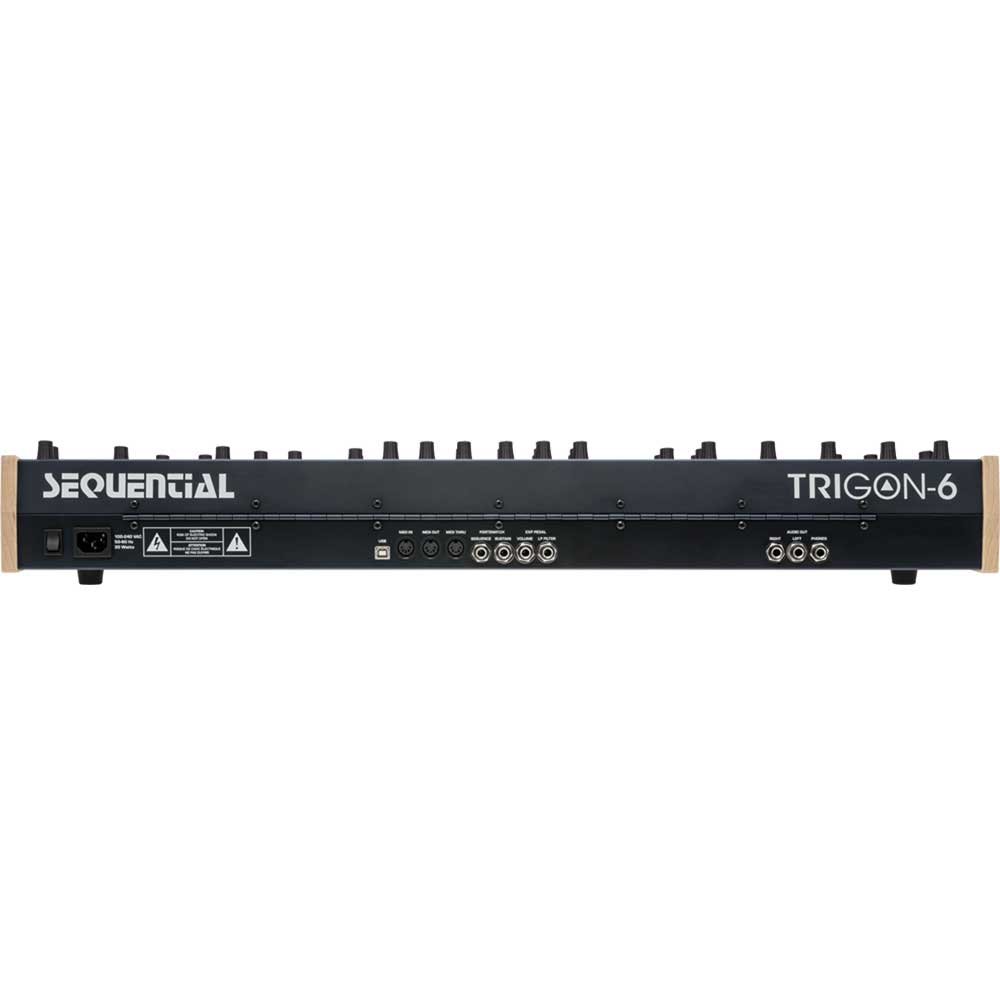

Left/mono and right audio outputs (2 x 1/4" phone jack)Headphone output (stereo, 1/4" phone jack)MIDI in, out, and thru portsUSB for bidirectional MIDI communicationFilter cutoff expression pedal inputVolume expression pedal inputSustain footswitch inputSequencer start/stop footswitch input
POWER
IEC AC power inlet for internal power supplyOperates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
PHYSICAL SPECS
31.8" L x 12.7" W x 4.6" H (80.7 cm x 32.3 cm x 11.7 cm)20 lbs (9.5 kg)Maple end panels
