Sequential Prophet Rev2 - 16 Voice
UPC/EAN #855346000715
MPN #DSI-2816
The Dave Smith Instruments REV2 is a 61 keys, 16-voice polyphonic analog synthesizer designed as a successor to the Prophet '08.
The REV2 is Dave Smith's reimagining of his Prophet '08 poly synth - a modern classic that has appeared on countless recordings and stages since its debut in 2007. As Dave puts it, "The REV2 is the realization of our effort to enhance and improve everything we could about the original design - all at a more accessible price."
The REV2 retains all of the key features of the Prophet '08 and expands on them. It has twice the polyphony, twice the mod matrix, waveshape modulation on all waveforms, digital effects per layer in stacked or split voice mode, a polyphonic step sequencer per layer, and more. The result is a true analog powerhouse.
Best of all, you can download any of the many existing libraries of Prophet '08 sounds and they will not only sound identical, but can be enhanced with the new features.
Features
16-Voice Polyphony
With 16 voices to play with, you have the freedom to allocate them as you wish. Play two-fisted chords, stack two 8-voice sounds for massive, complex textures, or split the keyboard into two completely separate 8-voice instruments.
Bold Sound
The REV2 gets its bold, punchy sound from its 2/4 pole, low-pass, resonant Curtis filters per voice. These are the same filters used not only in the Prophet '08, but in many classic instruments of the 70's and 80's. A separate Audio Mod control adds additional harmonic complexity and movement.
Waveshape Modulation
A powerful new feature unique to the REV2 is waveshape modulation. You can now vary the "pulse width" of any of the four waveforms (sawtooth, saw+tri, triangle, square). Using the Shape Mod control, you can manually dial in a desired waveshape width or use an LFO or other mod source for continuously shifting timbre. Even single-oscillator sounds take on new depth and dimension. The tonal possibilities are vast.
Effects Per Layer
The effects section provides reverb, delays (standard and BBD), chorus, phase shifter, ring modulation, and distortion. In stacked or split voice mode, you can apply a different effect to each layer. Effects parameters can be modulated through the Mod Matrix.
Extended Mod Matrix
Also present from its predecessor is an easy-to-assign Mod Matrix, now twice as big, with 8 individual slots and many more sources/destinations. It's a veritable sound designer's playground.
Poly Step Sequencing
The polyphonic step sequencer allows up to 64 steps and up to 6 notes per step. You can create a different sequence for each layer when you are working in stacked or split voice mode, making it a powerful tool for composition or performance. The sequencer also functions as a modulation source in gated mode, allowing you to create up to 4 different 16-step sequences for complex modulation. Sequences allow ties and rests, and can sync to an external MIDI clock. The arpeggiator features note repeats, re-latching, and can be synced to external MIDI clock, as well.
Per-Knob Programmability
The knob-per-function front panel offers instant access to REV2 functions. Included are 512 permanent factory programs and 512 rewritable user programs.
Eminently Playable

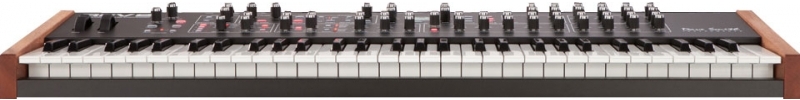

All of this polyphonic power is packed into a five-octave, premium-quality, semi-weighted keyboard with velocity and channel aftertouch. Other road-worthy features include an integrated power supply, USB support, and a crisp OLED display, making the REV2 an ideal instrument for gigging or recording, and an analog powerhouse like no other.
Specifications
OSCILLATORS
2 digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)Glide (portamento): separate rates per oscillatorWhite noise generatorAnalog VCAsHard sync
FILTERS
1 analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode)
ENVELOPES
3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay); Envelope 3 can loop.
SEQUENCER
Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests. Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence.
LFOS
4 LFO's with key sync per LFO
MODULATION
8-slot modulation matrix
ARPEGGIATOR
Programmable arpeggiator with up, down, up+down, random, assign modesSelectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter noteOne, two, or three octave rangeRe-latching arpeggiationNote repeat
CONTROLS
5-octave keyboard with semi-weighted action, velocity, and aftertouch52 knobs and 20 buttons enable deep and comprehensive editing with little to no menu diving.Spring-loaded pitch wheel and assignable mod wheel
MEMORY
512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program

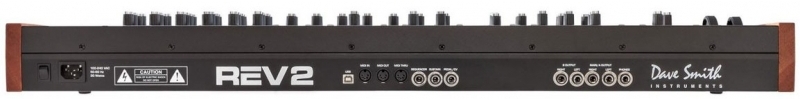

IN/OUT
MIDI In, Out, ThruMain stereo audio output: 1/4 unbalancedOutput B stereo audio output: 1/4 unbalancedSustain pedal input: accepts normally on or normally off momentary footswitch.Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).Headphone output: 1/4 stereo phone jack.
POWER
IEC AC power inlet for internal power supplyOperates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
PHYSICAL SPECS
Oiled African mahogany wood end panelsDimensions: 12.70 (32.26 cm) W x 35.12 (89.20 cm) L x 3.80 (9.65 cm) H (2.30 at front edge; the feet account for 0.25 of the total height)Weight: 20.5 lbs. (9.3 kg)
Write a review about the Sequential Prophet Rev2 - 16 Voice
![]()
5.0
Anthony Papadopoulos
Morin-Heights, QC
March 25, 2019
Fantastic Instrument
Very happy with the Rev 2. Probably the best synth I've touched for comfortable playability and expression. Really feels like an instrument and makes me want to play it all day long. Sound is incredible. Very fast and intuitive to create sounds and the result fits perfectly in my mixes with punch, clarity and presence especially in the mid range, which I find on some modern synths lacking.
Read more The control layout is very intuitive so didn't have to dig in the manual very much and every parameter is laid out in a logical order. Programming sounds is very easy and intuitive since every function has a knob so no menu diving. Overall it's instantly become a powerful workhorse in my studio and gives me the results i need fast.
