UPC/EAN #615104315471     MPN #508263

$779.00

Save 16.1%, MSRP $929.00
Financing available
Free shipping in Canada. Conditions

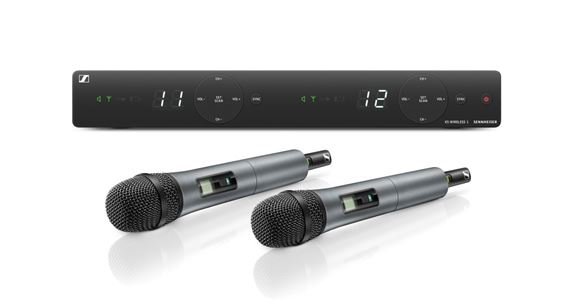

The Sennheiser XSW 1-825 Dual is a solid, reliable wireless transmission with up to 10 compatible channels in a stable UHF band



XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  • Antenna-switching 2-channel diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels
  • Dimensions: approx. 200 x 42 x 127 mm
    THD, total harmonic distortion: 0.9%
    Pick-up pattern: cardioid
    Signal-to-noise ratio: 103 dBA
    RF output power: 10 mW
    Switching bandwidth: up to 24 MHz
    Operating time: approx. 10 hrs
    Modulation: wideband FM
    Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
    Housing: rugged ABS housing
    Dynamic range: dynamic
    Frequency: 8 frequency banks, each with up to 10 factory-preset channels
    Frequency range: A: 548-572 MHz
    Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
    Squelch: djustable from 3 dBV to 28 dBV (combined with pilot tone)
    Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
    Input sensitivity: 1.5 mV / Pa
    Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
    Audio adjustment range: 45 dB, adjustable in 5-dB steps
    Line / Mic level: 20 dB, switchable
    Temperature Range: operation: 0°C to +40°C, storage: -20°C to +70°C
    Receiver Principle: double superheterodyne
    Diversity principle: Antenna switching diversity via internal antennas

    What's in the Box
  • 1 stationary receiver EM-XSW 1 Dual
  • 2 handheld transmitter SKM 825-XSW
  • 2 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries
  • View more products from Sennheiser
