Sennheiser XSW 1-825 Dual-A
UPC/EAN #615104315471
MPN #508263
$649.00 (Special)
Save $130.00, Regular $779.00
The Sennheiser XSW 1-825 Dual is a solid, reliable wireless transmission with up to 10 compatible channels in a stable UHF band

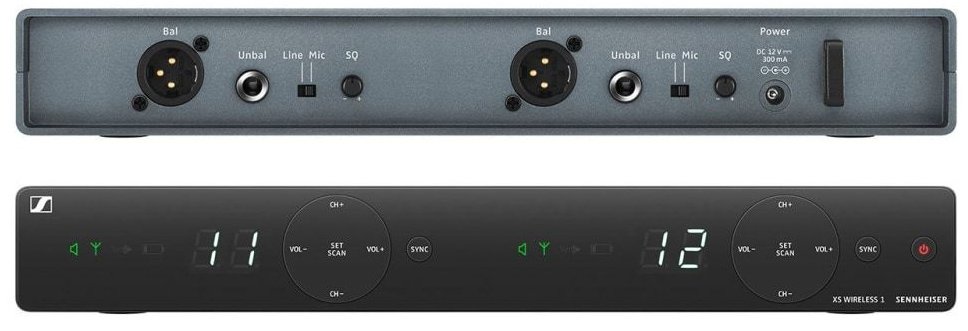

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
Features
Excellent live sound featuring Sennheiser's renowned evolution microphone capsulesAntenna-switching 2-channel diversity receptionIntegrated antennasAutomatic frequency management and synchronization via remote channel for easy setupSelectable UHF frequencies within a large bandwidthUp to 10 compatible channels
Specifications
Dimensions: approx. 200 x 42 x 127 mm
THD, total harmonic distortion: 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Dynamic range: dynamic
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range: A: 548-572 MHz
Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
Squelch: djustable from 3 dBV to 28 dBV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0C to +40C, storage: -20C to +70C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas

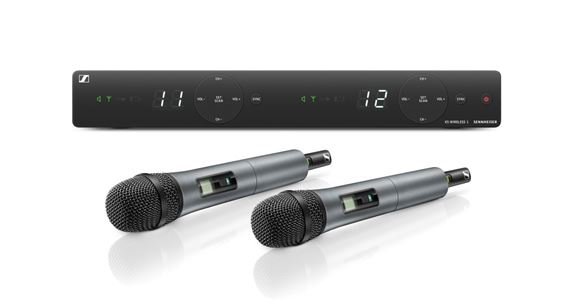

What's in the Box
1 stationary receiver EM-XSW 1 Dual2 handheld transmitter SKM 825-XSW2 microphone clamp MZQ 11 power supply NT 12-5 CW2 AA batteries
