Sennheiser Spectera Base Station

UPC/EAN #615104356572 MPN #509162

$12999.00

Save 15%, MSRP $15299.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

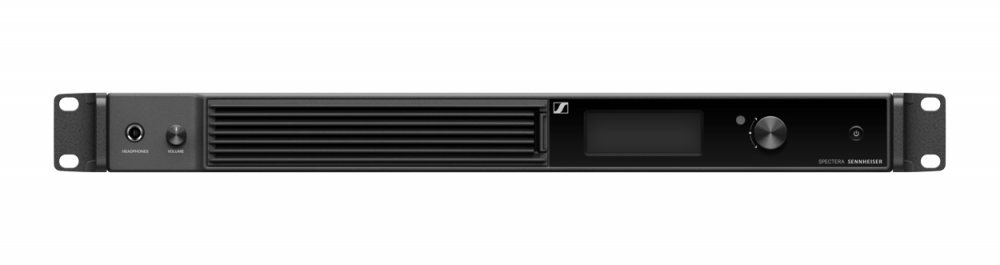

1RU rackmount Base Station for Spectera system, with (3) mains cables (EU, UK, US prongs)

The Base Station is a 1RU hardware device that provides up to 64 channels (32 in / 32 out) and utilizes up to two wideband RF carriers to accommodate all wireless transmission of the system. It features redundant Dante and optional redundant MADI, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity. The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with a License per region.

Features

19'' 1 RU Base Station with redundant power supplies

Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) " country specific per region license

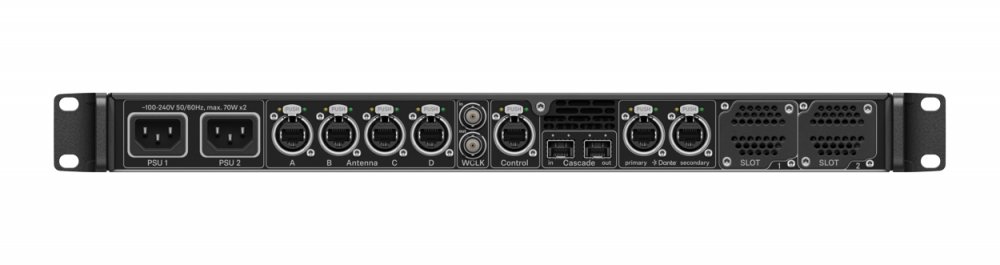

4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage

Redundant Dante audio interface

Two optional slots for redundant MADI (OM or BNC)

Sample rates of 48 kHz and 96 kHz

Individual sample rate converters for all audio interfaces

Wordclock I/O BNC

Synchronized clock for all audio over RF allows 3D recordings and playback

Adjustable RF power from 10 " 100 mW (country specific)

RJ45 network interface for full remote control with secured interface

11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM

Secure transmission of confidential content using AES 256 encryption

Future expansion via Cascade port

Selective headphone output with volume control on front panel

OLED display, jog wheel navigation, and rugged metal housing

Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)

Specifications

Delivery Includes:
(1) Spectera Base Station
(3) Mains Cable (EU, UK and US plug)

Reviews

No reviews. Be the first to write a review
