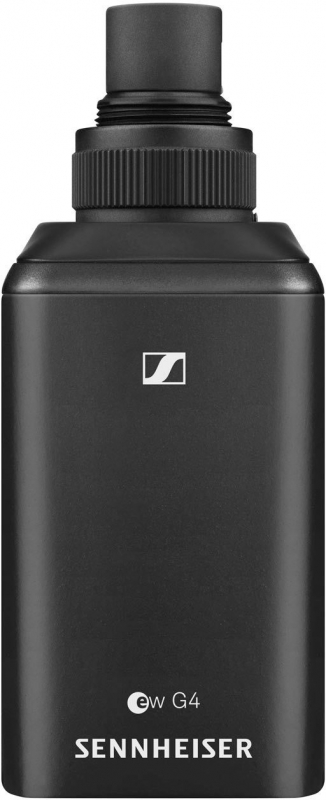

Sennheiser SKP 500 G4 (Aw+: 470-558 MHz)
UPC/EAN #615104364318
MPN #509545
$649.00
Save 18.8%, MSRP $799.00
Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems.
For professional film productions.
Features
Professional sound and excellent construction qualityEasy to use and fast setup timeEasy and flexible wireless synchronisation between transmitter and receiver via infraredUp to 88 MHz bandwidth, up to 32 channelsRange: up to 100 meters / 330 feetIncreased RF output power (10/30/50 mW)Up to 8 hours of operation timeWith 48 V phantom powering
Specifications
Frequency range: Aw+: 470-558 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight (incl. batteries): approx. 160 g
Signal-to-noise ratio: 115 dBA
RF output power (switchable)
Low: typ. 10 mWStandard: typ. 30 mWHigh: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
At nominal voltage: typ. 180 mAWith transmitter switched off: 25 A
Input impedance: 40 k, unbalanced / 1 M
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequenciesAdjustable in 25 kHz steps20 frequency banksEach with up to 32 factory-preset channelsNo intermodulation6 frequency banks with up to 32 programmable channels
AF frequency response
Mic: 80 - 18,000 HzLine: 25 - 18,000 Hz
Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm
What's in the box
SKP 500 G4 pro plug-on transmitter2 AA batteriesPOP 1 pouch with belt clipquick guidesafety guidemanufacturer declaration sheet
