Sennheiser SKM 500 G4 (Aw+: 470-558 MHz)
UPC/EAN #615104368965
MPN #509784
$579.00
Save 14.7%, MSRP $679.00

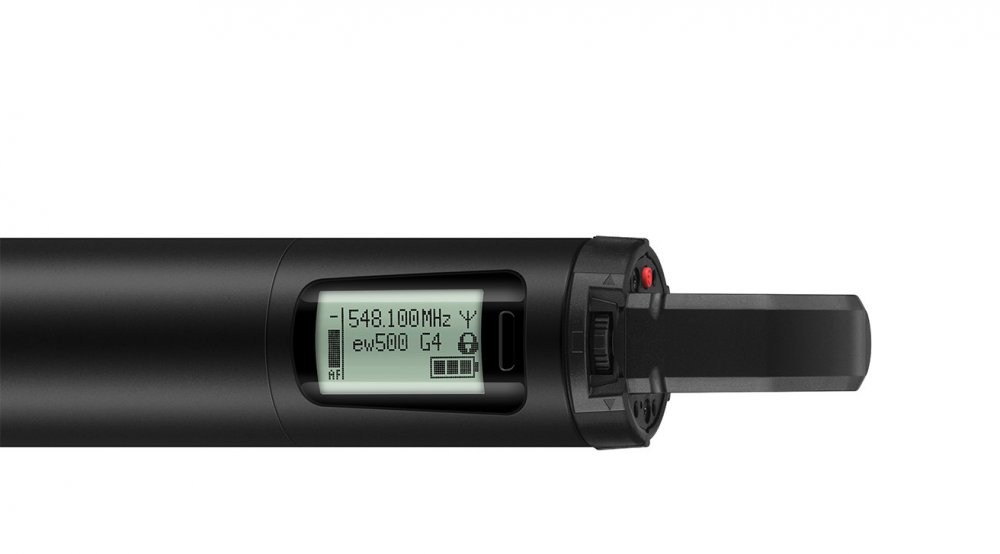

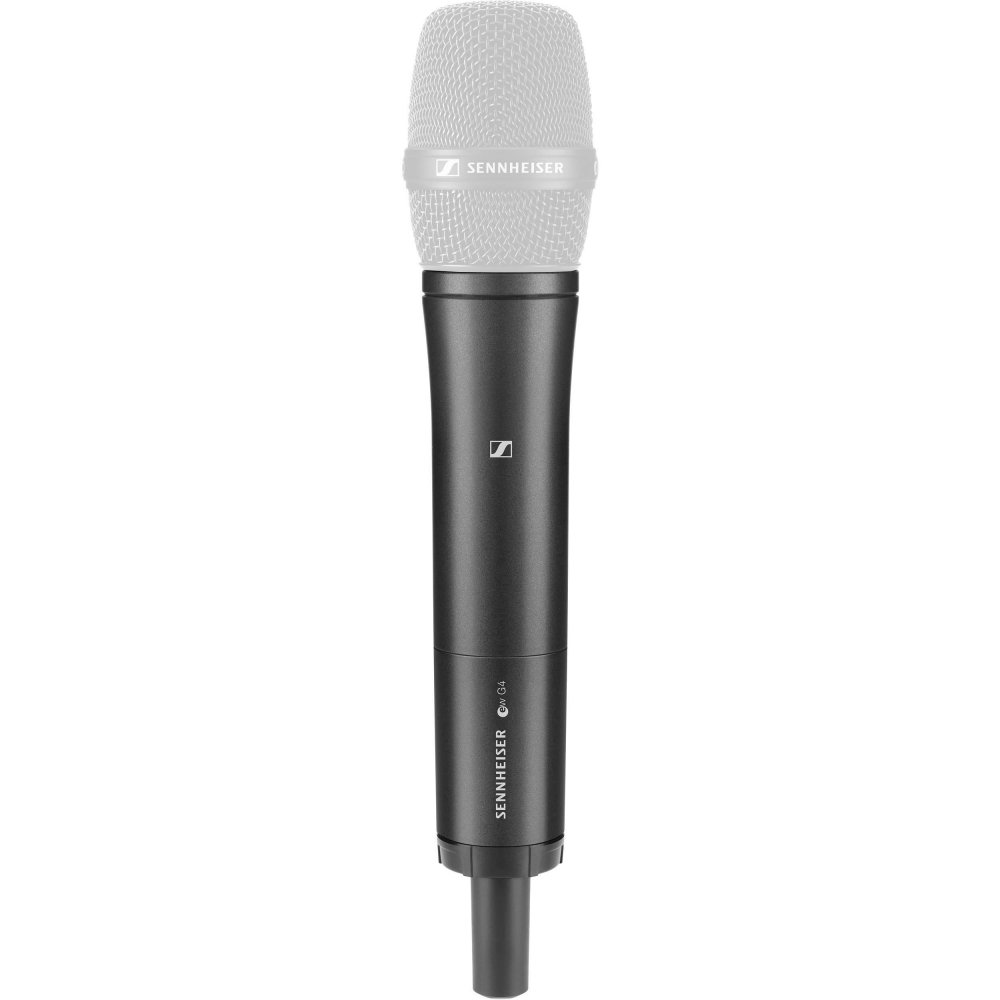

Wireless handheld transmitter with no mic capsule for EW 500 G4 series
Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world's biggest live stages. For evolution wireless G4 500 Series systems.
Features
Your choice of Sennheiser?s renowned state-of-the-art e 935, e 945, e 965 capsulesEasy and flexible wireless synchronization between transmitter and receiver via infraredUp to 32 compatible channelsUp to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF rangeEthernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setupsHigh RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Specifications
Frequency range
Aw+: 470 - 558 MHz
Dimensions
Approx. Ø 50 x 265 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
? 0.9 %
Weight
(incl. batteries) approx. 450 g
Signal-to-noise ratio
? 115 dBA
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 88 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ? 25 ?A
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response
80 " 18,000 Hz
Temperature Range
-10 C to +55 C
Frequency stability
? ±15 ppm
