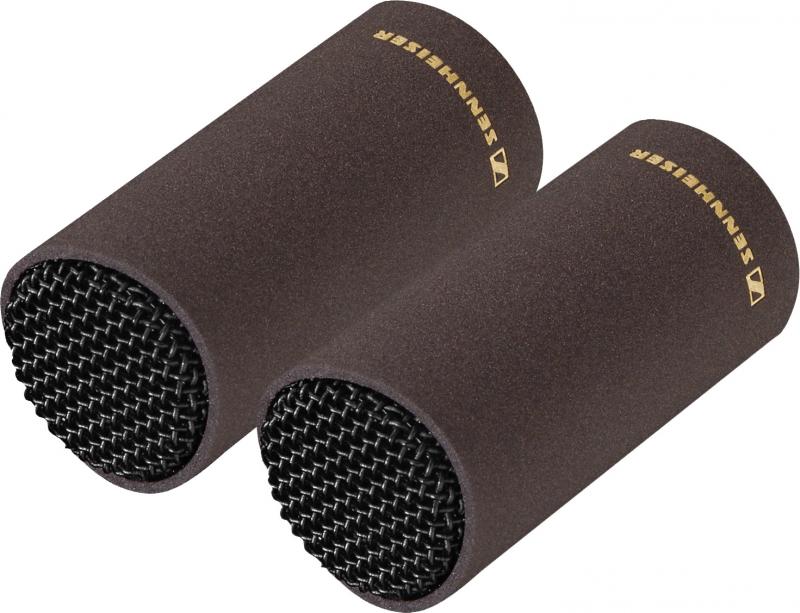

Outstanding omni-directional instrument microphone. Ideal as a main mic for "spaced pair" and "Decca Tree" recordings or the use in an OSS "Jecklin Disk" array. Stereo Set.
The omni-directional MKH 8020 is ideal for recording large and small sound sources, for a "Decca Tree" or for use in an OSS "Jecklin Disk" array. As it does not suffer from a proximity effect, it is also a good choice for close-miking. If the acoustic ambience is right, this microphone will provide very impressive recordings. The extra octave at the bottom end makes the MKH 8020 perfect for recording pipe organs, grand piano and acoustic double-bass.
Onmi-directional pick-up patternModular designWide frequency response 10 to 60.000 HzSymmetrical transducer with 2 backplates providing extremly low distortionExtremly low inherent self-noiseAccurate directional patternNon reflective Nextel coatingIdeal for stereo and surround recordings, as an M microphone and for ambience
Frequency response: 10 - 60.000 HzAudio output: XLR-3M balanced, transformerless, floatingSensitivity in free field, no load (1kHz): 31 mV/Pa (- 30 dBV/Pa)Nominal impedance: 25Min. terminating impedance: 1000Phantom powering: 48 V +/- 4VEquivalent noise level: 10 dB(A)Equivalent noise level weighted as per CCIR 468-3: 21 dBMaximum sound pressure level (passiv): 138 dB SPLCurrent consumption: 3,3 mA
GTIN (UPC/EAN) : 615104262973
Manufacturer Part Number : 506288
