Sennheiser EW-DX SK-SKM-S Base Set (R1-9: 520 - 607.8 MHz)
UPC/EAN #615104372306
MPN #509463
$2600.00
Save 14.7%, MSRP $3049.00
Digital wireless base set with dual channel receiver, one handheld transmitter without capsule, and one bodypack transmitter
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser's Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.
Flexibility for Those Who Want to Choose the Capsule That Best Meets Their Needs.
Base Set for digital wireless applications featuring 2-channel receiver, handheld and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphone heads.
Features
134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledgeNetwork enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in 2023) and 3rd party media control systems via plug-inRemote control via Smart Assist App over Bluetooth Low Energy (BLE) at distances up to 25 meters (Available in 2023)Secure transmission of confidential content using AES 256 encryptionUp to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)Function buttons - control all the transmitter settings directly from the handheld and bodypack including button lock functionPersistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteriesEquidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channelsUp to 88 MHz switching bandwidthLow latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)Digital audio trimTransmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection (sold separately)Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)Worldwide usage (specific frequencies subject to local RF regulation)
Specifications
System
Audio link frequency ranges:
Q1-9: 470.2 - 550 MHz
R1-9: 520 - 607.8 MHz
S1-10: 606.2 - 693.8 MHz
S2-10: 614.2 - 693.8 MHz
S4-10: 630 - 693.8 MHz
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4: 925.2 - 937.3 MHz
V5-7: 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz
Y1-3: 1785.2 - 1799.8 MHz
Bluetooth Low Energy (BLE) frequency range: 2405 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Total harmonic distortion (THD): ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System Latency: 1.9 ms
RF technology: Intelligent Switching Diversity
Operating temperature: -10 C - +55 C (14 F - 131 F)
Operating relative humidity: 5 - 95 % (non-condensing)
EW-DX EM 2 (Rack Receiver)
Input voltage range: 11 - 13 V " or PoE IEEE 802.3af Class 0
Input Current: ? 1A
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Ethernet:
RJ-45 socket, IEEE802.3
100Base-TX (half+full duplex)
10Base-T (half+full duplex)
(CAT5e or higher)
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)
EW-DX SKM (Handheld Transmitter)
Input voltage: 2.0 - 4.35 V
Input Current: ? 300 mA
Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated):
Audio link: 10 mW ERP
(Range Y1-3): 12 mW ERP
LD mode: 10 mw ERP
BLE: max. 10 mW EIRP
Dimensions:
50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)
Weight w/o batteries:
approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)
EW-DX SK (Bodypack Transmitter)
Input voltage: 2.0 - 4.35 V
Input Current: ? 300 mA
Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated):
Audio link: 10 mW ERP
(Range Y1-3): 12 mW ERP
LD mode: 10 mw ERP
BLE: max. 10 mW EIRP
Dimensions:
63 x 80 x 20 mm (without antenna)
Weight:
approx. 120 g (without batteries)

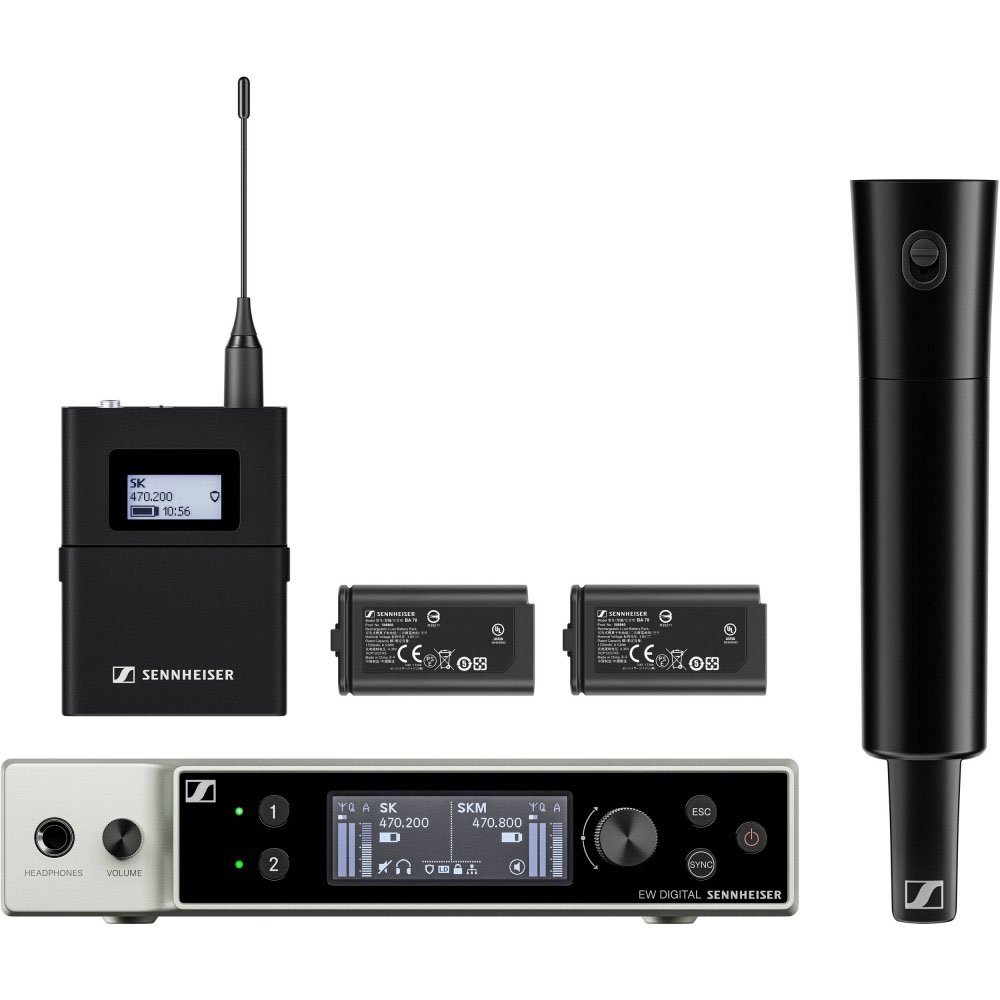

What's in the Box:
EW-DX EM 2 rack receiver
EW-DX SKM-S handheld transmitter
EW-DX SK bodypack transmitter
EW-D Power Supply with country adapters
2 BA 70 rechargeable battery packs
MZQ 1 microphone clamp
2 rod antennas
GA 3 rack mount Kit
4 rubber feet
