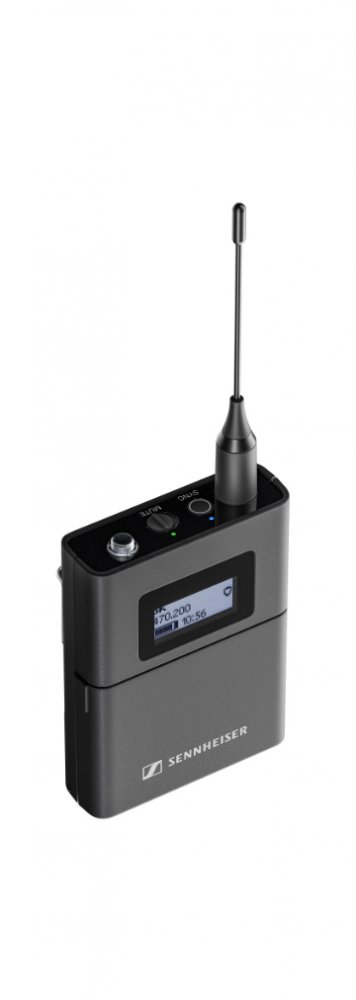

Sennheiser EW-DX SK (R1-9: 520 - 607.8 MHz)
UPC/EAN #615104362109
MPN #509385
$604.00
Save 13.6%, MSRP $699.00
Digital wireless bodypack transmitter with 3,5mm jack and AA batteries
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. AutoScan quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser?s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.
Features
134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)10mW fixed RF power for up to 100 m/328 ft of rangeCharging contacts for in-device charging with CHG 70N charger (sold separately)Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteriesUp to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)Function buttons - control all the transmitter settings directly from bodypack including button lock functionProgrammable mute switch - RF mute, AF mute or disabledDigital audio trimMic input trim controlTest tone generatorSwitchable LED configuration (On/Off)Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)Instrument input with cable emulation to simulate cable characteristicsVersatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connectionMetal housingWorldwide usage (specific frequencies subject to local RF regulations)Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.
Specifications
System
Audio link frequency ranges
Q1-9: 470.2 - 550 MHz
R1-9: 520 - 607.8 MHz
S1-10: 606.2 - 693.8 MHz
S2-10: 614.2 - 693.8 MHz
S4-10: 630 - 693.8 MHz
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4: 925.2 - 937.3 MHz
V5-7: 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz
Y1-3: 1785.2 - 1799.8 MHz
Bluetooth Low Energy (BLE) frequency range: 2405 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
THD, total harmonic distortion: ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System Latency: 1.9 ms
RF technology: Intelligent Switching Diversity
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity: 5 - 95 % (non-condensing)
EW-DX SK (Bodypack Transmitter)
Input voltage: 2.0 - 4.35 V
Input Current: ? 300 mA

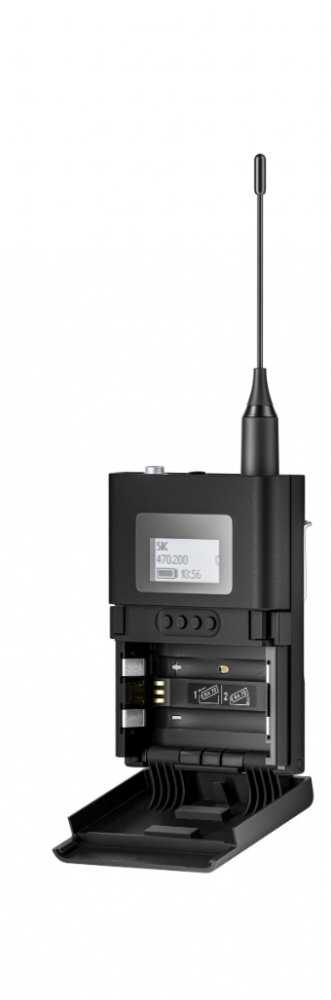

Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated):
Audio link: 10 mW ERP (Range Y1-3): 12 mW ERP LD mode: 10 mw ERP BLE: max. 10 mW EIRP
Dimensions: 63 x 80 x 20 mm (without antenna)
Weight: approx. 120 g (without batteries)
What's in the Box:
EW-DX SK bodypack transmitter

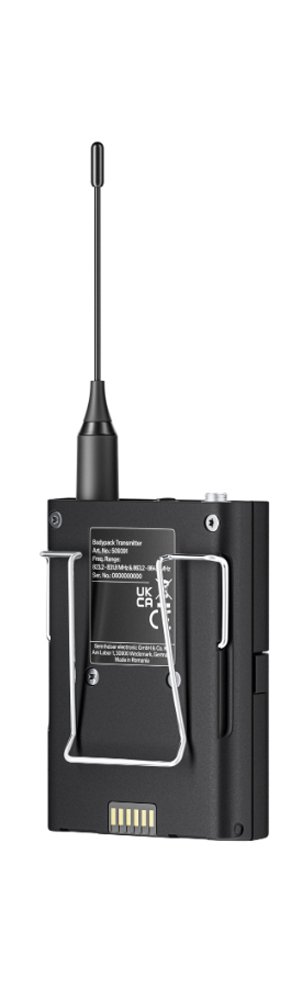

Belt clip
2 Batteries (AA)
