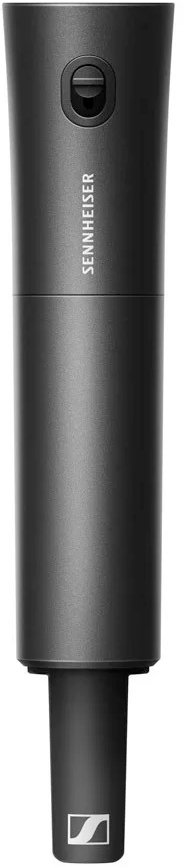

Sennheiser EW-D SKM-S (Q1-6: 470-526 MHz)
UPC/EAN #615104336575
MPN #508790
$389.95
Save 18.6%, MSRP $479.00
Rugged and versatile handheld transmitter for use with Evolution Wireless Digital receivers. Microphone module not included
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This handheld transmitter is compatible with a wide range of Sennheiser and Neumann microphone capsules.
Features
Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalabilitySmart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distanceAuto scan creates reliable connections with minimal time and effort134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detailElimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels2,240 selectable frequencies allow for fine tuningLithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Specifications
Frequency range
823.2 - 831.8 MHz & 863.2 - 864.8 MHz
1785.2 - 1799.8 MHz
552 - 607.8 MHz
630 - 662 MHz
925.2 - 937.3 MHz
662 - 693.8 MHz
606.2 - 662 MHz
520 - 576 MHz
470.2 - 526 MHz
THD, total harmonic distortion
? -60 dB for 1 kHz @ -3 dBfs input level
Weight
approx. 304 g (incl. MMD 835 microphone module)
approx. 195 g (without microphone module)
Operating temperature
-10 C - +55 C (14 F - 131 F)
Power supply
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack
Current consumption
< 300 mA
Input voltage range
2.0 - 4.35 V
Transmission power
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP
Operating relative humidity
5 - 95 % (non-condensing)
Audio frequency response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Dimensions
50 x 268 mm (incl. MMD 835 microphone module)
40 x 200 mm (without microphone module)
Set includes:
. (1) EW-D handheld transmitter
. (1) MZQ 1 microphone clamp
. (2) AA batteries
