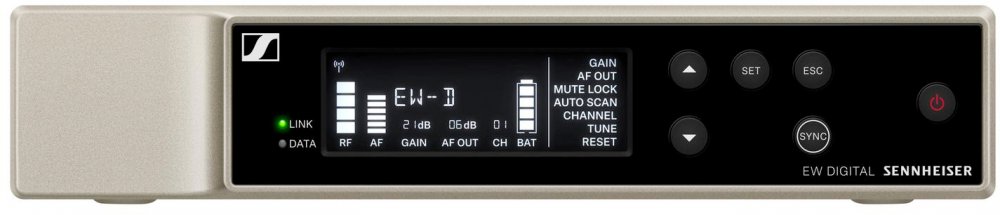

Sennheiser EW-D EM (R1-6: 520-576 MHz)
UPC/EAN #615104336735
MPN #508801
$389.95
Save 18.6%, MSRP $479.00
1/2 19" rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters
Setting a new standard
Where there once were limitations, there are now opportunities. Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system on the market, automatically securing the most reliable signal in a matter of seconds. And it doesn't stop there; scalable up 90 channels with latency that is practically non-existent.
Previously only found in our higher-end Digital 6000 and Digital 9000 wireless systems, an equidistant tuning grid equally spaces frequencies alongside each other, replacing the need for RF coordination or wireless expertise of any kind. Along with that comes the elimination of intermodulation dropouts and an easier-to-use system overall.
An engineer in your pocket
The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of an automated setup, remote monitoring and mobile access to every system setting, all from the convenience of your Android or iOS device. Save time, save energy, and focus on your performance.
Features
Digital wireless eliminates noise, interference and static burstsUHF transmission greatly enhances range, reliability and scalabilityMobile App streamlines setup and operation and eliminates complicated menuAutomated setup creates reliable connections with minimal time and effortUp to 2,240 selectable frequencies support up to 24 wireless systems per frequency range56 MHz Bandwidth will allow for up to 90 channelsPreserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
Specifications
Frequency range : 520 - 576 MHz
Dimensions : 212 x 44 x 189 mm
THD, total harmonic distortion : -60 dB for 1 kHz @ -3 dBfs input level
Weight : approx. 1000 g (without antennas and power supply)
Current consumption : 300 mA
Input voltage range : 11 - 13 V
Transmission power : BLE: max. 10 mW EIRP
Operating relative humidity : 5 - 95 % (non-condensing)
Audio frequency response : 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio output level : 18 dBu max.
