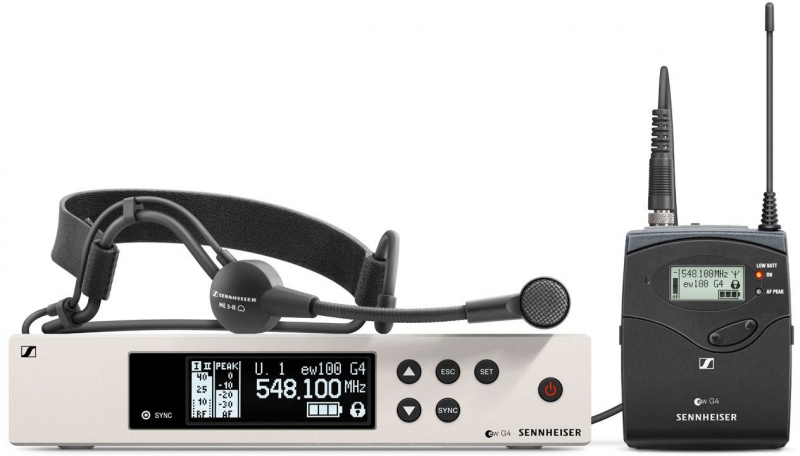

Sennheiser EW 100 G4-ME3 (A: 516-558 MHz)
UPC/EAN #615104366473
MPN #509645
$1050.00
Save 14.6%, MSRP $1229.00
Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast,
Simultaneous setup of up to 12 linked systems.
For hands-free operation during performances and speeches: Robust bodypack transmitter and feedback resistant headmic ME 3-II with high speech intelligibility for daily use on stage.
Features
Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.Robust bodypack transmitter and feedback resistent headmic ME 3-II with high speech intelligibility for daily use on stageTrue diversity half-rack receiver in a full-metal housing with intuitive LCD display for full controlEasy and flexible wireless synchronization between transmitter and receiver via infraredFast frequency allocation for up to 12 receivers via new linking functionalityUp to 20 compatible channelsUp to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF rangeTransmission Range: up to 100 meters / 300 feetHigh RF output power (up to 30 mW) depending on country regulations
Specifications
EM 100 G4
Frequency range: A: 516-558 MHz
Dimensions: Approx. 190 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Signal-to-noise ratio: 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC
Antenna connector: 2 BNC sockets
Current consumption: 300 mA
Adjacent channel rejection: Typically 65 dB
Intermodulation attenuation: Typically 65 dB
Receiving frequency
Max. 1680 receiving frequenciesAdjustable in 25 kHz steps 20 frequency banksEach with up to 12 factory-preset channelsNo intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity: < 2.5 V for 52 dBA eff S/N
Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBV
Equalizer:
Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10 C to +55 C
Receiver Principle: True diversity
Blocking: 70 dB
SK 100 G4
Frequency range:
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight (incl. batteries): approx. 160 g
Signal-to-noise ratio: 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation :±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: 25 µA
Input impedance: 40 k, unbalanced / 1 M
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequenciesAdjustable in 25 kHz steps 20 frequency banksEach with up to 12 factory-preset channelsNo intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
Mic: 80 - 18,000 HzLine: 25 - 18,000 Hz
Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm
ME 3
Connector: 3.5 mm jack
Sound pressure level (SPL): 150 dB SPL
Cable length: approx. 1.60 m
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: cardioid
Sensitivity: 1.6 mV/Pa
Temperature Range: -10 C to +55 C
