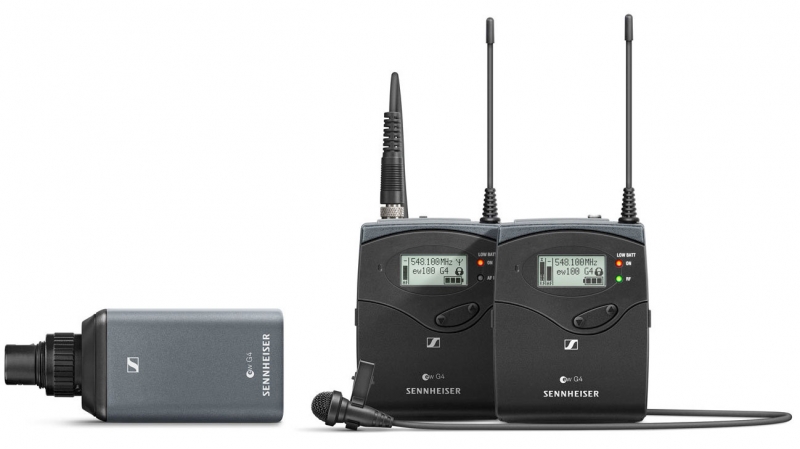

Sennheiser EW 100 ENG G4 (A: 516-558 MHz)
UPC/EAN #615104363755
MPN #509515
$999.00 (Special)
Save $176.00, Regular $1175.00
A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.
A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Multi-purpose set for mobile journalism and documentary. The powerful plug-on transmitter SKP 100 turns every wired dynamic microphone into a wireless transmitter while the easy to use clip-on microphone ME 2-II (omni-directional) offers excellent speech intelligibility during interviews.
Features
Rugged all-in-one wireless system with high flexibility for broadcast quality soundExcellent sound and construction qualityEasy to use and fast setup timePowerful and reliable wireless transmissionRange: up to 100 meters / 330 feetUp to 8 hours of operation time
Specifications
EK 100 G4
Frequency range: A: 516 - 558 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight (incl. batteries): approx. 160 g
Audio output: 3.5 mm jack socket, +12 dBu (mono, unbalanced)
Signal-to-noise ratio: 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: 48 kHz
Nominal deviation: 24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with receiver switched off: 25 A
Adjacent channel rejection: 65 dB
Intermodulation: attenuation 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity: < 1.6 V for 52 dBA eff S/N
Squelch
Low: 5 dBµVMiddle: 15 dBµVHigh: 25 dBV
Temperature Range: -10 C to +55 C
Receiver Principle: Adaptive diversity
Blocking: 70 dB
SK 100 G4
Frequency range:
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight (incl. batteries): approx. 160 g
Signal-to-noise ratio: 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation :±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: 25 µA
Input impedance: 40 k, unbalanced / 1 M
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequenciesAdjustable in 25 kHz steps 20 frequency banksEach with up to 12 factory-preset channelsNo intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
Mic: 80 - 18,000 HzLine: 25 - 18,000 Hz
Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm
SKP 100 G4
Dimensions: Approx. 105 x 43 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 195 g
Signal-to-noise ratio: 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: 25 µA
Input impedance: 68 k, unbalanced
Max. Input voltage: 3.3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency:
Max. 1680 transmitting frequenciesAdjustable in 25 kHz steps 20 frequency banksEach with up to 12 factory-preset channelsNo intermodulation 1 frequency bank with up to 12 programmable channelsAF frequency: response 80 - 18,000 Hz
Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm
